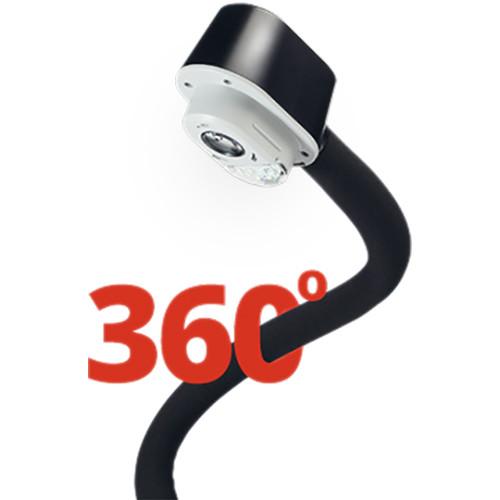

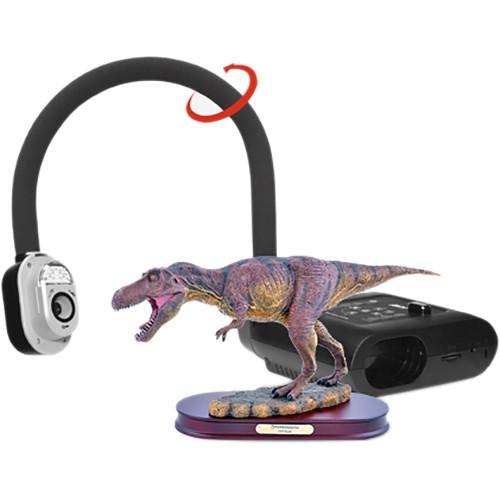

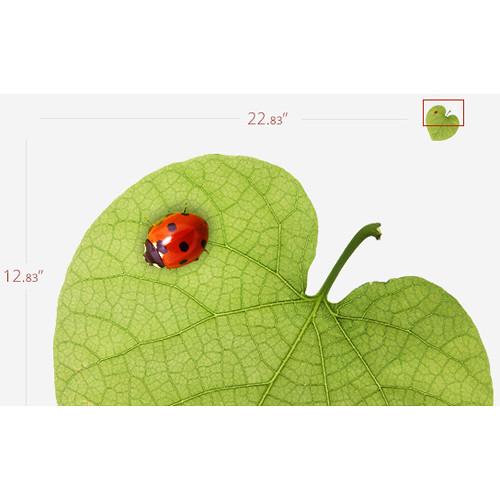

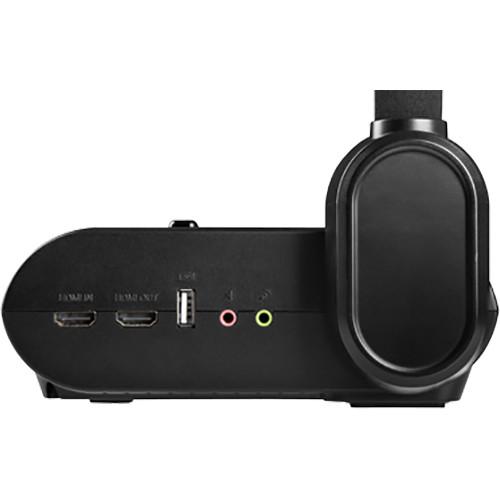

Product description The F17-8M 8MP Portable Document Camera from AVer features an 8MP sensor and 27.2x digital zoom that displays a large shooting area of 22.83 x 12.83". You can connect to the HDMI or VGA input and output to your projector, monitor, or computer. The flexible gooseneck allows you to see details from any angle. You can use AVer's Sphere2 and ClassSend Software Suite to create, collaborate, upload, and share documents and materials through websites such as YouTube, Google Drive, and Dropbox. - HDMI or VGA input and output
UPC: 848090004948 In the Box AVer F17-8M 8MP Portable Document Camera 3' USB Cable (Mini Type) RGB Cable 12V / 2A Power Adapter Remote Control (Including Batteries) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVer F17-8M 8MP Portable Document Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

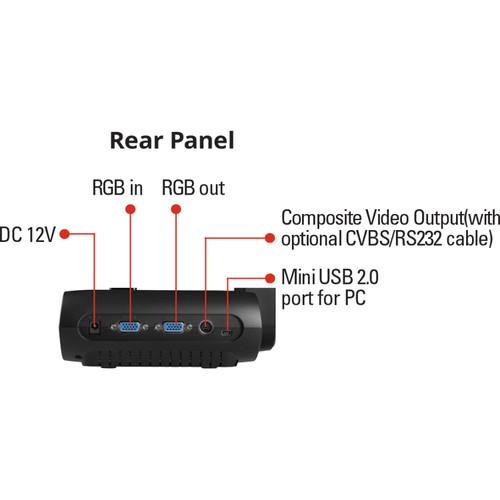

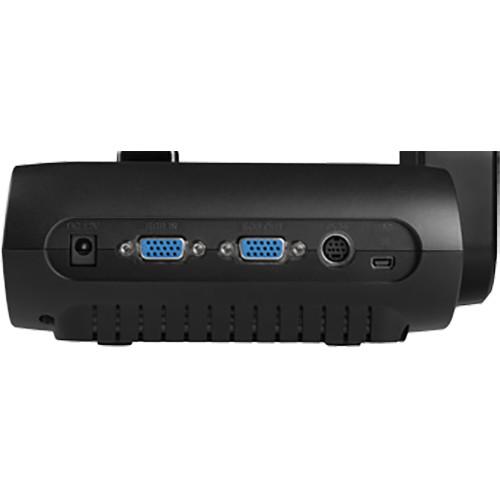

Technical parametersAVer VISIF178M Specs | | | Sensor | 1/3.2" CMOS | | Sensor Resolution | 8 MP | | Zoom | 27.2x (Digital) | | Frame Rate | 30 fps | | Effective Pixels | 3840 x 2160 | | Output Resolution | 1920 x 1080 | | | | Capture Area | 22.8 x 12.8" / 580 x 326 mm | | Video Connections | 1 x HD15 VGA Input
1 x HD15 VGA Output
1 x HDMI Input
1 x HDMI Output | | Audio Connections | 1 x 1/8" / 3.5 mm Microphone Input | | I/O Connections | 1 x USB (Unspecified Version) Type-A
1 x USB 2.0 Mini-B | | I/O Connections | 1 x USB Type-A USB (Unspecified Version)
1 x USB Mini-B USB 2.0 | | Media Card Slots | SD/SDHC | | Image Storage | 240 Images | | | | Built-In LED Lighting | Yes | | Focus Modes | Auto, Manual | | Exposure Modes | Auto, Manual | | Image Capture Modes | Single, Continuous | | White Balance | Auto, Manual | | Remote Control | Yes | | Whiteboard Compatibility | Yes | | | | Operating System Support | ChromeOS, Windows, macOS/OS X | | | | Power Source | Power Adapter | | Power Consumption | 12.8 W (Lamp On)
12 W (Lamp Off) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 2 A | | | | Dimensions | 7.9 x 20.7 x 15.0" / 200.0 x 525.0 x 380.0 mm (In-Use)
9.0 x 2.9 x 12.0" / 230.0 x 73.0 x 305.0 mm (Folded) | | Weight | 5.5 lb / 2.5 kg | | | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 17.5 x 11.7 x 5.6" |
