User Manual for AVerMedia AVerCaster SE510 Video Capturing and Live Streaming Solution Click to enlarge the picture
Contents of the user manual for the AVerMedia AVerCaster SE510 Video Capturing and
- Product category: Streaming Media Solutions AVerMedia
- Brand: AVerMedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVerMedia Streaming Media Solutions
 |
User manual for the AVerMedia AVerCaster SE510 Video Capturing and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVerMedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVerMedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVerMedia product will considerably shorten its lifespan!
|

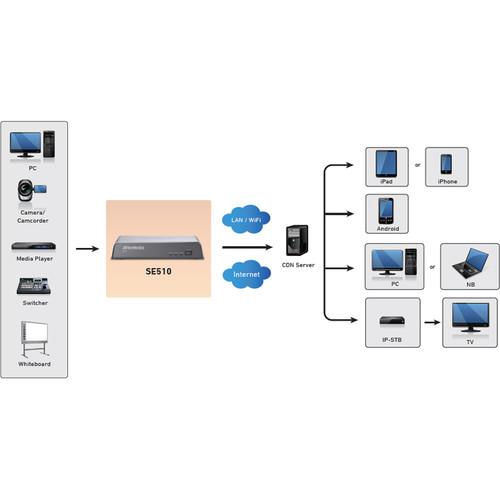

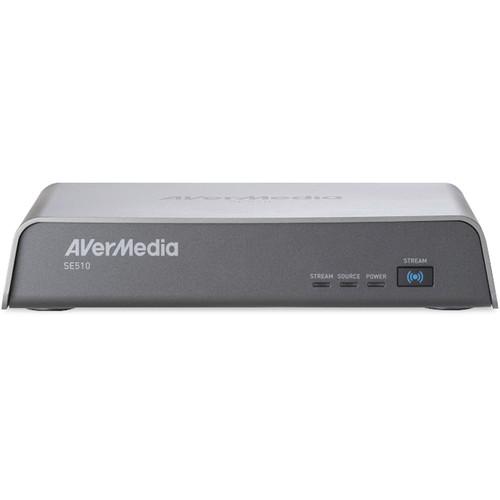

Product description The AVerCaster SE510 Video Capturing and Live Streaming Solution from AVerMedia offers one-click streaming, which allows sharing of live events and video streaming through a wired or wireless Internet connection. It can encode and stream high-quality videos to any content delivery network (CDN) such as Ustream and Wowza.The AVerCaster SE510 supports RTMP Publish as well as HLS Pull-Mode (Preview mode). It also supports applications and web administration on tablets, notebooks, and other mobile devices for easy management and operation by broadcasters. - 1-click start/stop streaming
- HDMI/CVBS pass-through for real-time previewing
UPC: 795522964724 In the Box AVerMedia AVerCaster SE510 Video Capturing and Live Streaming Solution 12V/1.5A Power Adapter RCA Cable Utility CD Table of Contents
|
Upload User Manual
Have you got an user manual for the AVerMedia AVerCaster SE510 Video Capturing and Live Streaming Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

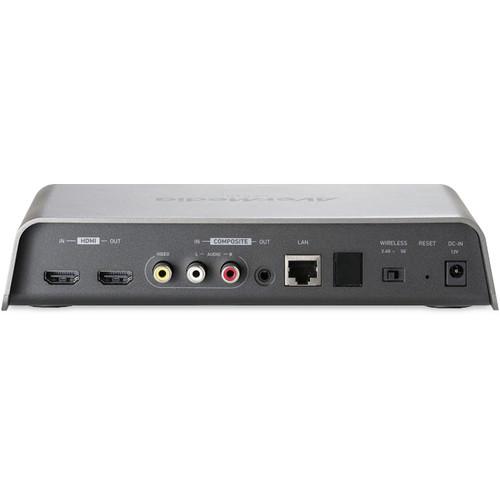

Technical parametersAVerMedia SE510 Specs | Inputs | 1 x HDMI
Composite (CVBS) with RCA L/R audio | | Input Video Formats | Auto-detection

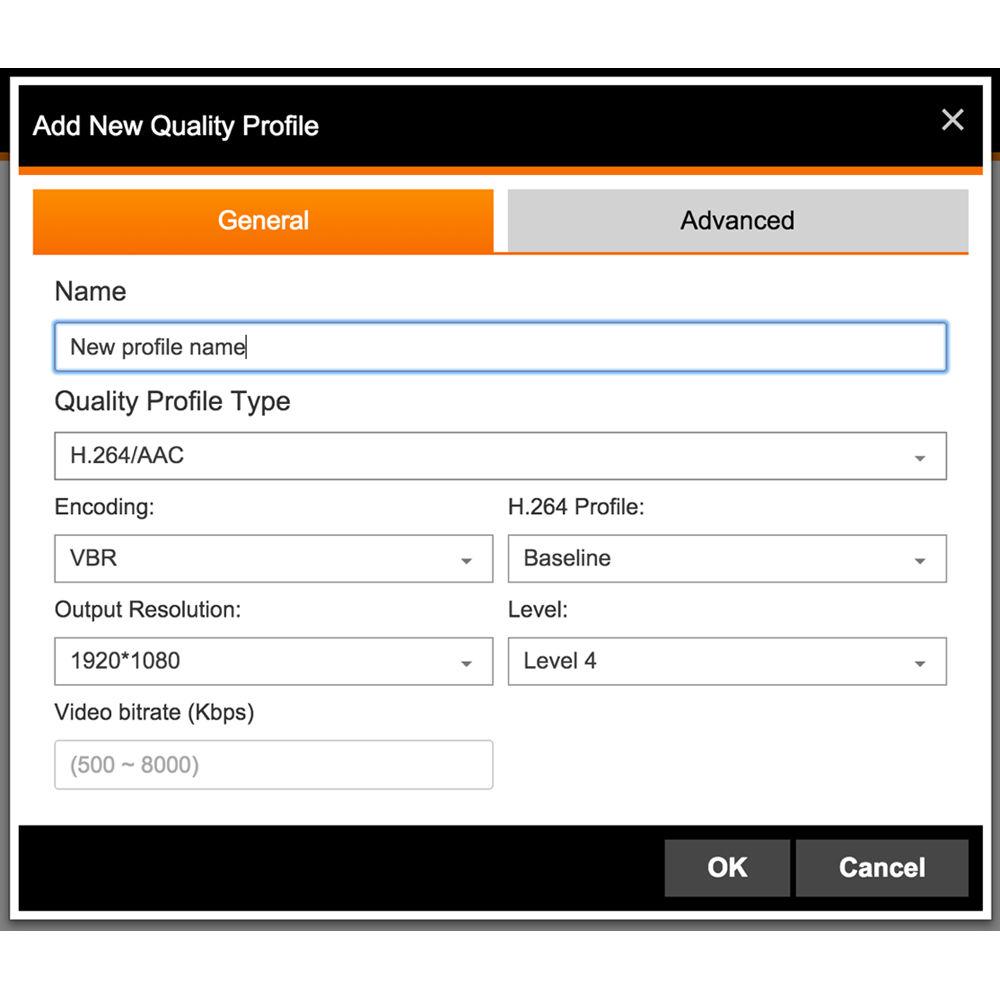

480i, 480p, 576i, 576p, 720p 24/25/50/60, 1080i 50/60, 1080p 24/25/30 | | Encoding Formats | H.264 High/Main/Baseline profile
Resolution up to 1920 x 1080
Bit Rate: 500 kbps to 8 Mb/s | | Audio Formats | Encoded: AAC-LC mono/stereo
Bit Rate: 64 to 512 kbps | | Streaming Protocols | RTMP publish

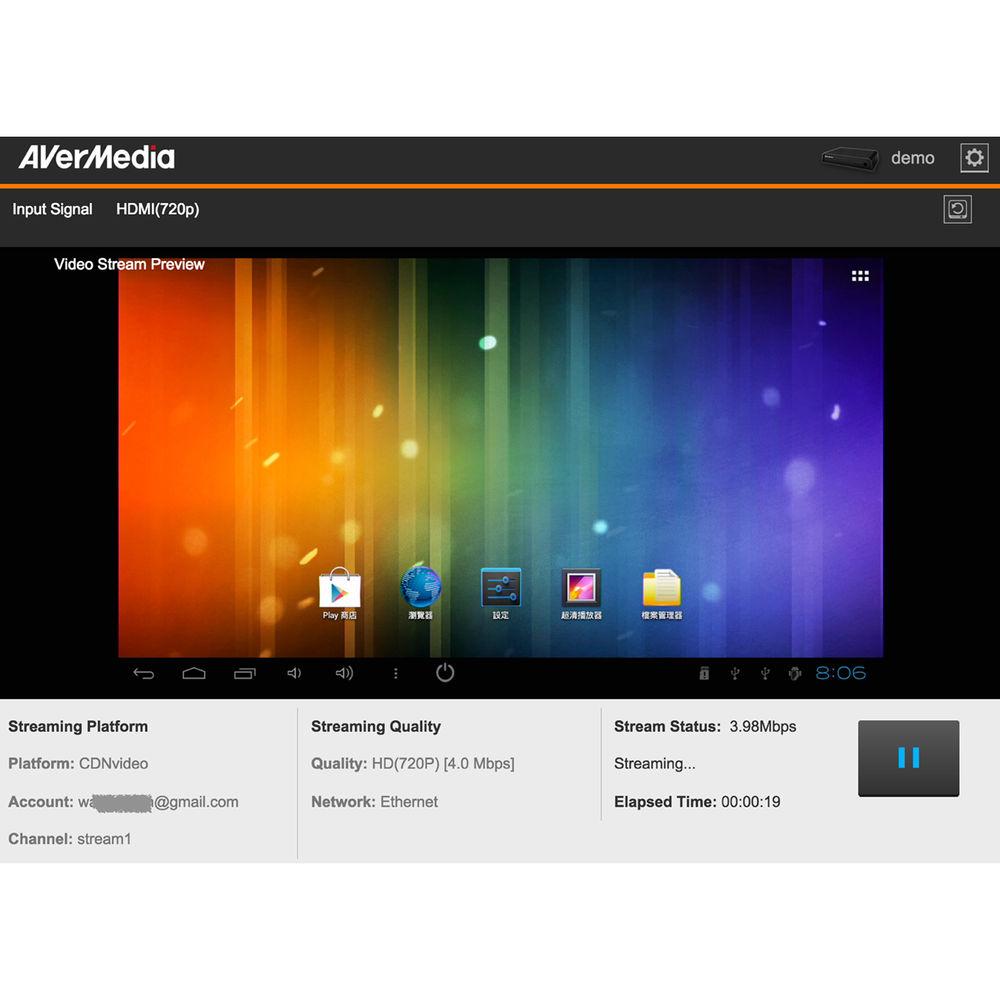

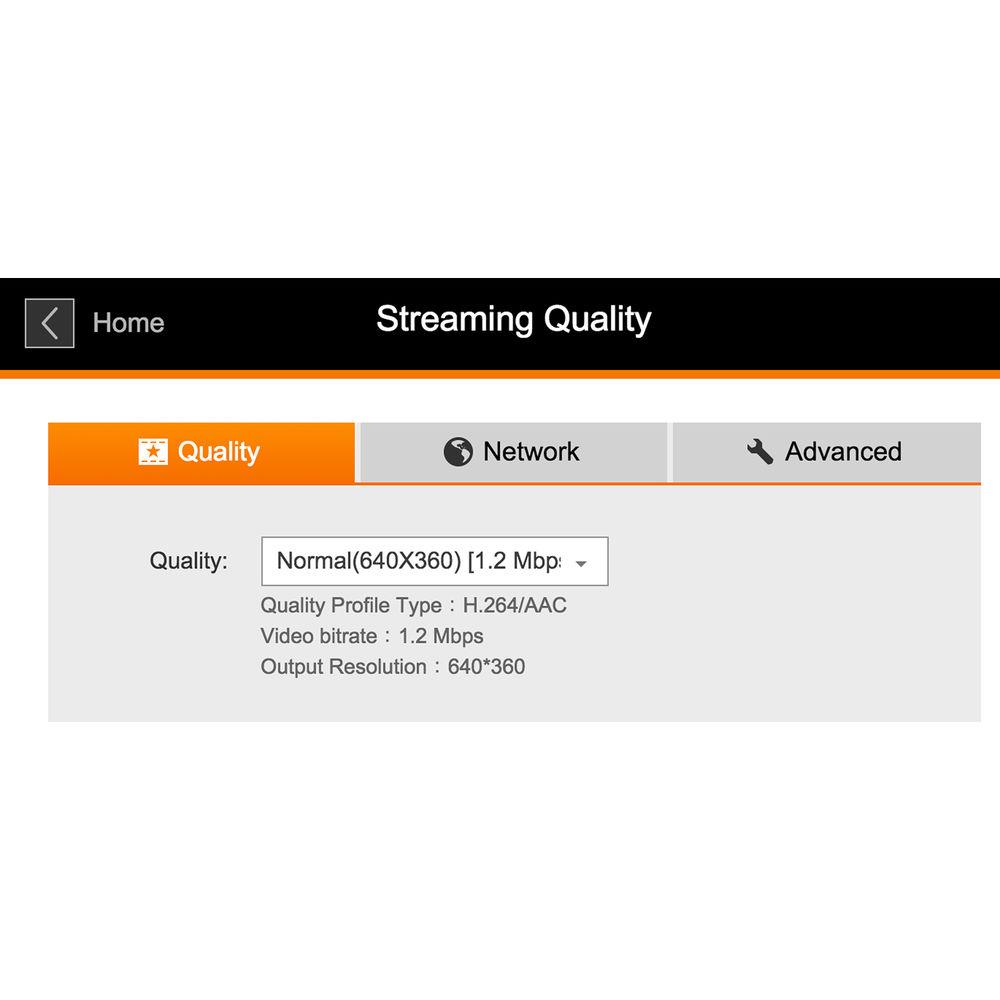

HLS pull-mode (for preview) | | Administration | Web UI supporting IE, Firefox, Safari, Chrome browser

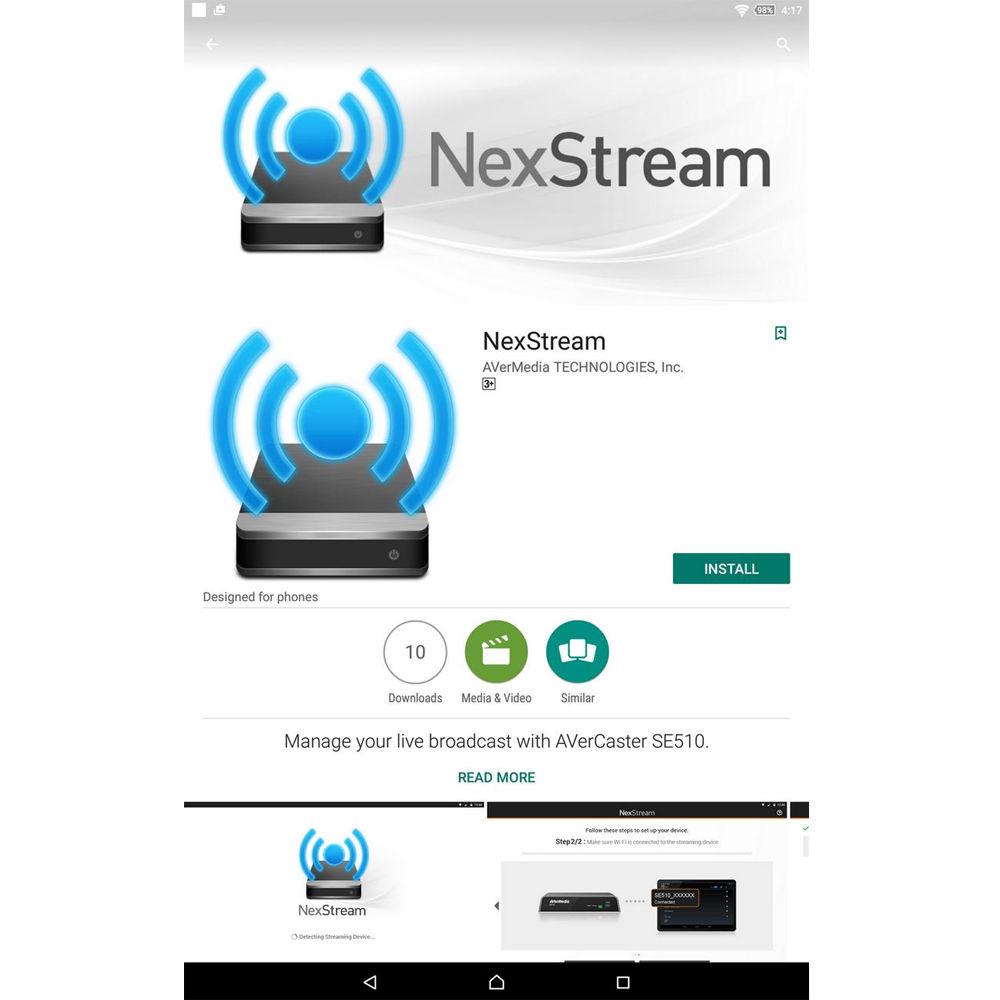

Finder APP supporting iPad, Android Pad, Windows, Mac OS
HTTP+JSON API for integration and remote control | | Supported Software | VLC Media Player for Windows, Linux, or Mac
AVerMedia CMS & AVerReceiver
Wowza
Adobe Media Server | | Wi-Fi | 802.11 a/b/g/n, 2.4 GHz/5 GHz
Access point and client mode simultaneously | | Power | 12 V/1.5 A
18 W maximum | | Operating Environment | Temperature: 32 to 122°F (0 to 50°C)
Humidity: 0 to 80% RHNC | | Storage Environment | Temperature: -22 to 149°F (-30 to 65°C)
Humidity: 0 to 90% RHNC | | Dimensions (L x W x H) | 8.58 x 5.19 x 1.69" (218 x 132 x 43 mm) | | Weight | 13.4 oz (380 g) | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 12.5 x 8.3 x 2.6" |
