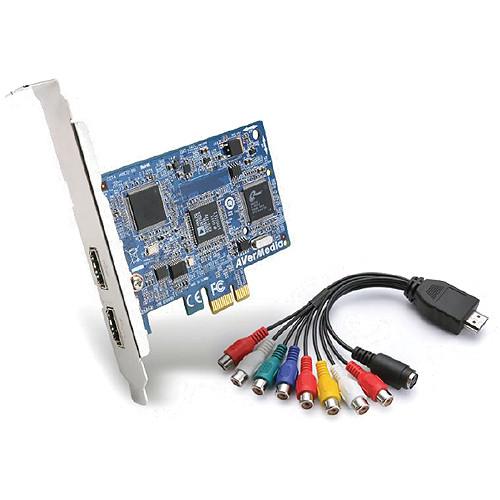

User Manual for AVerMedia DarkCrystal HD Capture SDK Video Capture Device Click to enlarge the picture
Contents of the user manual for the AVerMedia DarkCrystal HD Capture SDK Video
- Product category: Computer Hardware AVerMedia
- Brand: AVerMedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVerMedia Computer Hardware
|
User manual for the AVerMedia DarkCrystal HD Capture SDK Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVerMedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVerMedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVerMedia product will considerably shorten its lifespan!
|
Product description The DarkCrystal HD Capture SDK Video Capture Device from AVerMedia allows you to capture video on a Windows computer from a variety of HD and SD sources. It can be used to capture gameplay from a PS3 or other game console, to capture or stream from a camcorder, or even be used to capture or digitize your home movies already recorded on other media. It features an HDMI input and an analog input that uses a second HDMI-style connector and a special breakout cable (dongle) that is included. The breakout cable allows you to capture SD and HD resolution component and SD S-video and composite video along with stereo audio. Although there are two effective inputs, only one may be used at a time. - Uncompressed 4:2:2 Capture Support
- Via the HDMI input, it is possible to capture 1080i video with up to 4:2:2 chroma sub-sampling. Because HDMI provides an uncompressed signal, in some cases capturing live via this connector can provide better image quality than what a video camera is capable of recording internally -- depending on how the HDMI signal is processed before it is output
- Digitize Analog Sources
- Using the analog breakout cable you can capture from most analog video sources, including 720p and 1080i sources. This allows you to digitize home movies recorded on analog tape formats such as Hi8 and VHS. It allows you to capture from home theater appliances and game consoles that have component, S-video, or composite output. A pair of RCA audio inputs allow you to capture stereo audio as well
- HDCP Playback
- You can also use this card to play back HDCP-encrypted content on your computer, effectively letting you use your computer as a TV. HDCP-encryption is a form of copy-protection and is found, for example, on Blu-ray discs as well as some cable programming. Because of copyright restrictions this content is for viewing only; the DarkCrystal HD Capture SDK will not allow you to record video from these sources
- Image Adjustment
- Proc amp style adjustments on the analog inputs allow you to control the color balance of the video being captured
- Third Party Software Support
- The DarkCrystal HD Capture SDK is designed to provide interoperability with a number of widely used video editing, encoding, streaming, and playback applications found on the Windows platform. These include:
- Adobe Premiere Pro CS6
- Sony Vegas Pro 10
- Windows Media Encoder 9
- GraphEdit
- AMCap
- Adobe Flash Media Live Encoder 3
- Corel VideoStudio
- CyberLink PowerDirector
- CyberLink PowerProducer
- Real Producer (v13)
- VLC Media Player
- Image J
- API Support
- Supports DirectX 9.0c (and later) and Direct Show APIs to enabler interoperability with a wide range of third-party applications, including custom-developed solutions. Multi programming language support through the SDK means if you do want to create custom software solutions you will have a number of options available to you
- Video Down Scale
- HD and higher resolution content can be scaled for SD-integration or to web-friendly resolutions during capture
- Text Overlay
- Titles, lower thirds, and other text can be superimposed over the incoming video
UPC: 795522963734 In the Box AVerMedia DarkCrystal HD Capture SDK Video Capture Device Driver and Applications CD Dongle Cable (Analog Breakout Cable) Low Profile Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVerMedia DarkCrystal HD Capture SDK Video Capture Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVerMedia MTVC727DC Specs | Inputs | On Card
1 x HDMI
1 x Analog breakout cable input on HDMI connector
Via Analog Breakout Cable (Dongle)
1 x S-Video
1 x Composite on RCA female
1 x Component on 3 x RCA female
1 x Stereo audio on 2 x RCA female | | HDCP Support | Partial: HDCP support is limited to preview in AVer MediaCenter, cannot be recorded | | Supported Resolutions | Component and HDMI: Up to 1080i or 720p | | System Requirements | For SD Capture
Intel Pentium 4 3.0 GHz or better or
AMD Athlon 64 3200+ or better
For HD Capture
Intel Core2 Duo 2.4 GHz or better
AMD Athlon 64x2 dual core 2.8 GHz or better
General
Windows: 7, Vista, or XP -- 32 or 64-bit versions
Graphics card with DirectX9.0c or later support -- dedicated graphics card recommended for HD capture
512 MB or greater RAM -- 2GB or more recommended for HD capture
Free PCI-E slot
Sound card | | Dimensions | Not specified by manufacturer | | Weight | 1.6 oz / 45.8 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.9 x 6.1 x 2.1" |
