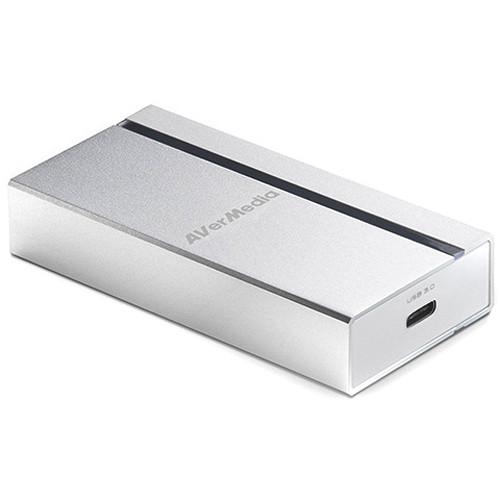

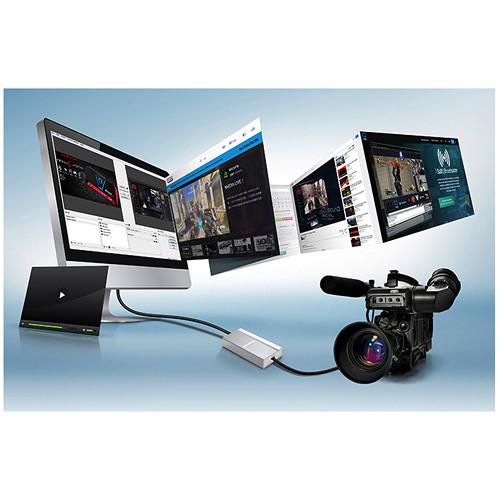

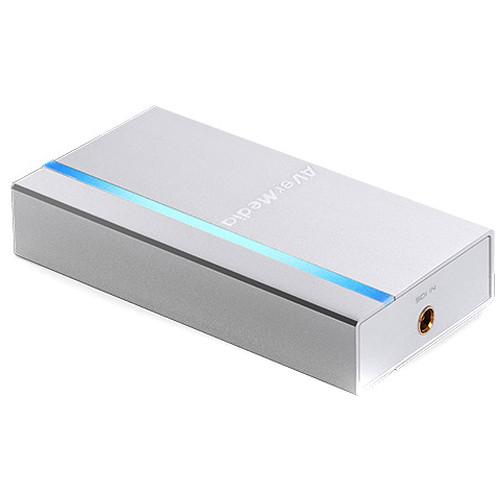

Product description The AVerMedia ExtremeCap SDI is a plug-and-play SDI to USB converter that lets you send an SDI camera signal to your computer for capturing, recording, and/or live streaming. Connect your camera to a Windows, Mac, or Linux computer using included cables and stream uncompressed 1080p60 video via various popular streaming applications such as OBS, Wirecast, XSplit, and Adobe Flash Media Live Encoder.
ExtremeCap SDI allows for internal upscaling and color space conversion, which can be managed in the included (free download) AVerMedia Recentral capture, scaling, and recording software for Windows, or via 3rd-party capture applications. Most streaming applications, including some free ones, already provide a capture feature with scaling control.

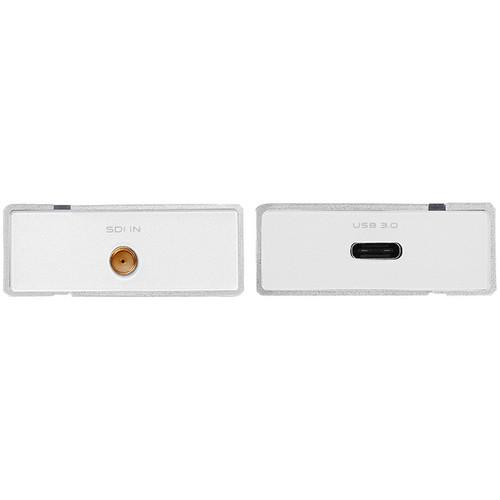

ExtremeCap SDI is designed compact for mobility and works plug-and-play without any driver installation required. For PiP display, multiple units can be connected to your computer at the same time. For connecting your SDI signal, the device offers an MCX input and includes an MCX to SDI converter cable. - Key Features
-
- Connect an SDI camera signal to your Windows, Mac, or Linux computer
- Capture, record, and live stream up to uncompressed 1080p60 video via popular streaming applications
- Internal upscaling and color space conversion
- Connect multiple units for PiP display
- Compatible Applications
-
- OBS
- XSplit
- Wirecast
- Adobe Flash Media Live Encoder
- DirectShow
- DirectSound
- EDIUS Pro 8
- vMix
- QuickTime Player
- VLC
- Safari
- Firefox
- Chrome
- Skype
- And various others
UPC: 795522965264 In the Box AVerMedia ExtremeCap SDI Plug-and-Play SDI to USB Converter SDI to MCX Cable USB 3.0 Type-C Cable USB 3.0 Type-C to Type-A Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVerMedia ExtremeCap SDI Plug-and-Play SDI to USB Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVerMedia BU111 Specs | Input | 1 x MCX (3G/HD/SD-SDI, SMPTE-259M, 260M, 274M, 292M, 296M, 425)
MCX to SDI Cable Included | | Output | 1 x USB 3.0 Type-C | | Output Format | MJPEG, YUY2 | | Audio Sampling Rate | 48 kHz PCM over SDI | | Resolutions | Up to 1080p60
1600 x 1200
1280 x 1024
1280 x 720
1024 x 768
800 x 600
720 x 576
720 x 480
640 x 480 | | System Requirement | Windows 10, 8.1, Windows 7 (x86, x64)
Mac OS X (10.10 or Above)
Linux Ubuntu 14.04
CPU (Windows Desktop): Intel Core i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or Above for Windows (or Something Equal or Higher for Mac/Linux)
CPU (Windows Laptop): Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or Above (or Something Equal or Higher for Mac/Linux)
4 GB RAM (8 GB Recommended) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | Dimensions | 3.3 x 1.7 x 0.7" / 8.5 x 4.3 x 1.7 cm | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 5.7 x 2.8 x 2.0" |
