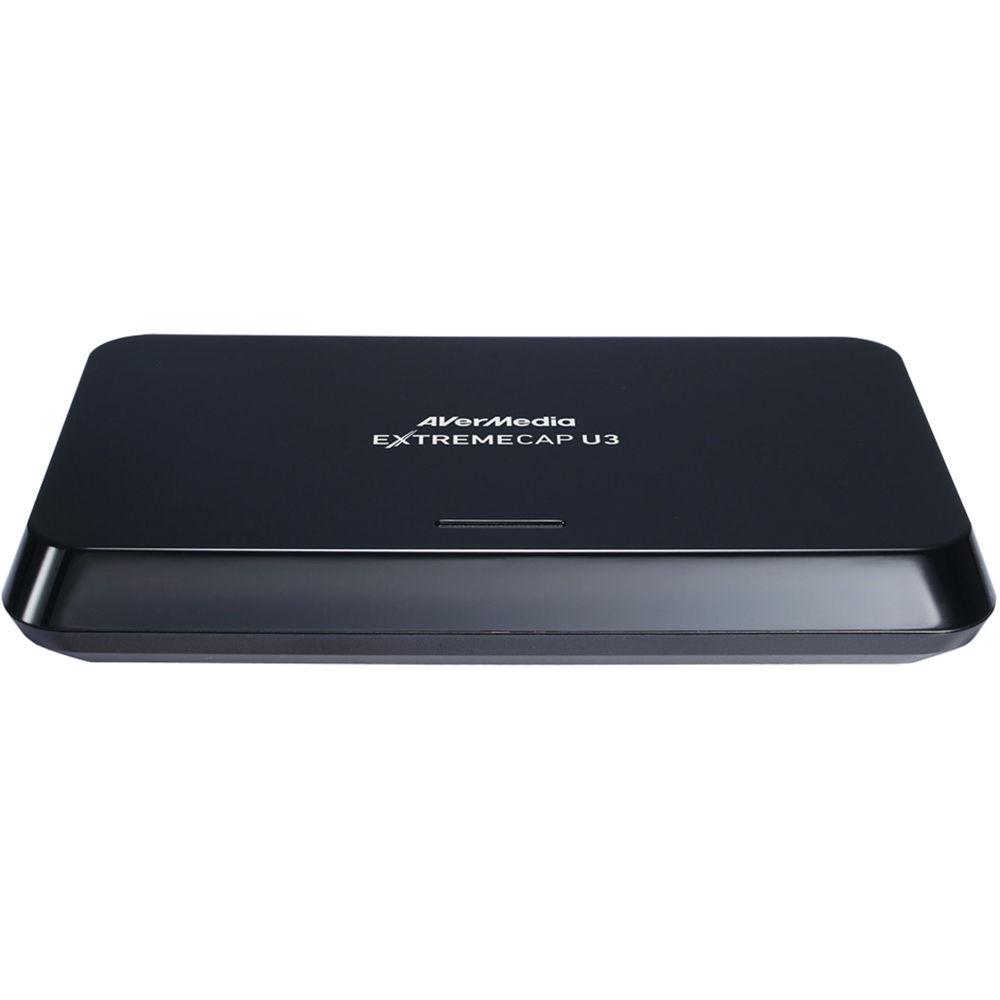

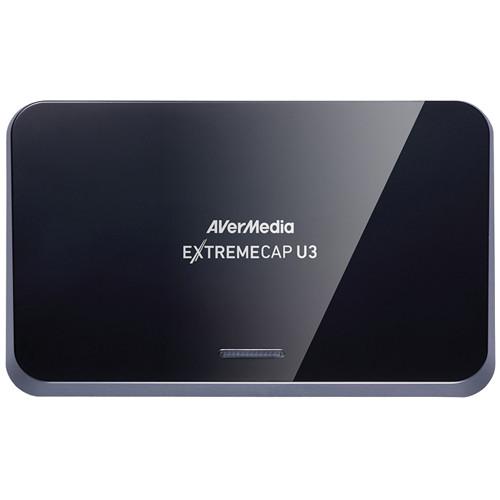

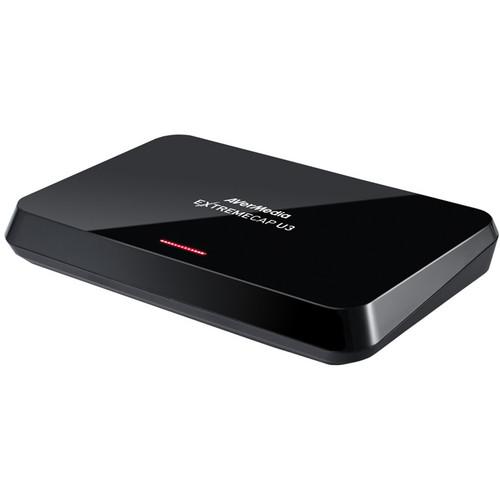

User Manual for AVerMedia ExtremeCap U3 Click to enlarge the picture
Contents of the user manual for the AVerMedia ExtremeCap U3
- Product category: Game Capture Devices AVerMedia
- Brand: AVerMedia
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVerMedia Game Capture Devices
 |
User manual for the AVerMedia ExtremeCap U3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVerMedia product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVerMedia user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVerMedia product will considerably shorten its lifespan!
|
Product description Designed with gamers in mind, the AverMedia ExtremeCap U3 is a USB 3.0 capture box that allows you to capture, record, and stream 1080/60p video via HDMI and component inputs from your PC and game consoles. It is capable of transmitting uncompressed HD data to popular video software with its DirectShow compatibility. The ExtemeCap U3 comes bundled with AverMedia's RECentral software for recording/streaming video with customizable settings, as well as a USB 3.0 Diagnosis Tool to ensure hardware compatibility. Also available with purchase are plug-ins for capturing and editing video within Sony Vegas and Adobe Premiere Pro CS6. A USB 3.0 cable and a component video / stereo audio dongle cable come included.
Note: The Extreme Cap U3 does not come with installation disc. Driver, Software, and plug-ins must be downloaded from AverMedia's website. - 1080p 60fps Video Recordings
- The ExtremeCap U3 grabs your gameplay footage up to 1920x1080 at 60fps, preserving smooth gameplay - especially for fast-moving FPS and sports games.
- Play Games & Record on the Same Monitor
- Utilizing the faster transfer speed of USB 3.0, the ExtremeCap U3 can transfer video content to your PC almost simultaneously as you play. This enables you to play games straight on the preview window of your video software, without the need for another monitor or worrying about latency.
- Voice Commentary
- Simply connect a microphone to your PC, adjust the PC audio settings, and you are ready to record voice commentary for your videos. The voice commentary can be saved separately in MP3 format for post-production work.
- RECentral
- RECentral software provides intuitive settings control for recording and streaming gameplay footage. It also provides quick accessibility to popular streaming platforms such as TwitchTV and Ustream.
- Work Seamless with Your Favorite Software
- Edit or stream uncompressed HD footage with DirectShow compliant software, such as XSplit, OBS, Wirecast, VLC media player, and PotPlayer.
- Straight Edit with Sony Vegas & Adobe Premiere Pro CS6
- Streamline your editing workflow with the Sony Vegas and Adobe Premiere Pro CS6 plug-ins, available for download on AverMedia's website. The plug-ins let you take advantage of the professional video editing tools and effects offered by these editing software.
- USB 3.0 Diagnosis Tool
- Test the performance of the USB 3.0 port on your computer with the included USB 3.0 Diagnosis Tool. The utility shoes if the USB 3.0 port is capable of transmitting 1080/60p video content. The tool provides an option to convert the video frame rate if the bandwidth of the port is insufficient.
UPC: 795522964373 In the Box AVerMedia ExtremeCap U3 USB 3.0 Cable Component Video / Stereo Audio Dongle Cable Quick Installation Guide Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVerMedia ExtremeCap U3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVerMedia CV710 Specs | | | Input | 1 x HDMI
1 x RCA Component
1 x RCA Audio L/R | | Host Connection | USB 3.1 Gen 1 Type-A | | Output | None | | Supported Capture Resolutions | 1920 x 1080p at 24/25/30/50/60 fps
1920 x 1080i at 50/60 Hz
1680 x 1050p at 30/60 fps
1440 x 900p at 30/60 fps
1360 x 768p at 30/60 fps
1280 x 1024p at 30/60 fps
1280 x 800p at 30/60 fps
1280 x 768p at 30/60 fps
1280 x 720p at 30/60 fps
1024 x 768p at 30/60 fps
800 x 600p at 60 fps
720 x 576p at 25/50 fps
720 x 480p at 30/60 fps
640 x 480p at 60 fps | | Media Card Slots | None | | Supported Formats | MP4 | | | | CPU | Intel Core i5-3400 (Desktop)
2.0 GHz Intel Core i7-3537U (Laptop) | | GPU | NVIDIA GT 630 (Desktop)
NVIDIA GT 735M (Laptop) | | Supported Operating Systems | Windows 8
Windows 7 | | | | Power Requirement | Bus-Powered USB Port | | Dimensions | 5.4 x 3.3 x 0.7" / 137.2 x 84.8 x 18.6 mm | | Weight | 0.4 oz / 182.0 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 7.4 x 5.1 x 1.9" |
