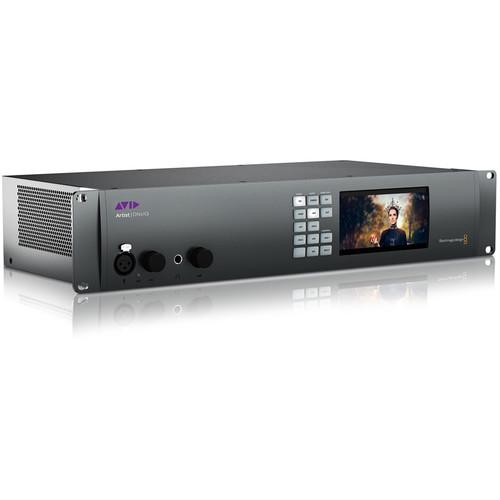

Product description The Avid Artist DNxIQ offers a built-in hardware encoder to capture to Avid DNxHR, enabling you to edit 4K files easily and speed up your workflow. It also enables you to see exactly what media is being ingested or sent out of production through the built-in front-panel HD LCD. You can change your source or timecode input with the press of a button.
The DNxIQ allows you to work with 2K or 4K media and HD with the onboard, real-time down-converter, enabling you to transition to high-res at your own pace. Equipped with Thunderbolt 3 connectivity, it provides bandwidth up to 40 Gb/s to your Mac or Windows-based host computer (Avid Artist | DNxIQ also offers optional PCIe connectivity). This device offers accelerated Universal Mastering that enables you to deliver broadcast/final masters in virtually any format. The interface offers real-time format and frame-rate conversion on all baseband SDI, HDMI, and analog output connections. - Supports 12G/6G/3G-SDI, Optical, HDMI 2, and AES/EBU connectors
- Supports XLR, LTC, RS-422, composite, component, and a headphone jack
- Allows you to monitor 5.1 and 7.1 surround sound mixes
- Offers eight channels of audio through SDI and HDMI (embedded audio)
- Allows to view your work across a gamut of color spaces, including HDR monitoring
- Onboard 3D processing to support 3D stereoscopic workflows
- Captures recordings through direct audio punch-ins to the Media Composer timeline using the front-panel XLR microphone input
- Audio interface that provides 48V of phantom power
- Support a wide range of video formats, including 4K (DCI), 2K (DCI), UHD, 1080p, 1080i, 720p, NTSC, and PAL
- Condenser mics without requiring a separate audio interface or power supply
UPC: 724643120924 In the Box Avid Artist DNXIQ (Standalone) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Artist DNXIQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid Artist DNXIQ Specs | | | Compatibility | Avid Media Composer Avid Media Composer Ultimate Avid Media Composer NewsCutter Option Avid Media Composer Symphony Option Adobe After Effects CC Adobe Photoshop CC Adobe Premiere Pro CC Apple Final Cut Pro X Blackmagic Design DaVinci Resolve Blackmagic Design Fusion FilmLight Baselight | | | | Video Formats | DCI 4K (SDI Only)
25/24/23.98
Ultra HD
60/59.94/50/30/29.97/25/24/23.98p
2K
25/24/23.98/25PsF/24PsF/23.98PsF
HD
1080p: 60/59.94/50/30/29.97/25/24/23.98p
1080PsF: 30/29.97/25/24/23.98p
1080i: 60/59.94/50
720p: 60/59.94/50
SD
PAL: 25i
NTSC: 30i | | Audio Sample Rate | 16-bit/24-bit, 48 kHz (television standard) | | Color Spaces | YUV 4:2:2, RGB 444, REC 709, BT 2020, DCI-P3; 8-bit and 10-bit; 1D LUT support | | | | SDI Video Input | 12G: 2 x BNC
3G: 2 x BNC
Supports single, dual, and quad link inputs (4:2:2 / 4:4:4)
2D/3D switchable | | SDI Video Loop | 4 x Reclocked SD/HD/2K/UHD/4K linked to corresponding inputs | | SDI Video Output | 12G: 2 x BNC
6G: 2 x BNC
Supports single, dual, and quad link outputs (4:2:2 / 4:4:4)
2D/3D switchable | | SDI Video Repeated Output | 12G: 2 x BNC
3G: 2 x BNC
Supports single, dual, and quad link outputs (4:2:2 / 4:4:4)
2D/3D switchable | | Analog Input | Component: 1 x 3BNC (SD-YCbCr, HD-YCbCr/RGB)
Composite: 1 x BNC (SD) | | Analog Output | Component: 1 x 3BNC (SD-YCbCr, HD-YCbCr/RGB)
Composite: 1 x BNC (SD)) | | Digital I/O | 2 x Optical (supporting 3Gs and 6G) | | HDMI I/O | 2 x HDMI 2.0 type A | | | | Analog Input | Balanced: 4 x 3-pin XLR
Unbalanced: 1 x RCA L/R pair
Mic: 1 x 3-pin XLR with 48 V phantom power | | Analog Output | Balanced: 4 x 3-pin XLR
Stereo headphone output with volume control: 1 x 1/4" TRS stereo jack | | Digital I/O | Input
AES/EBU: 1 x BNC (supports two channels with sample rate conversion)
HDMI: 8 x channels embedded in HDMI signal
Output
AES/EBU: 1 x BNC (supports two channels with sample rate conversion)
HDMI: 8 x channels embedded in HDMI signal | | SDI I/O | Input
8 x channels embedded in SD-SDI signal
16 x channels embedded in 4K/UHD/2K/HD-SDI signal
Output
8 x channels embedded in SD-SDI signal
16 x channels embedded in 4K/UHD/2K/HD-SDI signal | | | | Computer System | 1 x Thunderbolt 3 (cable sold separately)
1 x PCI Express (card/cable sold separately) | | Device Control | 2 x Sony-compatible RS-422 deck control ports | | | | UHD/HD Down Conversion | UHD to 1080 HD (SDI output only), HD to SD | | HD Up Conversion | SD to HD (input only) | | Cross Conversion | 720p to 1080i, 1080i to 720p | | Color Space Conversion | Yes | | Keyer | Real-Time: Alpha channel over video or matte, or frame buffer over incoming video or matte | | 3D Processing | Frame compatible/frame packed | | Codec Support | Onboard DNxHR encoding for capture workflows (requires Media Composer 8.4.5 or higher, or a software application that has enabled this capability) | | | | Clock Sources | Genlock/reference clock (BBG or tri-level), genlock/reference clock output/pass-through (BBG or tri-level), SDI (SD and HD), HDMI | | Timecode Input & Output | Input: 1 x 3-pin XLR
Output: 1 x 3-pin XLR | | SDI Ancillary Data Support | SDI VITC reader, RP188, NTSC closed captioning, HD-SDI closed captioning, pass-through all (HD, 4K) | | Power Supply | 2 x Built-in 120 to 240 V, 50 to 60 Hz AC power supplies with IEC C14 inlet | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to -113°F / -20 to 45°C | | Relative Humidity | 0-90% non-condensing | | Dimensions | 2 RU rack
With Rack Ears: 3.5 x 19 x 9.5" / 88.4 x 482 x 242 mm
Without Rack Ears: 3.5 x 16.5 x 9.5" /88.4 x 420 x 242 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 12.45 lb | | Box Dimensions (LxWxH) | 22.5 x 14.0 x 8.0" |
