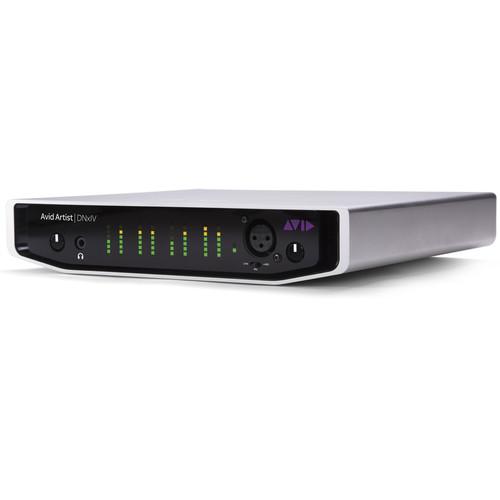

Product description The Avid Artist DNxIV I/O Interface provides the connections, bandwidth, portability, and processing features for 4K capture, monitoring, and output in the studio and in the field. Avid Artist DNxIV is compatible with Media Composer, Media Composer Ultimate, and the Media Composer NewsCutter and Symphony options.
One of the outstanding features of DNxIV is an XLR mic input on the front that allows you to record voiceovers and narration directly to your Media Composer timeline. DNxIV offers two Thunderbolt 3 ports that will provide you with the bandwidth you need for high-resolution formats, accurate time sync, and low latency. The device also has hardware scaling and onboard 3D processing. Use it for HDR monitoring, 3D stereoscopic workflows, and much more. Note: 1) Certain frame rates, color spaces, and color space conversion are supported in Avid Artist DNxIV but are currently not supported in Avid Media Composer. 2) An Avid DB25 breakout cable is expected to be released that will allow 8 channels of analog audio input/output via the DB25 port on the rear panel. - Input/Output
-
- Four bidirectional SDI ports (12G, 6G, 3G, 1.5G)
- 3G-SDI monitor output
- HDMI input/output
- XLR mic input
- Switchable LTC or video reference input
- LTC output
- RS-422
- Headphone jack with volume control
- Hardware Scaling/Processing
-
- Down-scaling/conversion: 4K to 2K, UHD to HD, HD to SD
- Up-scaling/conversion: SD to HD
- Cross-conversion: 720p to 1080i, 1080i to 1080p, 1080i to 720p
- Color space conversion
- Hardware deinterlacing
- Real-time keyer: alpha channel over video, matte, or frame buffer over incoming video or matte
- 3D processing: frame compatible/frame packed
- Other Features
-
- Audio pass-through mixing: monitor mix the audio being captured (8 channels)
- Clock source (selectable/detectable): Genlock/Reference Clock (BBG or tri-level), internal clock, SDI (SD and HD), and HDMI
- Ancillary data support: SDI VITC reader, RP188 timecode I/O, NTSC (closed captioning), HD-SDI (closed captioning), pass-through all (HD), pass-through all (4K)
UPC: 724643121051 In the Box Avid Artist DNxIV I/O Interface Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Artist DNxIV I O Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid DNxIV I/O Specs | Supported Formats | 4096 x 2160: 60/59.94/50/48/47.952/30/29.97/25/24/23.98
3840 x 2160: 60/59.94/50/48/47.952/30/29.97/25/24/23.98
2048 x 1080: 60/59.94/50/48/47.96/30/29.97/25/24/23.98
2048 x 1080PsF: 30/29.97/25/24/23.98
1080p: 60/59/94/50/48/47.96/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
NTSC
PAL | | Audio Sample Rate | 16-bit, 24-bit, 48 kHz (television standard) | | Color Spaces | YUV 4:2:2, RGB 444, REC 709, BT 2020, DCI-P3; 8-bit and 10-bit; 1D LUT support | | Input/Output | 4 x Bidirectional SDI Ports:
12G, 6G, 3G, 1.5G input and output
12G simultaneous input and output
Dual 3G input
Quad 3G input and output, software-controllable division/interleave
1 x 3G-SDI monitor output
1 x HDMI Type A input
1 x HDMI Type A output
Eight channels of HDMI I/O embedded in SD, HD, UHD, 2K, and 4K
1 x XLR mic/line input with 48 V phantom power and gain control
1 x Stereo headphone jack (with volume control)
2 x Thunderbolt 3 ports
1 x Switchable LTC or video reference input on BNC
1 x LTC output on BNC
1 x RS-422 on DB9
*An Avid DB25 breakout cable is expected to be released that will allow 8 channels of analog audio input/output via the DB25 port on the rear panel | | Power | 10-20 V, 30 W typical, 36 W max, 70 W max with USB-C power delivery to external devices | | Power Supply | 120-240 V, 50-60 Hz built-in international AC power supply | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Relative Humidity | 10-90% non-condensing | | Operating Altitude | < 10,000' / < 3050 m | | Dimensions | 1.7 x 8.7 x 8.1" / 4.2 x 22.2 x 20.6 cm | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 9.8 x 9.5 x 4.1" |
