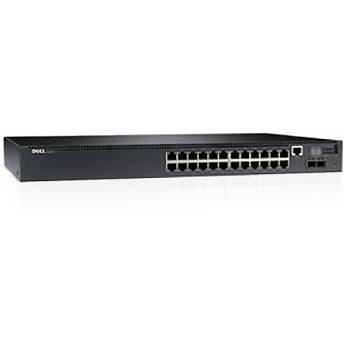

User Manual for Avid Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch Click to enlarge the picture
Contents of the user manual for the Avid Dell Networking N2024 1-Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Network Switches, Bridges & Hubs
|
User manual for the Avid Dell Networking N2024 1-Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|
Product description The Dell Networking N2024, from Avid, is a 24-port 1-Gigabit Ethernet switch compatible with the NEXIS | 1000 20TB Shared Storage System that enables multiple workstations and network devices to access your stored media. It offers Layer 3 standard Ethernet switches with basic routing functionality and features two unpopulated SPF+ 10-Gigabit Ethernet ports. Additionally, the unit offer rear mini-SAS stacking ports for linking up to 12 units together. The unit is rack-mountable in 1U of space using an included rack-mounting kit. - Layer 3 Standard Ethernet Switches
-
- Use MLAG for multipath loop-free redundancy without spanning tree to enable full-bandwidth utilization and high availability
- Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) (available with OS 6.1 release) and devices using Cisco Discovery Protocol (CDP)
- Offer a more flexible choice in your network by uniting products with the latest open standard protocols
- Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces
- Switch Attributes
-
- Line-rate Layer 2 switching
- Line-rate Layer 3 routing
- Data rates up to 172 Gb/s (full duplex) and a forwarding rate of up to 128 Mb/s
- Dual firmware images on-board
- Temperature sensors for environmental monitoring
- Cable diagnostics
- Optical transceiver (SFP/SFP+) diagnostics
- Switch auditing support
- UDLD
- Traffic Ports & Attributes
-
- 2 x Integrated 10GbE SFP+ dedicated ports
- Auto-negotiation for speed and flow control
- Auto MDI/MDIX S
- Port mirroring
- Flow-based port mirroring
- Broadcast storm control
- Energy Efficient Ethernet per port settings
- Port Profile support including Admin profiles
- Management & Configuration
-
- 1 x RJ45 console/management port with RS-232 signaling
- 1 x USB port for configuration
- Single OS (Dell Networking OS 6) for all N2000 Series switches
- One common command line interface (CLI) and graphical user interface (GUI) that uses a well-known command language to help skilled network administrators become productive quickly
- USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
- A variety of enterprise-class features with familiar and intuitive configuration and management commands
- The latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible
- Stacking Attributes
-
- 2 x Rear mini-SAS stacking ports and standard N-Series stacking cables support a stacking architecture of up to 12 units at 84 Gb/s (full-duplex)
- 9.8' maximum stacking distance
- Switch stacks can be managed from a single screen or IP address
- Power & Cooling Hardware
-
- 80PLUS-certified efficient integrated power supply (non-removable)
- External power supply (option available)
- Power supply redundancy (option available)
- Redundant variable-speed cooling fans
- Energy-Efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links
- Air flow: IO to PSU (Normal)
- Chassis
-
- 1U rack height
- Tool-less rack-mounting kit included
In the Box Avid Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch Rack-Mount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 7080-30085-00 Specs | Ports | 24 x 1-Gigabit Ethernet (RJ45), auto-sensing fixed ports
2 x 10-Gigabit Ethernet SFP+ ports (unpopulated)
2 x 21 Gb/s mini-SAS stacking ports
1 x Console/management port with RS-232 signaling (RJ45)
1 x USB (Type A) for configuration | | Switch Fabric Capacity | 172 Gb/s (full duplex) | | Forwarding Rate | 128 Mb/s | | Stacking | Max. Distance: 9.8' (3 m)
Max. Speed (Full-Duplex): 84 Gb/s | | CPU Memory | 1 GB | | Flash Memory | 256 MB | | Packet Buffer Memory | 4 MB | | Power Supply | 100 W
Efficiency: 80% or better in all operating modes | | Thermal Output | 117.44 BTU/hr (maximum) | | Power Consumption | 42.9 W (maximum) | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Relative Humidity | 95% | | Storage Relative Humidity | 85% | | Rack Height | 1 U | | Dimensions | 1.7 x 17.3 x 10.1" / 43.5 x 440 x 257 mm | | Weight | 8.15 lb / 3.69 kg | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 23.0 x 16.0 x 13.0" |
