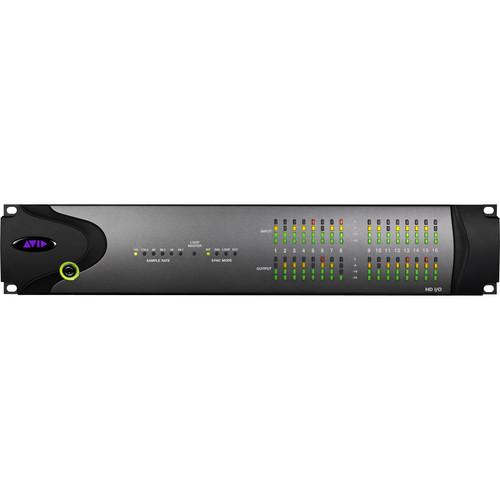

Product description The HD I/O 16x16 Analog from Avid is a high-performance Pro Tools HD Series audio interface that is designed to completely integrate with Pro Tools HD systems. Available in three different configurations, this version provides the maximum in analog input and output. Since the interface utilizes all four card slots, expansion is not possible, but customization is. Although it bears a physical resemblance to previous interfaces, the HD I/O has been completely redesigned with high quality converters and premium input and output circuitry. The interface provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface. Note: A minimum of Pro Tools HD 8.1 or higher software is required to use this interface. A free update is available for download to all registered Pro Tools HD 8.x users. - 16 input / 16 output analog audio interface with full Pro Tools|HD integration for complete input, output and routing control
- Pristine audio clarity and ultra low latency through state-of-the-art analog-to-digital and digital-to-analog conversion, premium analog circuitry, and meticulous attention to design
- Stereo AES/EBU, stereo S/PDIF and 8 channels of ADAT digital I/O with built-in sample rate conversion
- Customize the I/O with digital option cards
- Track hotter signals and smooth out sounds with Curv, a built-in soft-knee limiter
- Dedicated Wordclock and Loop Sync I/O
- 32, 4-segment metering LEDs for accurate level monitoring
- Robust 2U rack-mountable chassis
- Connects to Pro Tools HD through a DigiLink Mini connection (cable and adaptor included)
UPC: 724643110994 In the Box Avid HD I/O 16x16 Analog - Pro Tools HD Series Audio Interface AC Power Cable 18" (0.46m) DigiLink Mini Cable DigiLink to DigiLink Mini Adapter Cable 18" (0.46m) BNC Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid HD I O 16x16 Analog - Pro Tools HD Series Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9900-58670-40 Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Analog In | 4 x 25-pin D-Sub (16 inputs) | | Analog Outputs | 2 x 25-pin D-Sub (16 outputs) | | Digital Input Connectors | 1 x XLR AES/EBU
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Digital Output Connectors | 1 x XLR AES/EBU
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Other Connectors | 2 x BNC Wordclock I/O
2 x BNC Loop Sync I/O
2 x DigiLink Mini Ports
1 x 9-pin Expansion Port | | MIDI In/Out | No | | Headphone Output | No | | THD + N | ADC: -114dB (0.0002%)
DAC: -110dB (0.00032%) | | Dynamic Range | ADC: -122dB
DAC: -125dB | | Frequency Response | ADC: 20Hz to 20kHz, +/-0.03dB
DAC: 20Hz to 20kHz, +/-0.15dB | | Power Requirements | 100/240V, 50/60Hz, internal power supply | | Minimum System Requirements | Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at | | Dimensions (WxDxH) | 2U rack-mountable chassis | | Weight | 25 lb (11.34 kg) | | Specialties | Curv and Soft Clip processing
Card swap only - no further expansion available | | | | Package Weight | 24.6 lb | | Box Dimensions (LxWxH) | 24.0 x 21.1 x 10.0" |
