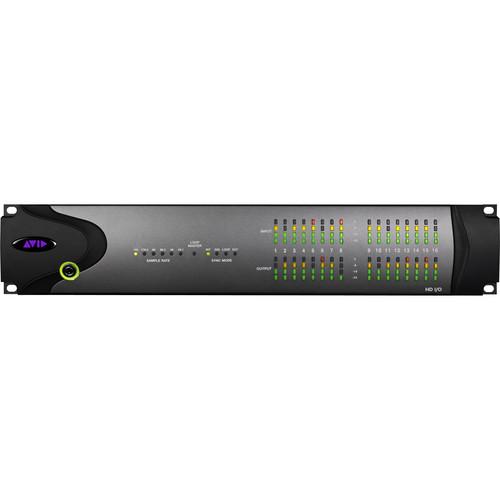

Product description The HD I/O 16x16 Digital from Avid is a high-performance Pro Tools HD Series audio interface that is designed to completely integrate with Pro Tools HD systems. Available in three different configurations, this version provides up to 16 channels of 24-bit digital I/O (sample rate dependent) using AES/EBU, or TDIF, or ADAT formats. Although it bears a physical resemblance to previous interfaces, the HD I/O has been completely redesigned and provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface. Sample rate conversion is available on the two digital cards for all channels. The digital I/O cards contain between them connectors for sixteen channels each of AES/EBU I/O, TDIF I/O, and optical (ADAT) I/O. Only one digital format can be used at a time. Two card slots are available for further expansion. Note: A minimum of Pro Tools HD 8.1 or higher software is required to use this interface. A free update is available for download to all registered Pro Tools HD 8.x users. - 16 input / 16 output digital audio interface with full Pro Tools HD integration for complete input, output and routing control
- 16 channels of AES/EBU I/O, or TDIF, or ADAT optical in addition to the 2 fixed channels of AES/EBU available on the chassis
- Stereo S/PDIF and 8 channels of ADAT digital I/O on the chassis
- Built-in sample rate conversion on both digital cards
- Two open card slot for additional customization
- Dedicated Wordclock and Loop Sync I/O
- Thirty-two, 4-segment metering LEDs for accurate level monitoring
- Robust 2U rack-mountable chassis
- Connects to Pro Tools HD through a DigiLink Mini connection (cable and adaptor included)
UPC: 724643116699 In the Box Avid HD I/O 16x16 Digital - Pro Tools HD Series Audio Interface AC Power Cable 18" (0.46m) DigiLink Mini Cable DigiLink to DigiLink Mini Adapter Cable 18" (0.46m) BNC Cable One (1) Year Warranty User Manual PDF 1.4mbbfsydddfdz Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid HD I O 16x16 Digital - Pro Tools HD Series Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9900-58671-40 Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Analog In | No | | Analog Outputs | No | | Digital Input Connectors | 2 x 25-pin D-Sub AES/EBU (8 channels shared with output)
2 x 25-pin D-Sub TDIF (8 channels shared with output)
2 x TOSLink Lightpipe ADAT optical
1 x XLR AES/EBU (2 channels)
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Digital Output Connectors | 2 x 25-pin D-Sub AES/EBU (8 channels shared with input)
2 x 25-pin D-Sub TDIF (8 channels shared with input)
2 x TOSLink Lightpipe ADAT optical
1 x XLR AES/EBU (2 channels)
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Other Connectors | 2 x BNC Wordclock I/O
2 x BNC Loop Sync I/O
2 x DigiLink Mini Ports
1 x 9-pin Expansion Port | | MIDI In/Out | No | | Headphone Output | No | | THD + N | Not applicable | | Dynamic Range | Not applicable | | Frequency Response | Not applicable | | Power Requirements | 100/240V, 50/60Hz, internal power supply | | Minimum System Requirements | Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at | | Dimensions (WxDxH) | 2U rack-mountable chassis | | Weight | Not specified by manufacturer | | Specialties | Two expansion bays available | | | | Package Weight | 23.8 lb | | Box Dimensions (LxWxH) | 23.5 x 21.0 x 9.25" |
