User Manual for Avid HD I O 8x8x8 - Pro Tools HD Series Audio Interface Click to enlarge the picture
Contents of the user manual for the Avid HD I O 8x8x8 -
- Product category: Audio Interfaces & Systems Avid
- Brand: Avid
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avid Audio Interfaces & Systems
|
User manual for the Avid HD I O 8x8x8 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avid product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avid user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avid product will considerably shorten its lifespan!
|

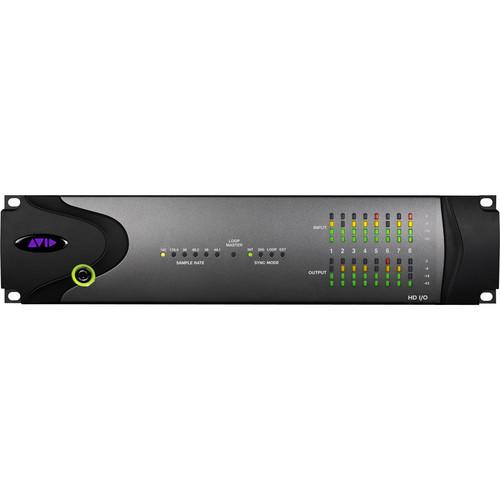

Product description The HD I/O 8x8x8 Analog from Avid is a high-performance Pro Tools HD Series audio interface that is designed to completely integrate with Pro Tools HD systems. Available in three different configurations, this version provides eight analog inputs and outputs, with an additional 8 channels of AES/EBU I/O, or 8 channels of TDIF I/O, or 8 channels of ADAT Lightpipe. Although it bears a physical resemblance to previous interfaces, the HD I/O has been completely redesigned with high quality converters and premium input and output circuitry. The interface provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface. Sample rate conversion is available on the digital card. The Digital I/O card contains connectors for eight channels each of AES/EBU I/O, TDIF I/O, and optical (ADAT) I/O. Only one digital format can be used at a time. A single card slot is available for further expansion. Note: A minimum of Pro Tools HD 8.1 or higher software is required to use this interface. A free update is available for download to all registered Pro Tools HD 8.x users. - 8 input / 8 output analog audio interface with full Pro Tools|HD integration for complete input, output and routing control
- 8 channels of AES/EBU I/O in addition to the 2 fixed channels of AES/EBU available on the chassis
- Stereo AES/EBU, stereo S/PDIF and 8 channels of ADAT digital I/O with built-in sample rate conversion
- Pristine audio clarity and ultra low latency through state-of-the-art analog-to-digital and digital-to-analog conversion, premium analog circuitry, and meticulous attention to design
- Open card slot for additional customization
- Track hotter signals and smooth out sounds with Curv, a built-in soft-knee limiter
- Dedicated Wordclock and Loop Sync I/O
- 32, 4-segment metering LEDs for accurate level monitoring
- Robust 2U rack-mountable chassis
- Connects to Pro Tools HD through a DigiLink Mini connection (cable and adaptor included)
UPC: 724643110857 In the Box Avid HD I/O 8x8x8 - Pro Tools HD Series Audio Interface AC Power Cable 18" (0.46m) DigiLink Mini Cable DigiLink to DigiLink Mini Adapter Cable 18" (0.46m) BNC Cable One (1) Year Warranty User Manual PDF 1.4mbuudvzwzfatbebdxdsdtqut Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid HD I O 8x8x8 - Pro Tools HD Series Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9900-58669-00 Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Analog In | 2 x 25-pin D-Sub (16 inputs) | | Analog Outputs | 1 x 25-pin D-Sub (16 outputs) | | Digital Input Connectors | 1 x 25-pin D-Sub AES/EBU (8 channels shared with output)
1 x 25-pin D-Sub TDIF (8 channels shared with output)
1 x Lightpipe ADAT optical
1 x XLR AES/EBU (2 channels)
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Digital Output Connectors | 1 x 25-pin D-Sub AES/EBU (8 channels shared with input)
1 x 25-pin D-Sub TDIF (8 channels shared with input)
1 x Lightpipe ADAT optical(
1 x XLR AES/EBU (2 channels)
1 x Lightpipe ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Other Connectors | 2 x BNC Wordclock I/O
2 x BNC Loop Sync I/O
2 x DigiLink Mini Ports
1 x 9-pin Expansion Port | | MIDI In/Out | No | | Headphone Output | No | | THD + N | ADC: -114dB (0.0002%)
DAC: -110dB (0.00032%) | | Dynamic Range | ADC: -122dB
DAC: -125dB | | Frequency Response | ADC: 20Hz to 20kHz, +/-0.03dB
DAC: 20Hz to 20kHz, +/-0.15dB | | Power Requirements | 100/240V, 50/60Hz, internal power supply | | Minimum System Requirements | Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at | | Dimensions (WxDxH) | 2U rack-mountable chassis | | Weight | 24 lb (10.89 kg) | | Specialties | Curv and Soft Clip processing
Single expansion bay available | | | | Package Weight | 23.2 lb | | Box Dimensions (LxWxH) | 24.0 x 21.1 x 10.0" |
