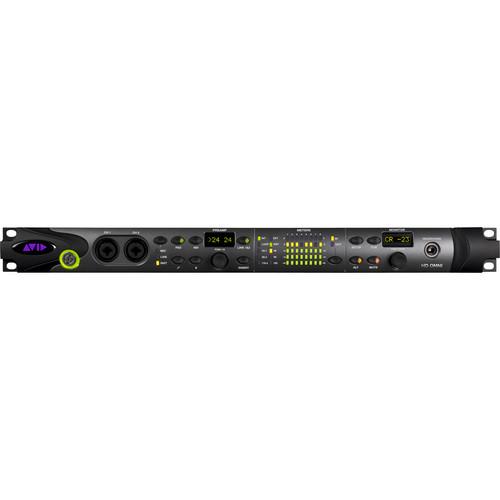

Product description As the hub of any music studio, the HD OMNI digital audio interface from Avid can be used to record high-quality instrument and vocal performances, while providing dedicated cue mixes for artists, and monitoring their performance through a discrete mix. No need for multiple interfaces. Everything can be done within the single-space rack HD OMNI. Overdub and Foley recording capabilities are available for post production, in addition to creating monitor mixes with up to 7.1 channels. Further, the user can fold down mixes from 7.1 to almost any channel configuration subset required. The interface features premium analog-to-digital and digital-to-analog converters that deliver high audio fidelity, extensive dynamic range, super-low jitter, and the lowest possible latency. Built-in sample rate conversion and a soft clip feature allows for worry-free performance, while Curv, a built-in soft-knee limiter catches even the fastest transients. For those occasions when the Pro Tools software doesn't need to be launched, or even the computer turned on, the interface features a built-in, customizable, 14-input monitor mixer, allowing for the continued monitoring of external sources, such as keyboards, drum machines, and digital music players, independently from the recording setup. The interface provides maximum performance, dependability, and control of all inputs, outputs, and routing right from the Pro Tools software interface. The interface and Pro Tools HD hardware will function with other DAW software via full support of Core Audio and ASIO drivers. Note: A minimum of Pro Tools HD 8.1 or higher software is required to use this interface. A free update is available for download to all registered Pro Tools HD 8.x users. - Analog I/O
-
- 24-bit analog-to-digital (A/D) and digital-to-analog (D/A) converters, with support for sample rates up to 192kHz
- Two high-quality microphone/DI preamps
- Two XLR and 1/4-inch TRS front panel combo inputs for microphone and instrument level input
- Two XLR back panel microphone inputs
- Two 1/4" TRS Send and two 1/4" TRS Return jacks for hardware inserts on channels 1 and 2 (back-panel)
- Four analog 1/4" TRS line level back panel inputs (channels 1-4)
- Soft Clip and Curv limiting circuits to protect against clipping on analog input
- Eight channels of analog output using a DB-25 breakout cable (sold separately) with variable output gain
- Two channels of analog output using 1/4" TRS jacks (mirrors channels 1-2 or 7-8 on DB-25 connector)
- Front panel stereo 1/4" headphone jack
- Route audio independently from Pro Tools with the 14-input persistent monitor mixer
- Digital I/O
-
- Eight channels of AES/EBU output (up to 192kHz Single Wire) using a DB-25 breakout cable (sold separately)
- Two channels of AES/EBU XLR input (up to 192kHz Single Wire)
- Two channels of S/PDIF RCA input and output (up to 192kHz)
- Eight channels of ADAT TOSLink input and output
- Support for ADAT S/MUX optical for sample rates of 88.2, 96, 176.4 and 192kHz
- Support for two channels of S/PDIF optical with sample rates of up to 96kHz
- Real-time sample rate conversion (SRC) on digital Inputs 1-2 of either AES/EBU, S/PDIF, or optical S/PDIF
- Monitoring
-
- Additional stereo "CUE" output path in Pro Tools for headphone monitoring from the front panel headphone jack
- Front panel Control Room (MAIN/ALT) and headphone monitoring volume control
- Flexible monitoring with fold-down from all stereo and surround formats (up to 7.1 surround)
- Input mixer for low latency direct monitoring of a variety of incoming signals (configured in the Pro Tools Hardware Setup)
- Synchronization
-
- Loop Sync input and output for connecting additional Pro Tools HD interfaces and peripherals
- External Clock input and output for synchronizing HD OMNI with external Wordclock devices
UPC: 724643110659 In the Box Avid HD OMNI - Preamp, I/O, and Monitoring Pro Tools HD Series Interface AC Power Cable DigiLink to DigiLink Mini Adapter Cable 18" (0.46m) BNC Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid HD OMNI - Preamp, I O, and Monitoring Pro Tools HD Series Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9900-58631-00 Specs | Converters | 24-bit | | Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz | | Analog In | 2 x XLR/TRS combi Microphone/Line (front panel)
2 x XLR Microphone (rear panel)
4 x 1/4" TRS phone Line (rear panel)
2 x 1/4" TRS phone Return (rear panel) | | Analog Outputs | 1 x 25-pin D-Sub (outputs 1-8)
2 x 1/4" TRS phone AUX
2 x 1/4" TRS phone Send
1 x 1/4" TRS phone Headphone | | Digital Input Connectors | 1 x XLR AES/EBU
1 x TOSLink ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Digital Output Connectors | 1 x 25-pin D-Sub AES/EBU (8 channels)
1 x TOSLink ADAT optical (also functions in 2-channel optical S/PDIF mode)
1 x RCA coaxial S/PDIF Supports AES Single-Wire (192 kHz) | | Other Connectors | 2 x BNC Wordclock I/O
2 x BNC Loop Sync I/O
2 x DigiLink Mini Ports
1 x 9-pin Expansion Port | | MIDI In/Out | No | | Microphone Inputs | Frequency Response: 20Hz to 20kHz (+/-0.05 dB)
Gain Range: 65dB
EIN: -128dB
THD+N: -107dB (0.00045%)
CMRR: -93dB | | Line Inputs | Frequency Response: 20Hz to 20kHz (+/-0.03 dB)
Dynamic Range: 118dB (A-weighted)
THD+N: -111dB (0.00028%) | | Line Outputs | Frequency Response: 20Hz to 20kHz (+/-0.03 dB)
Dynamic Range: 120dB (A-weighted)
THD+N: -108dB (0.00039%)
Line Output Level /Trim: +10dBu or +24dBu/-40dB to +10dB (0.1dB steps) | | Headphone Outputs | Frequency Response: 20Hz to 20kHz(+/-0.03 dB)
Dynamic Range: 118dB (A-weighted)
THD+N: -107dB (0.00045%) | | Power Requirements | 100/240V, 50/60Hz, internal power supply | | Minimum System Requirements | Due to constantly changing requirements, for comprehensive hardware specifications and system requirements, please refer to Avid's website at | | Dimensions (WxDxH) | 1U rack-mountable chassis | | Weight | 16 lb (7.26 kg) | | Specialties | Curv and Soft Clip processing
14 input channels to 2 multi-channel monitoring paths, each with its own fold-down configuration
Monitoring Formats: 7.1, 7.0, 6.1, 6.0, 5.1, 5.0, QUAD, LCRS, LCR, 2.1, Stereo, Mono | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 8.0" |
