Product description

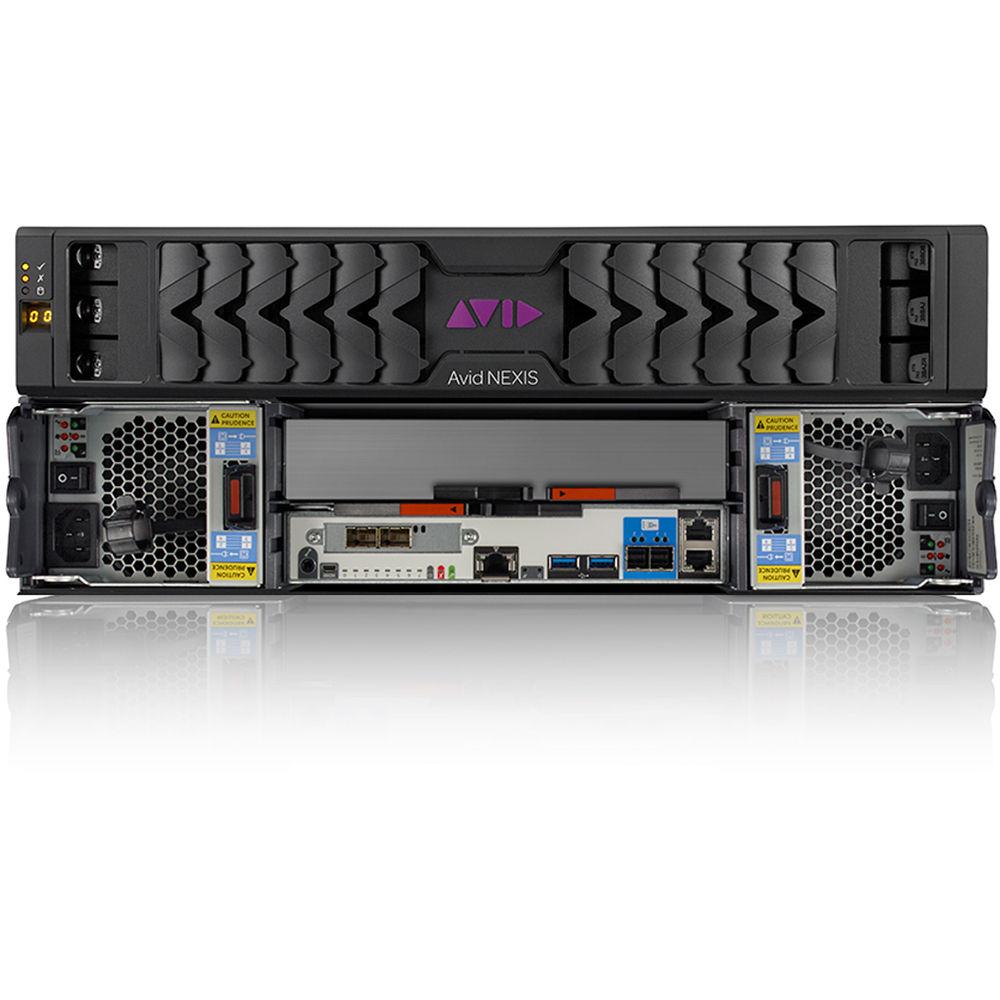

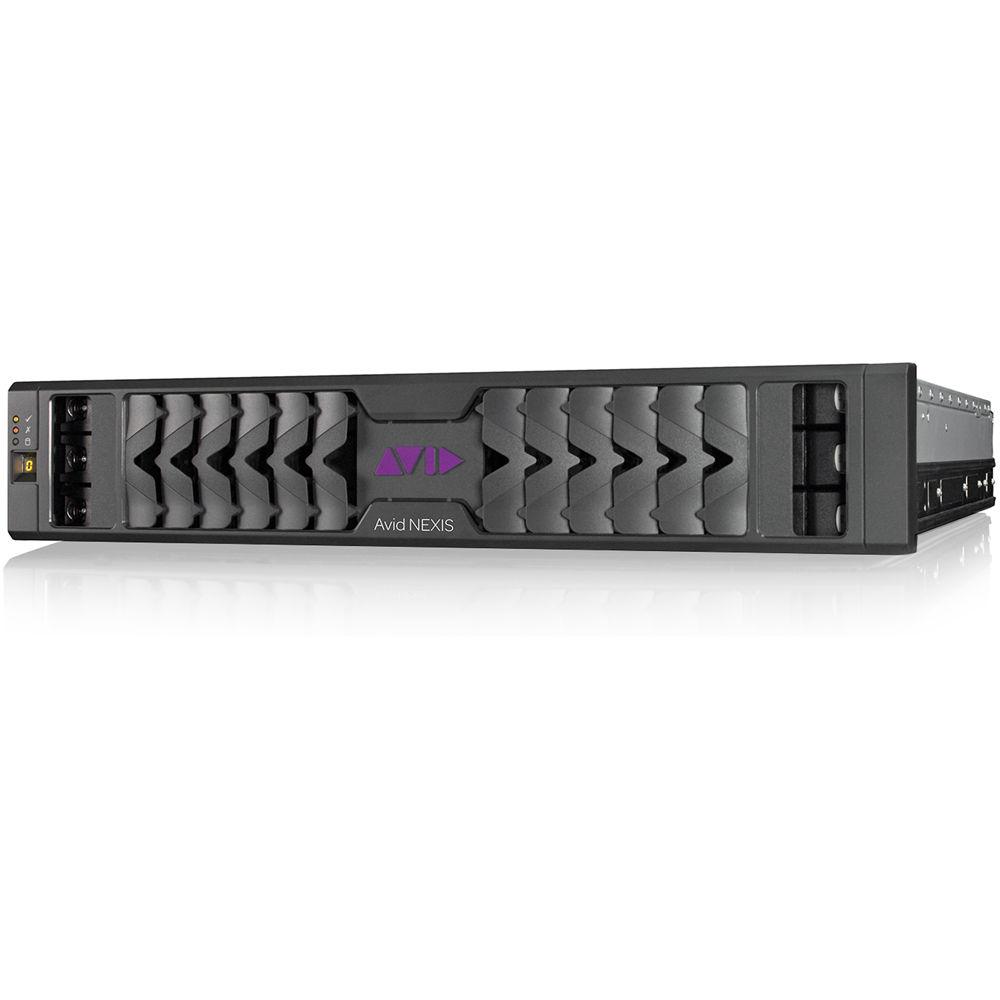

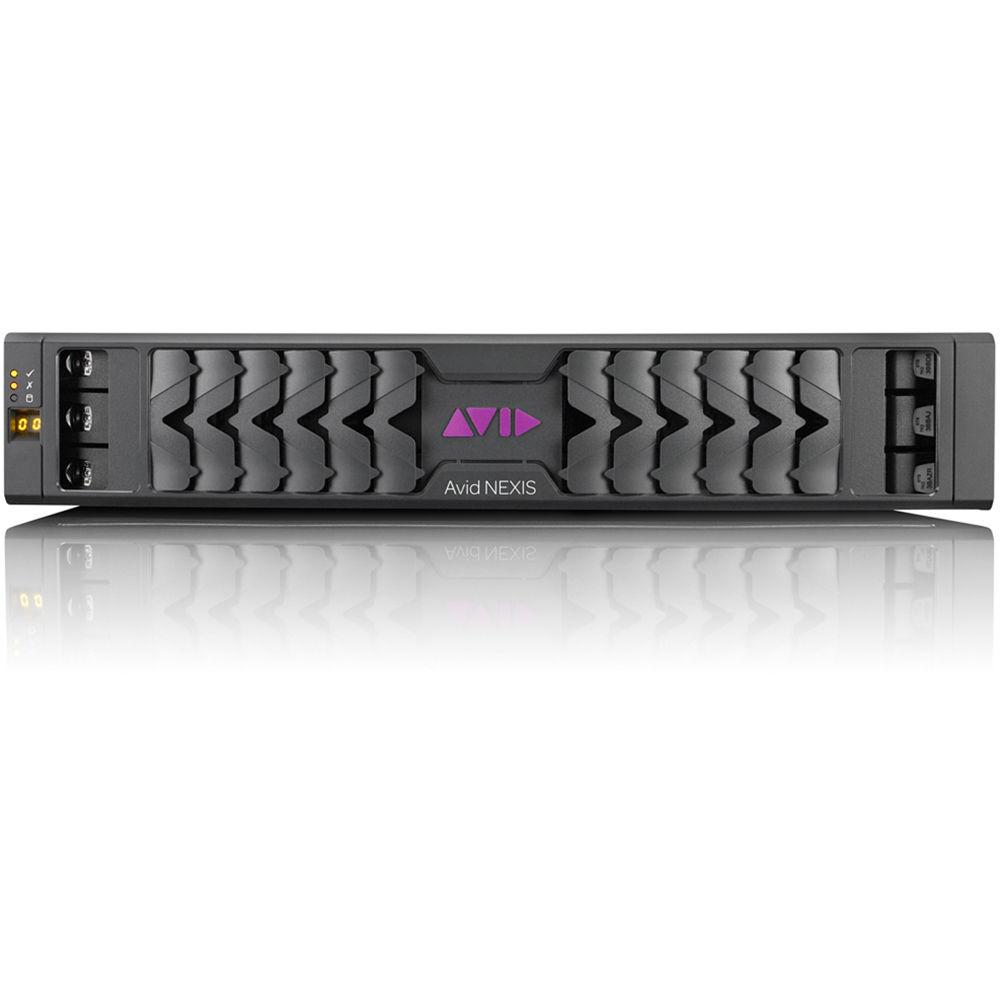

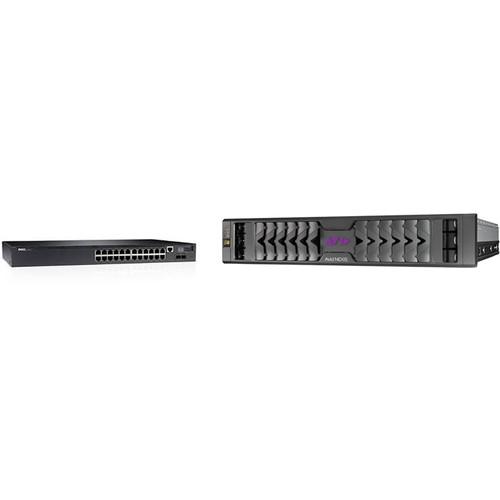

• NEXIS | PRO 40TB Shared Storage System Centralize your video storage with Avid's NEXIS | PRO 40TB Shared Storage System. Using 10 7200 rpm drives with 4TB of storage each, NEXIS | PRO creates a safe and reliable storage solution for your professional video or audio workflow. NEXIS | PRO seamlessly integrates with Avid or select third-party professional software programs. It can store all your video, audio and other essential files for your projects while granting simultaneous access to up to 24 users. Despite its advanced functionality, NEXIS | PRO is designed to be easy to set up and start running without the aid of a networking professional. For protection and increased speed, NEXIS | PRO uses redundant storage which can retain your data through two simultaneous drive failures. In the event of a failure, NEXIS | PRO can rebuild data to replacement drives very quickly to maintain redundancy. NEXIS | PRO is contained in a compact rackmountable chassis so you can use the included rackmount slide rail brackets to secure it with your other networking hardware.
  Collaborate on Projects in Real Time
  • NEXIS | PRO mitigates the storage sharing and media copying shuffle of using individual USB, FireWire, eSATA, or Thunderbolt drives, allowing up to 24 editors, assistants, loggers and other contributors to access media at the same time.
  Scalable Storage
  • With NEXIS | PRO you can expand your raw storage capacity from 40TB up to 160TB, in 40TB increments, by adding extra NEXIS Storage Engines as needed. Connect up to four Engines together for maximum capacity and bandwidth, enabling you to keep your valuable assets protected, available and within easy reach through a centralized media hub.
  Fast Data Rates
  • With support for real-time SD, HD, 2K and 4K media performance, NEXIS | PRO is optimized for modern media production workflows. If you need more throughput power to support more demanding high-resolution projects and collaborations, while a single unit can provide 600 MB/s data rate, you can increase bandwidth up to 1,200 MB/s by adding more Storage Engines into your setup.
  Supports Avid and 3rd Party Software
  • As a component of the Avid MediaCentral Platform, NEXIS | PRO is designed to be used with both Avid and third-party editing and asset management tools. You can accelerate your workflow, whether using Avid Media Composer, Avid Pro Tools, Apple Final Cut Pro, Adobe Premiere, Blackmagic Design's DaVinci Resolve and Grass Valley EDIUS. And you can manage media through easy integration with third-party asset management software. Plus, NEXIS | PRO works with NETGEAR XS712T and Dell N2024 and N3024 switches, precluding costly and complex network switches.
  Simple End-User Setup
  • NEXIS | PRO makes system set-up and management easy, so you can focus on your work, not on becoming an IT expert. Additionally the unit's self-balancing, distributed architecture and metadata management intelligently handles data redistribution, media protection and other tasks automatically, for consistent performance under all load conditions.

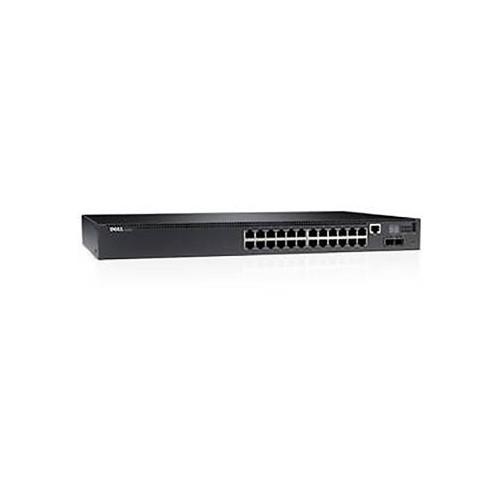

• Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch The Dell Networking N2024, from Avid, is a 24-port 1-Gigabit Ethernet switch compatible with the NEXIS | 1000 20TB Shared Storage System that enables multiple workstations and network devices to access your stored media. It offers Layer 3 standard Ethernet switches with basic routing functionality and features two unpopulated SPF+ 10-Gigabit Ethernet ports. Additionally, the unit offer rear mini-SAS stacking ports for linking up to 12 units together. The unit is rack-mountable in 1U of space using an included rack-mounting kit.
  Layer 3 Standard Ethernet Switches
  • • Use MLAG for multipath loop-free redundancy without spanning tree to enable full-bandwidth utilization and high availability
    • Promote greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) (available with OS 6.1 release) and devices using Cisco Discovery Protocol (CDP)
    • Offer a more flexible choice in your network by uniting products with the latest open standard protocols
    • Feature Layer 3 IPv4 and IPv6 functionality, including static routing and Routing Information Protocol (RIP version 1 & 2) support for up to 256 interfaces
  Switch Attributes
  • • Line-rate Layer 2 switching
    • Line-rate Layer 3 routing
    • Data rates up to 172 Gb/s (full duplex) and a forwarding rate of up to 128 Mb/s
    • Dual firmware images on-board
    • Temperature sensors for environmental monitoring
    • Cable diagnostics
    • Optical transceiver (SFP/SFP+) diagnostics
    • Switch auditing support
    • UDLD
  Traffic Ports & Attributes
  • • 2 x Integrated 10GbE SFP+ dedicated ports
    • Auto-negotiation for speed and flow control
    • Auto MDI/MDIX S
    • Port mirroring
    • Flow-based port mirroring
    • Broadcast storm control
    • Energy Efficient Ethernet per port settings
    • Port Profile support including Admin profiles
  Management & Configuration
  • • 1 x RJ45 console/management port with RS-232 signaling
    • 1 x USB port for configuration
    • Single OS (Dell Networking OS 6) for all N2000 Series switches
    • One common command line interface (CLI) and graphical user interface (GUI) that uses a well-known command language to help skilled network administrators become productive quickly
    • USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
    • A variety of enterprise-class features with familiar and intuitive configuration and management commands
    • The latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible
  Stacking Attributes
  • • 2 x Rear mini-SAS stacking ports and standard N-Series stacking cables support a stacking architecture of up to 12 units at 84 Gb/s (full-duplex)
    • 9.8' maximum stacking distance
    • Switch stacks can be managed from a single screen or IP address
  Power & Cooling Hardware
  • • 80PLUS-certified efficient integrated power supply (non-removable)
    • External power supply (option available)
    • Power supply redundancy (option available)
    • Redundant variable-speed cooling fans
    • Energy-Efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links
    • Air flow: IO to PSU (Normal)
  Chassis
  • • 1U rack height
    • Tool-less rack-mounting kit included

• Power Cord

• Rackmount Slide Rails

• Limited 1-Year Warranty

• Rack-Mount Kit

• Limited Lifetime Warranty

Also Includes

• Ethernet Cable

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• NEXIS | PRO 40TB Shared Storage System

  Total Raw Capacity	40 TB
  Included Drives	10 x 4 TB 3.5" HDD

  Max Groups	1000

  Power Consumption	764 W (Maximum) 380 W (In Operation)

  Operating Temperature	41 to 104°F / 5 to 40°C
  Operating Humidity	20 to 80%
  Storage Temperature	-40 to 140°F / -40 to 60°C

  Dimensions	19.0 x 3.5 x 24.8" / 48.3 x 8.9 x 63.0 cm
  Weight	57.2 lb / 26.0 kg with Drives

  Box Dimensions (LxWxH)	32.3 x 25.3 x 10.6"

• Dell Networking N2024 1-Gigabit Ethernet Layer 3 Switch

  Ports	24 x 1-Gigabit Ethernet (RJ45), auto-sensing fixed ports 2 x 10-Gigabit Ethernet SFP+ ports (unpopulated) 2 x 21 Gb/s mini-SAS stacking ports 1 x Console/management port with RS-232 signaling (RJ45) 1 x USB (Type A) for configuration
  Switch Fabric Capacity	172 Gb/s (full duplex)
  Forwarding Rate	128 Mb/s
  Stacking	Max. Distance: 9.8' (3 m) Max. Speed (Full-Duplex): 84 Gb/s
  CPU Memory	1 GB
  Flash Memory	256 MB
  Packet Buffer Memory	4 MB
  Power Supply	100 W Efficiency: 80% or better in all operating modes
  Thermal Output	117.44 BTU/hr (maximum)
  Power Consumption	42.9 W (maximum)
  Operating Temperature	32 to 113°F / 0 to 45°C
  Storage Temperature	-40 to 149°F / -40 to 65°C
  Operating Relative Humidity	95%
  Storage Relative Humidity	85%
  Rack Height	1 U
  Dimensions	1.7 x 17.3 x 10.1" / 43.5 x 440 x 257 mm
  Weight	8.15 lb / 3.69 kg

  Box Dimensions (LxWxH)	23.0 x 16.0 x 13.0"
