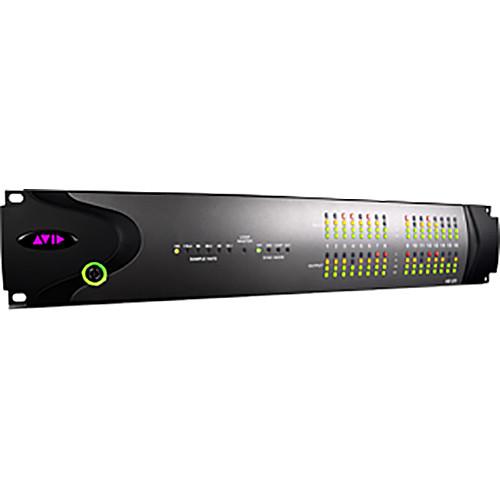

Product description The Pro Tools HD I/O 16x16 Analog from Avid is a high-performance audio interface designed to completely integrate with Pro Tools | HD systems. The interface offers high-quality A/D and D/A conversion and advanced circuitry for maximum sound quality and clarity with low latency. It uses Curv technology, a built-in soft-knee limiter that catches fast transients, allowing you to track hot signals and smooth out inconsistent levels from incoming sources. Additional features include high audio fidelity, extensive dynamic range, and low jitter. The HD I/O 16x16 Analog completely integrates with Pro Tools | HD systems for high production quality, workflow flexibility, maximum performance, dependability, and control of routing, all from within the Pro Tools | HD Software interface. The system is also compatible with Pro Tools | HD hardware and other DAW software, as all Pro Tools | HD systems support Core Audio and ASIO drivers. - Audio clarity and low latency through A/D and D/A conversion, high-quality circuitry, and detailed design
- Maximize your analog I/O with HD I/O
- Expand or customize the I/O with separately sold analog or digital option cards
HD I/O 16 x 16 Analog cannot be expanded, as all four bays are occupied, card swaps only - Integrates with Pro Tools HD family systems for full input, output, and routing control
- Track hot signals and smooth out sounds with Curv, a built-in soft-knee limiter
- Keep system in sync with dedicated word clock and loop sync I/O
- 32 x 4-segment metering LEDs allow you to monitor your levels
- Durable 2U rack-mountable chassis
- Connects to ProTools | HD family systems through a DigiLink Mini connection
In the Box Avid Pro Tools HD I/O 16x16 Analog DigiLink Cable and Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avid Pro Tools HD I O 16x16 Analog in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvid 9920-65022-00 Specs | Analog Inputs | 16 | | Analog Outputs | 16 | | AES/EBU | 2
(Single wire: 192 kHz) | | S/PDIF | 1 x input
1 x output
Coax or optical | | ADAT | 8 | | S/MUX | S/MUX II and IV | | Word Clock I/O | 1 x input
1 x output | | Loop Sync I/O | 1 x input
1 x output | | Digital Interface | DigiLink Mini | | Dynamic Range | ADC: 122 dB
DAC: 125 dB | | THD + N | ADC: -114 dB (0.0002%)
DAC: -110 dB (0.00032%) | | Frequency Response | ADC: 20 Hz to 20 kHz (±0.03 dB)
DAC: 20 Hz to 20 kHz (±0.15 dB) | | Metering | 32 x 4-segment LEDs | | Cooling | Internal fan | | Chassis | 2U rack-mountable | | System Requirements | Avid-qualified Pro Tools|HD family system running Pro Tools|HD 8.1 or higher software
Avid-qualified Pro Tools|HD family system running Core Audio or ASIO-compliant software | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
