User Manual for Avinair 10.1" Wireless FPV Monitor Click to enlarge the picture
Contents of the user manual for the Avinair 10.1" Wireless FPV Monitor
- Product category: FPV (First Person View) Components Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair FPV (First Person View) Components
 |
User manual for the Avinair 10.1" Wireless FPV Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|

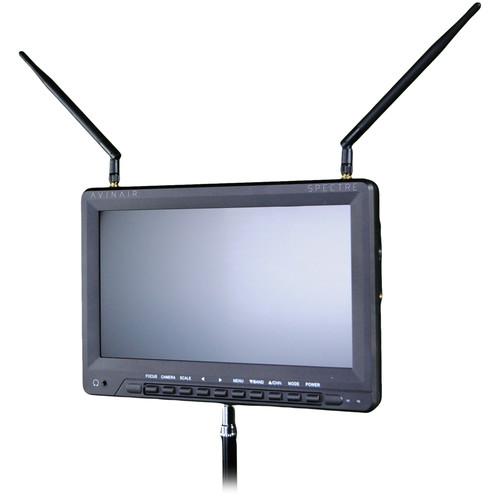

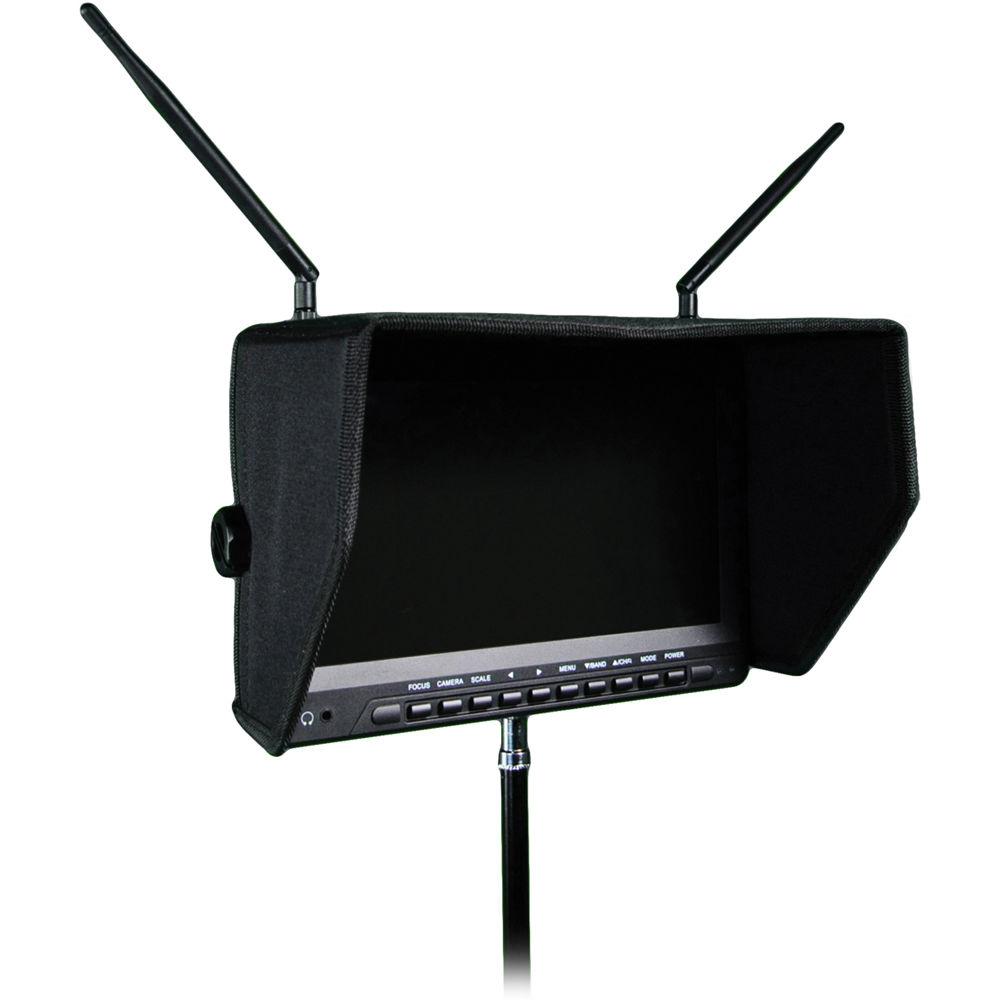

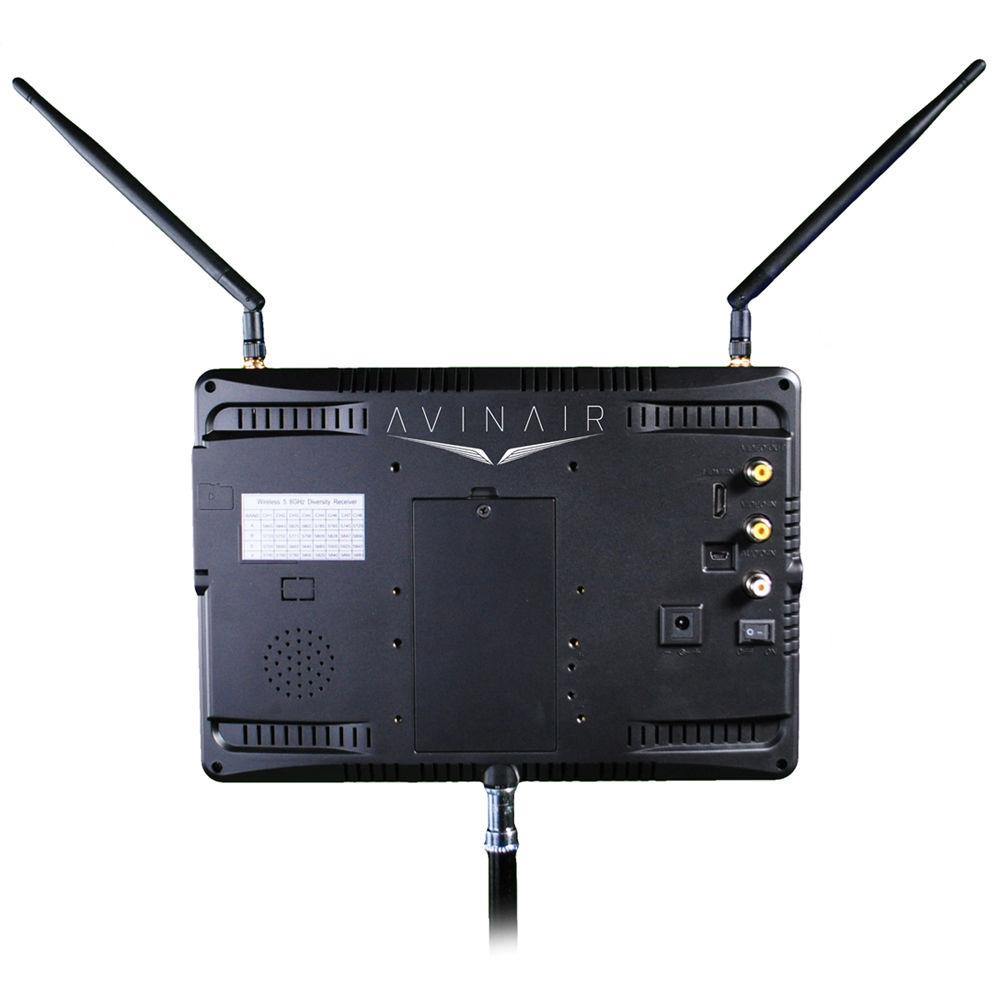

Product description The 10.1" Wireless FPV Monitor from AVInAir is ideal for first-person viewing and aerial imaging applications, featuring a built-in 32-channel analog video receiver. Additionally, it can be used for other wireless video applications, ranging from security and surveillance to high-mobility live broadcasting and film production. Its 10.1" LED backlit LCD screen features a native resolution of 1024 x 600, and it includes HDMI and composite video inputs along with its wireless connectivity. There is also a composite loop-out for connection a secondary display, such as FPV goggles. The monitor includes an integrated 2200 mAh battery that is estimated to last two hours. Additionally, a collapsible sun shade comes in the box to help enhance visible in bright sunlight. UPC: 753807557283 In the Box Avinair 10.1" Wireless FPV Monitor Collapsible Sun Shade AC Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair 10.1" Wireless FPV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-FPV-10W Specs | | | Size | 10.1" | | Panel Type | LED backlit TFT LCD | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Brightness | 450 nits | | Contrast Ratio | 700:1 | | Response Time | 10 ms | | Viewing Angle | Left / Right: 75°
Up / Down: 75° | | Dot Pitch | Width x Height: 0.05 x 0.15mm | | | | Supported Standards | PAL (4.43)
NTSC (3.58) | | Supported Resolutions | 50/60 Hz: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | | | | Inputs | 1 x HDMI (standard)
1 x Composite on RCA connector
1 x Mono audio on RCA connector | | Outputs | 1 x Composite on RCA connector
1 x 3.5 mm headphone jack
1 x Speaker | | USB | 1 x Mini-USB | | | | Frequency | 5.8 GHz | | Number of Channels | 32 / 4 bands | | Range | Up to 1312' / 400 m line of sight | | Receive Sensitivity | -90 dBm typical | | Frequency Stability | ±100 ppm | | | | Mounting | 1/4"-20 threaded socket
VESA 75 x 75 cm | | Battery | Voltage:7.4 VDC
Capacity: 2200 mAh | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Dimensions | 9.5 x 8.1 x 2.1" / 24.1 x 20.6 x 5.3 cm | | Weight | 1.4 lb / 639.6 g | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 14.4 x 14.3 x 9.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
