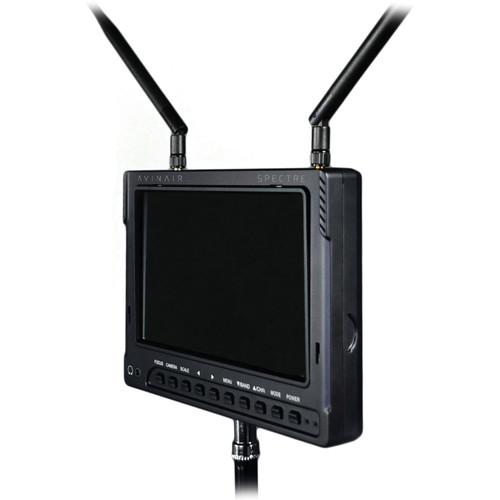

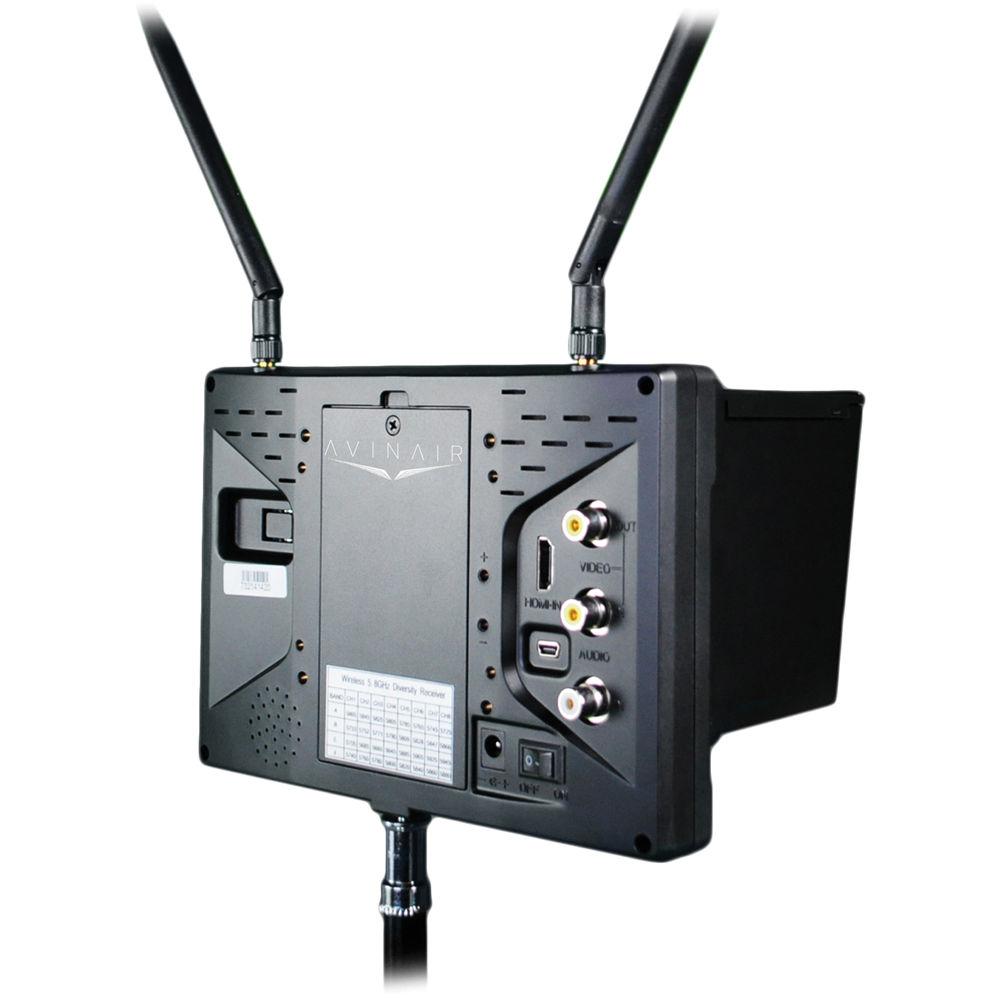

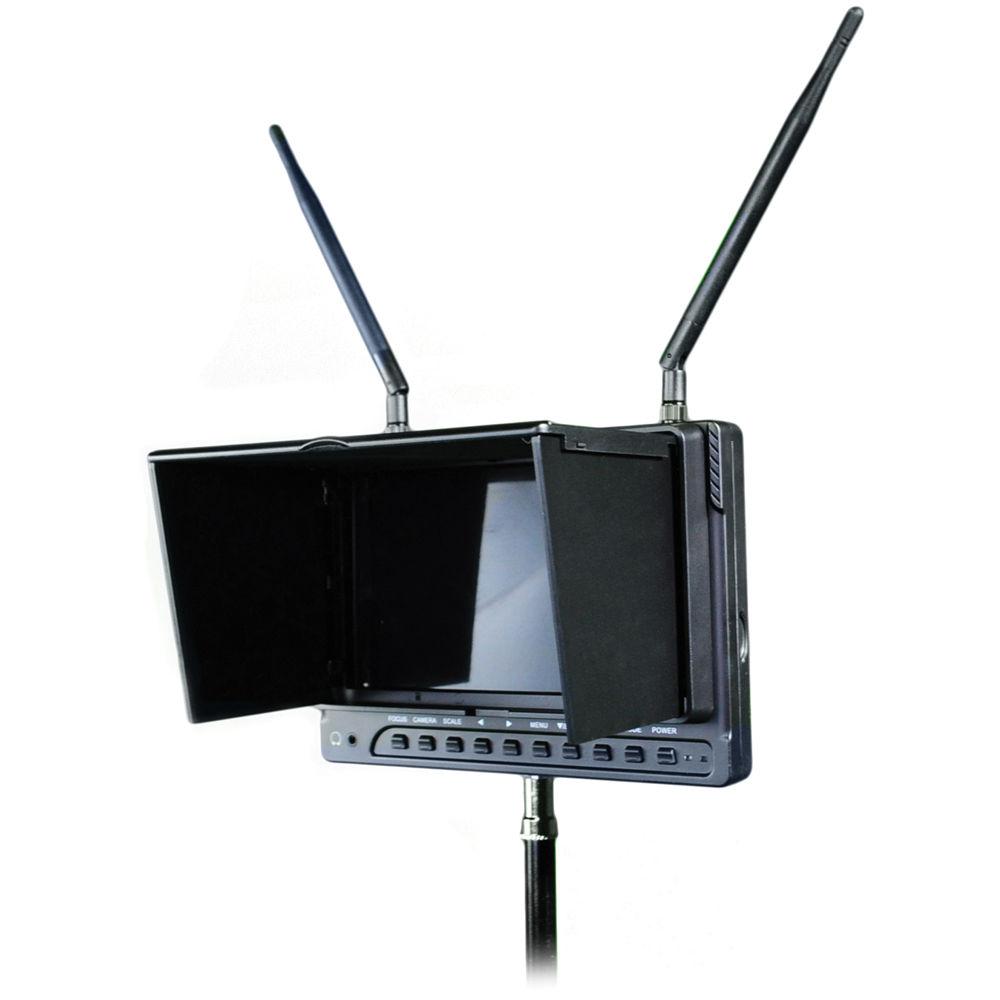

Product description The 7" Wireless FPV Monitor from AVInAir is ideal for first-person viewing and aerial imaging applications, featuring a built-in 32-channel analog video receiver. Additionally, it can be used for other wireless video applications, ranging from security and surveillance to high-mobility live broadcasting and film production. Its 7" LED backlit LCD screen features a native resolution of 1024 x 600, and it includes HDMI and composite video inputs along with its wireless connectivity. There is also a composite loop-out for connection a secondary display, such as FPV goggles. The monitor includes an integrated 2200 mAh battery that is estimated to last two hours. Additionally, a collapsible sun shade comes in the box to help enhance visible in bright sunlight. UPC: 753807557269 In the Box Avinair 7" Wireless FPV Monitor Collapsible Sun Shade AC Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair 7" Wireless FPV Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-FPV-7W Specs | | | Size | 7" | | Panel Type | LED backlit TFT LCD | | Resolution | 1024 x 600 | | Aspect Ratio | 16:9 | | Brightness | 500 nits | | Contrast Ratio | 700:1 | | Response Time | 10 ms | | Viewing Angle | Left / Right: 75°
Up / Down: 75° | | Dot Pitch | Width x Height: 0.05 x 0.15mm | | | | Supported Standards | PAL (4.43)
NTSC (3.58) | | Supported Resolutions | 50/60 Hz: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p | | | | Inputs | 1 x HDMI (standard)
1 x Composite on RCA connector
1 x Mono audio on RCA connector | | Outputs | 1 x Composite on RCA connector
1 x 3.5 mm headphone jack
1 x Speaker | | USB | 1 x Mini-USB | | | | Frequency | 5.8 GHz | | Number of Channels | 32 / 4 bands | | Range | Up to 1312' / 400 m line of sight | | Receive Sensitivity | -90 dBm typical | | Frequency Stability | ±100 ppm | | | | Mounting | 1/4"-20 threaded socket
VESA 75 x 75 cm | | Battery | Voltage:7.4 VDC
Capacity: 2200 mAh | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | Dimensions | 6.7 x 5.7 x 1.5" / 16.9 x 14.4 x 3.7 cm | | Weight | 1.2 lb / 548.8 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.1 x 8.0 x 3.4" |
