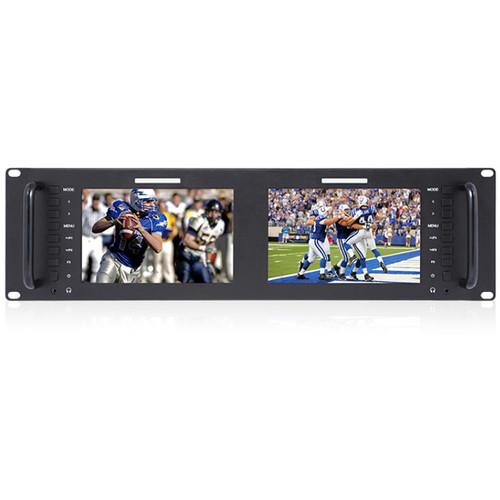

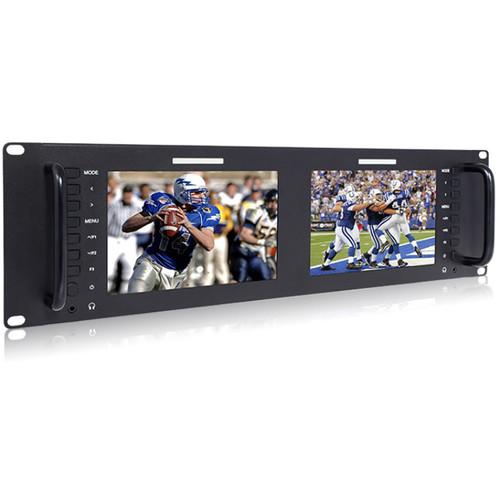

Product description The AVInAir Spectre Dual Rack Monitor feature 2 7” 1280 x 800 screens for viewing of SD, HDMI, and 3G-SDI videos. This lightweight rack monitor is suitable for all levels of TV news production, including broadcasting, special vehicle video surveillance, and post production. With a brightness output of up to 400 nits and a 178/178° viewing angle, you can see accurate and consistent images from any point of view and without brightness dots or streaking. The network control is attained by GPIO software over a single Ethernet connection.

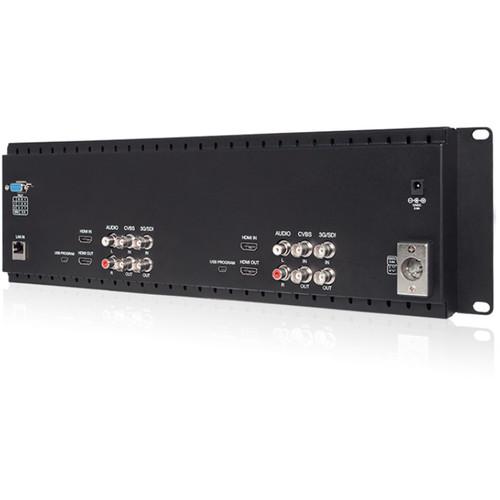

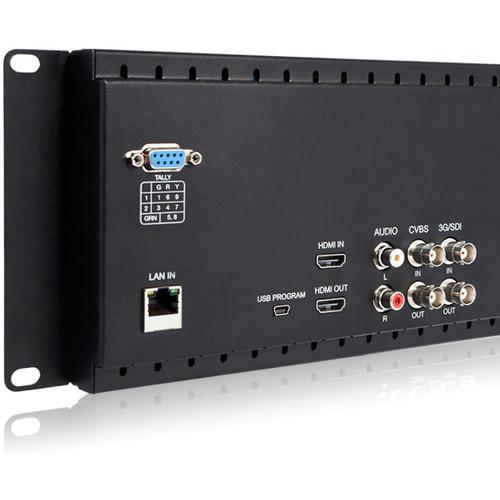

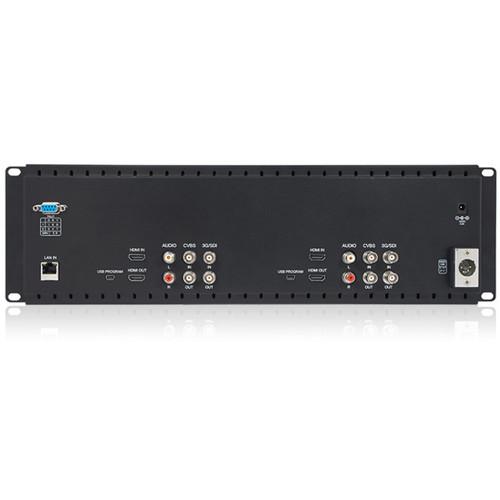

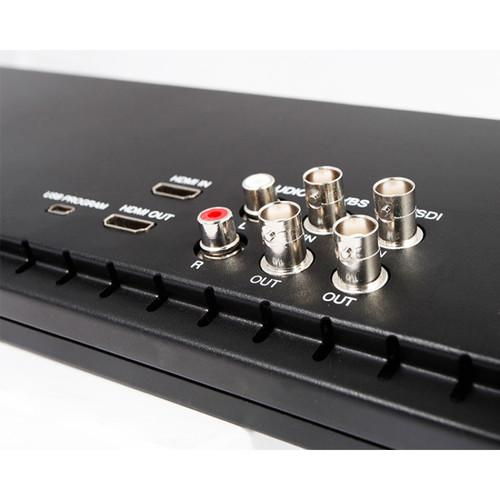

The rack monitor is built with a full metal shell and is equipped with a 4-pin XLR DC power socket, cast iron hand grips, and a variety of inputs and outputs including HDMI in/out, CVBS in/out, audio L/R, and 3G/SDI in/out. - Dual 7" IPS 1280 x 800 high-resolution screens
- HDMI, 3G/HD/SD-SDI input, and loop-through
- Peaking Focus Assist (red highlight over parts of the monochrome image in focus)
- Check Field (red, green, blue, mono)
- Safe marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image Flip (horizontal, vertical, horizontal and vertical)
- Smooth video transmission with no blue screen in case of a signal loss
- Supports composite video RCA input
- Multi-color format support for selecting the same format as your camera
- Monitoring via front panel 3.5mm stereo headphone jacks
- Built-in LED tally indicators (Red, Green, Yellow)
- Can be powered via 12 VDC power supply or standard 4-pin XLR
UPC: 602401681804 In the Box Avinair Spectre Dual Rack Monitor with HDMI, 3G/HD/SD-SDI, Video & Audio Inputs 3A Power Adapter Tally Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spectre Dual Rack Monitor with HDMI, 3G HD SD-SDI, Video & Audio Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-RMM-7X2 Specs | Screen Size | 7" (17.78 cm) | | Resolution | 1280 x 800 pixels | | Dot Pitch | 0.117 x 0.117 mm (H x V) | | Brightness | 400 cd/m² | | Contrast | 800:1 | | Viewing Angle | L/R: 89/89°
U/D: 89/89° | | Backlight | LED | | Inputs | 1 x 3G/HD/SD-SDI
1 x HDMI
1 x Video
1 x Audio (L/R) | | Output | 1 x 3G/HD/SD-SDI
1 x HDMI
1 x Video | | Control Input | 1 x Ethernet | | Modes | SDI: 480i, 576i, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HDMI: 480i, 576i, 720p (60/59.94/50/30/29/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | | Video Formats | PAL: 4.43 / NTSC: 3.58 | | Slot | Earphone | | Power Consumption | ≤20 W | | Input Voltage | 9 to 24 VDC | | Connector | 12 VDC / 4-pin XLR | | Tally | Red, Green, and Yellow | | Working Temperature | -4 to 131°F (-20 to 55°C) | | Storage Temperature | -22 to 149°F (-30 to 65°C) | | Dimensions (L x W x H) | 19 x 5.2 x 1.2" (48.26 x 13.2 x 3 cm) | | Weight | 4.17 lb (1.89 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 21.4 x 9.4 x 5.3" |
