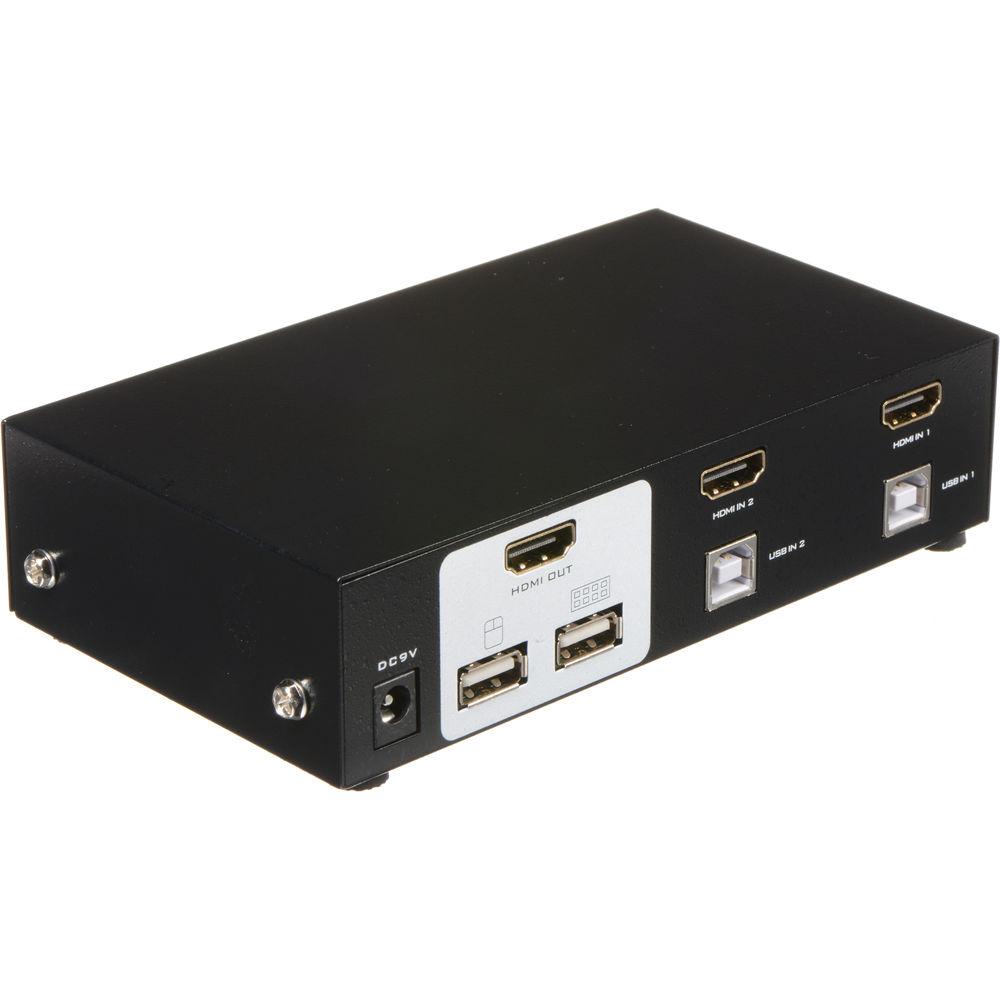

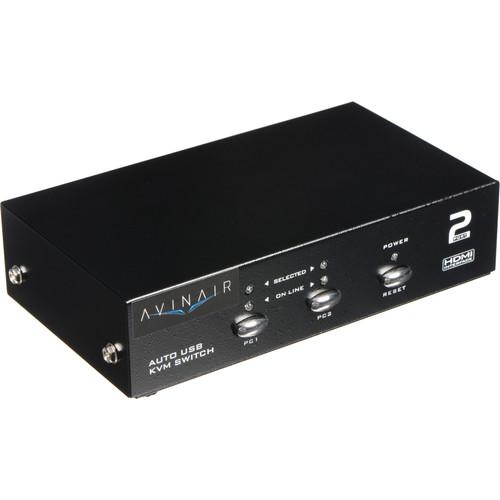

Product description Multi-Monitors: Maximizing Multitasking Read More ybeyqvductyfvuexzcxzrudvfxexszdzsbfsw Control up to two computers using the Spitfire 2-Port HDMI KVM Switch from Avinair. This KVM switch comes fully compliant with the HDMI 1.3a standard making it compatible with a wide variety of HDMI equipped displays supporting resolutions up to 1080p. Additionally, this switch comes equipped with a female USB Type A mouse console port, a female USB Type A keyboard console port, and a single female HDMI Type A video console port. Along with dedicated console ports, this switch also features dual female USB Type B keyboard/mouse KVM ports and dual female HDMI Type A video KVM ports. Once configured, selecting the computer you want to operate is simple thanks to dual push button selection and with hot plug-and-play connectivity you no longer need to shut down your switch or connected computers before disconnecting any components. - One USB or PS/2 console controls 2 HDMI interface computers
- Switch computers via front panel using push buttons and hot keys
- Fully compliant with HDMI 1.3a standard
- Supports 480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200p resolutions
- Supports wide screen resolutions
- Windows, Linux, and Mac compatible
- Auto Scan Mode for monitoring all computers and HDMI devices
UPC: 722512450479 Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire 2-Port USB HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HSW302 Specs | Computer Connections | 2 | | Port Selection | Front Panel Push buttons
Hotkeys | | Connectors | Console Ports
Keyboard: 1 X USB Type A Female
Video: 1 x HDMI Type A Female
Mouse: 1 x USB Type A Female
KVM Ports
Keyboard / Mouse: 2 x USB Type B Female
Video: 2 x HDMI Type A Female
Power
1 x DC jack | | Switches | Selected
2 x Push button | | Emulation | Keyboard / Mouse
USB | | Video | 1080p (HDTV) / 1920x1200 (DVI) | | Scan Interval | 10 seconds | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Humidity
0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 3.7 x 2.4 x 1.0" / 95 x 60 x 25 mm | | Weight | 3.5 oz / 99 g | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 10.0 x 6.05 x 3.45" |
