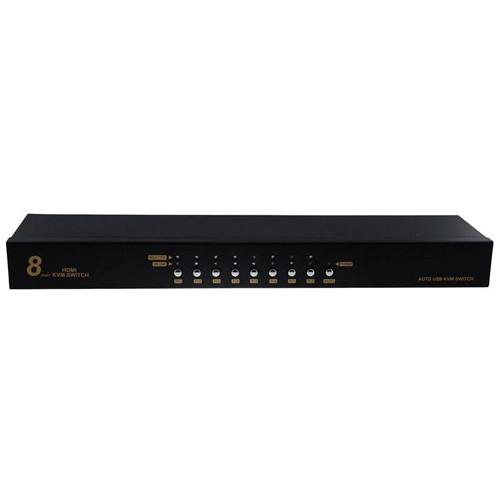

User Manual for Avinair Spitfire 8-Port HDMI KVM Switch Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire 8-Port HDMI KVM Switch
- Product category: KVM Switches Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair KVM Switches
|
User manual for the Avinair Spitfire 8-Port HDMI KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More vaxtxxeryrdswxcdzurydvrefebz Easily control 8 computers with the Spitfire 8-Port HDMI KVM Switch from AVInAir. This KVM switch is designed to support multiple HDMI interface computers and offers both USB and PS/2 connectors. On the front panel, you will find dedicated push buttons making it easy to switch between connected computers. In addition to supporting dual HDMI interface computers, this switch also comes equipped with 8 USB Type B female keyboard / mouse ports and 8 HDMI Type A female video ports. Once configured, this KVM switch is capable of supporting video resolutions up to 1080p and features a metal housing for enhanced durability. - One USB or PS/2 console controls 8 HDMI-interface computers
- Switch model: via front panel push buttons and hotkeys
- HDMI digital monitor support-fully compliant with HDMI 1.3a; also, HDCP compliant
- Enhanced video quality-supports 480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200 (DVI)
- Support wide screen resolutions
- OS support - Windows, Linux, and Mac
- Auto Scan Mode for monitoring all computers and HDMI devices
UPC: 722512450455 In the Box Avinair Spitfire 8-Port HDMI KVM Switch Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire 8-Port HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HSW308 Specs | Computer Connections | 8 | | Port Selection | Front panel push buttons, hotkeys | | Ports | Keyboard Input
1 x USB Type A Female
Video Input
1 x HDMI Type A Female
Mouse Input
1 x USB Type A Female
KVM Keyboard / Mouse Ports
8 x USB Type B Female
KVM Video Ports
8 x HDMI Type A Female | | Power | 1 x DC jack | | Buttons | 8 x Push button switch selections | | Emulation | USB emulation for keyboard/mouse | | Video Quality | 1080p (HDTV) / 1920 x 1200 (DVI) | | Scan Interval | 10 seconds | | Power Consumption | 5 VDC | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Humidity
0 to 80% non-condensing | | Housing | Metal | | Dimensions | 16.85 x 3.94 x 1.73" / 42.80 x 10.01 x 4.39 cm | | Weight | 2.8 lb / 1.8 kg | | | | Package Weight | 3.72 lb | | Box Dimensions (LxWxH) | 22.5 x 9.7 x 3.4" |
