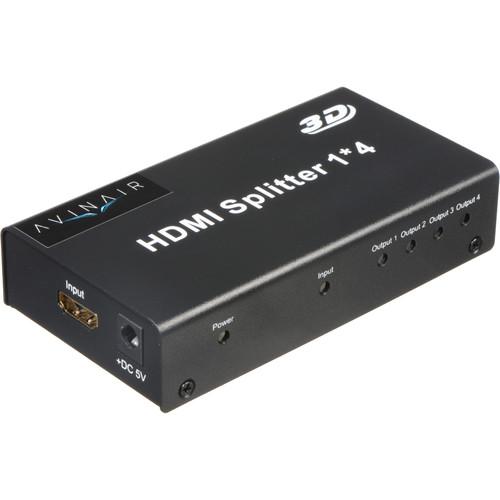

User Manual for Avinair Spitfire Pro 1 x 4 HDMI Splitter Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro 1 x 4
- Product category: Distribution Amplifiers (DA's) Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Distribution Amplifiers (DA's)
|
User manual for the Avinair Spitfire Pro 1 x 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The Spitfire Pro 1 x 4 HDMI Splitter from Avinair splits a single full HD HDMI input signal into four full HD HDMI output signals without compression. The Spitfire Pro splitter supports video resolutions up to 1080p, 12-bit deep color, 3D, and Dolby True HD & DTS-HD Master audio formats. - Four-channel full HD 1080p HDMI signal output
- Supports 1080p 3D video signal
- Supports 12-bit deep color
- Supports LCPM 7.1 and other uncompressed audio formats, such as DolbyTrue HD, DTS-master, etc.
- Supports multi-channel EDID management, ensuring maximum compatibility of video sources and display terminals
UPC: 753807557610 In the Box Avinair Spitfire Pro 1 x 4 HDMI Splitter 5 VDC 1A Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro 1 x 4 HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HD104A Specs | Output Interface | 4 x HDMI port (Type A-F) | | Input Interface | 1 x HDMI port (Type A-F)
1 x 15 VDC port | | Power Consumption | < 5 W | | Power Input | 5 VDC | | Video Resolution | Up to 1080p 60 Hz | | Audio Format | 7.1 channel audio, including digital audio formats Dolby TrueHDand DTS Master | | Input TMDS Signal | 1.2 Vp-p | | Input DDC Signal | 5 Vp-p | | Video Bandwidth | TMDS clock, up to 225 MHz, 6.75 Gbps | | HDMI Standard | HDMI 1.4b, supports 3D (1080p) | | EDID Management | Display terminals EDID management | | Indicators | Power (green)
Video link (yellow) | | Power On Delay | < 6 seconds | | Hotplug Operation | < 5 seconds | | Compliance | UL, CCC, CE, and FCC | | Dimensions | 5.0 x 2.6 x 0.9" (128 x 65 x 23 mm) | | Weight | 0.55 lb (0.25 kg) | | | | Package Weight | 0.745 lb | | Box Dimensions (LxWxH) | 7.15 x 5.8 x 1.95" |
