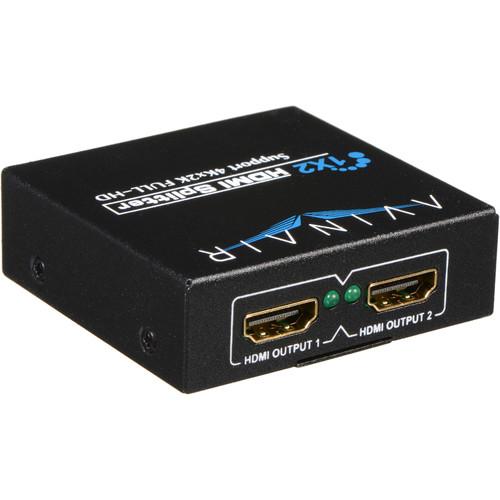

User Manual for Avinair Spitfire Pro 1x2 HDMI Splitter Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro 1x2 HDMI Splitter
- Product category: Distribution Amplifiers (DA's) Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Distribution Amplifiers (DA's)
|
User manual for the Avinair Spitfire Pro 1x2 HDMI Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The Spitfire Pro 1x2 HDMI Splitter from Avinair splits a single HDMI input signal into two HDMI output signals without compression. The Spitfire Pro splitter supports video resolutions up to UHD 4K, 12-bit Deep Color, 3D, and Dolby TrueHD, as well as DTS-HD Master audio formats. - Two-channel 4K, 2K, and 1080p Full HD HDMI signal output
- Supports 12-bit Deep Color
- Supports LPCM 7.1 and other uncompressed audio formats, such as Dolby TrueHD, DTS-Master, etc.
- Supports two-channel EDID management, ensuring maximum compatibility of video sources and display terminals
- UL, CCC, CE, FCC, and RoHS compliant
UPC: 753807557290 In the Box Avinair Spitfire Pro 1x2 HDMI Splitter 5 VDC 1A Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro 1x2 HDMI Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HD102B Specs | Input Interface | 1 x HDMI (Type A-F)
1 x 15 VDC | | Output Interface | 2 x HDMI (Type A-F) | | Power Consumption | 6 W | | Power Input | 5 VDC | | Video Bandwidth | TMDS clock, up to 225 MHz, 6.75 Gbps | | Video Resolution | Up to 3840 x 2160 30 Hz | | Audio Format | 7.1 channel audio, include digital audio formats Dolby TrueHD and DTS Master | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp | | HDMI Standard | HDMI 1.3C, HDCP 1.2, support 3D | | EDID Management | Display terminals EDID management | | Indicators | Power (green)
Video link (yellow) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Compliance | UL, CCC, FCC, CE, RoHS | | Dimensions | 2.6 x 2.4 x 0.8" / 65 x 61 x 21 mm | | Weight | 0.33 lb / 0.15 kg | | | | Package Weight | 0.545 lb | | Box Dimensions (LxWxH) | 6.85 x 4.85 x 2.25" |
