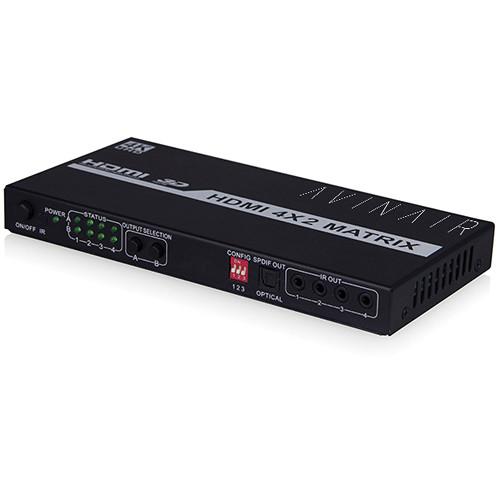

User Manual for Avinair Spitfire Pro 4 x 2 HDMI Matrix Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro 4 x 2
- Product category: Routers & Switchers Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Routers & Switchers
|
User manual for the Avinair Spitfire Pro 4 x 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The AVinAir AV-SF-HM402A Spitfire Pro 4 x 2 HDMI Matrix accepts up to 4 ultra HD HDMI input signals, and outputs up to 2 ultra HD video signals simultaneously. Any input can be selected and sent to either output. It supports a maximum resolution of 4096 x 2160 at 24 fps (4K2K) and supports HDMI 1.4. It features a 4 x 2 IR emitter and receiver matrix, with local IR control. -
- HDMI 1.4 spec
- Supports 12-bit deep color
- HDMI HDCP1.3 compatible
- Supported resolutions: 4K2K/1080p/1080i/720p/576p/480p/576i/480i
- Supported audio formats: PCM, Dolby®-AC3, DTS®7.1, DSD
- MHL input supports (Just HDMI input port 4)
- HDMI 1.4 ARC supports (Just HDMI output port A)
- HPD and CEC supports
- SPDIF digital audio output with optical port
- 4x2 IR emitter and receiver matrix embedded with local IR control
- Automatically remembers last power-off matrix status and auto-skip for unconnected inputs during power-on initialization
- EDID dynamic mixing management with maximum compatibility
- Power and video indicators
- ESD protection level HBM ±8 kV (Contact Discharge) for any input and output port
- Industrial metal case, easy to install
UPC: 753807557276 In the Box Avinair Spitfire Pro 4 x 2 HDMI Matrix 5 VDC Adapter IR remote 4 x IR Extension Transmitter Cable (59") 2 x IR Extension Receiver Cable (29.5') Limited 1-Year Waranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro 4 x 2 HDMI Matrix in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HM402A Specs | Video Format | HDMI 1.4
RGB/YUV: 24/30/36 bits per pixel
4K/2K
1080p
1080i
720p
576p
480p
576i
480i | | Audio Format | PCM
Dolby - AC3
DTS 7.1
DSD
Maximum 8 channels | | Interface (Inputs/Outputs) | Inputs
HDMI: 4 x HDMI type A female
IR: 2 x IR 3.5 mm
Outputs
HDMI: 2 x HDMI type A female
IR: 4 x IR 3.5 mm
SPDIF: 1 x TOSLINK optical port | | Input Video Signal | Amplitude: 0.5 to 1.0 volts p-p
DDC Signal: 5 volts p-p (TTL) | | Cable Distance | Input with 26 AWG Cable
≤16' / 5 m
≤32' / 10 m | | Indicator LEDs | Power: Green
Matrix Status: Yellow | | Temperature Range | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F /-20 to 60°C | | Compliance | FCC
CE | | Power | Voltage: 5 VDC
Consumption: 1.85 W | | Dimensions | 7.9 x 3.7 x 0.87" / 201 x 94 x 22 mm | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 8.9 x 7.1 x 2.1" |
