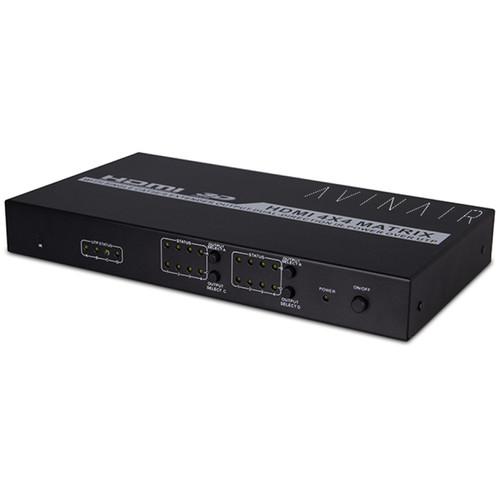

User Manual for Avinair Spitfire Pro 4x4 HDMI Matrix Extender over Cat5e 6 Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro 4x4 HDMI Matrix
- Product category: Routers & Switchers Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Routers & Switchers
|
User manual for the Avinair Spitfire Pro 4x4 HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description Featuring four HDMI and four RJ45 outputs, the AVInAir Spitfire Pro 4x4 Matrix lets you simultaneously output locally and remotely (1080p up to 230 ft over Cat6 / 170 ft over Cat5e) to compatible Spitfire Pro receivers. A true matrix extender, it allows you to output any source via a single output or all outputs. Make your selections via LAN, RS-232, dual direction IR control, or the front panel.
This extender also offers convenient power features. It carries power over UTP, so the receiver side requires no power adapters, and it automatically remembers the matrix status at power-off and auto-skips unconnected inputs during power-on. - Key Features
-
- Four HDMI and four RJ45 simultaneous outputs
- Any input to any or all outputs
- Extend 1080p up to 230 ft over Cat6 / up to 170 ft over Cat5e
- Control via LAN, RS-232, dual direction local IR, or the front panel
- Carries power over UTP to receiver side
- Automatically remembers matrix status at power-off
- Auto-skips unconnected inputs during power-on
- PCM, Dolby-AC3, DTS 7.1, and DSD audio support
- HDMI 1.3 interface standard
- HDMI 1.4 3D function support
- HDCP 1.2 compliant
- EDID dynamic mixing management
- Cat5e/6 port EDID call back support
- ESD protection level HBM ±8 kV (Contact Discharge) for any input and output port
- Industrial metal case
UPC: 753807557245 In the Box Avinair Spitfire Pro 4x4 HDMI Matrix Extender over Cat5e/6 12 VDC, 4A Power Adapter IR Remote Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro 4x4 HDMI Matrix Extender over Cat5e 6 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HM404A Specs | Interface | 4 x HDMI type A inputs, female
4 x HDMI type A outputs, female
4 x Cat5e/6 RJ45 outputs
4 x IR 3.5 mm outputs
4 x IR 3.5 mm inputs
1 x RS-232 DB9 port
1 x LAN RJ45 port
1 x 12 VDC power input | | Resolutions Supported | 1080p, 1080i, 720p, 576p, 576i, 480p, 480i | | HDMI Standard | HDMI 1.3 (with HDMI 1.4 3D function support) | | HDCP Compliant | HDCP 1.2 | | Input Video Signal | 0.5 - 1 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Supported Audio | PCM, Dolby-AC3, DTS 7.1, DSD, maximum eight channels | | Max. HDMI Cable Distance | ≥50 ft (15 m) Using 26 AWG cabling
Can be extended with amplifier in most cases | | Max. Cat5e/6 Cable Distance | Cat5e:
Up to 170 ft (50 m) @ 1080p
Up to 230 ft (70 m) @ 1080i/720pCat6:
Up to 230 ft (70 m) @ 1080p
Up to 300 ft (90 m) @ 1080i/720p | | LED Indicators | Power (Green)
Extender output connection status (Green)
Matrix status (Yellow) | | IR Frequency | 38 KHz | | ESD Level | HBM ±8 kV (Contact discharge) | | Housing | Industrial metal case | | Compliance | FCC, CE | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Power Consumption | < 30 W (With PoE function turned on) | | Dimensions | 11.0 x 6.0 x 1.6" (28 x 15 x 4 cm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 18.4 x 9.7 x 3.7" |
