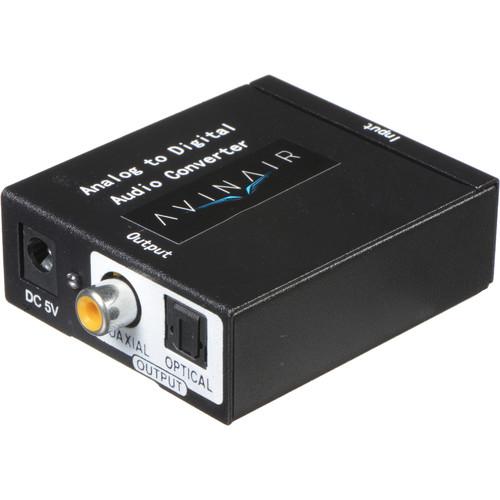

User Manual for Avinair Spitfire Pro Analog to Digital Audio Converter Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro Analog to Digital
- Product category: AD/DA Converters Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair AD/DA Converters
|
User manual for the Avinair Spitfire Pro Analog to Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The Spitfire Pro Analog to Digital Audio Converter from AVInAir is a two-channel audio converter offering simple setup and operation for use in home theater, DJ rigs, and recording studios. It converts a two-channel analog input to two stereo digital outputs. The digital output is a 24-bit/48 kHz, uncompressed LPCM (linear pulse code modulation) signal.The converter’s inputs are stereo analog RCA and 1/8” (3.5mm) jacks. Its outputs are stereo digital TOSLINK and coaxial connectors. The compact enclosure is metal for increased durability. The converter is designed to transmit signals free of electromagnetic noise.There are no parameters to configure. Simply make the necessary connections, then power-on the unit via the supplied 9 VDC power supply. -
- Converts a 2-channel analog input to two stereo digital outputs
- Stereo analog inputs: RCA (stereo, L/R) and 1/8" (3.5mm)
- Stereo digital outputs: TOSLINK and coaxial
- Uncompressed 24-bit LPCM (linear pulse code modulation) output signal
- 48 kHz sample rate
- Electromagnetic noise-free signal transmission
- No parameters to configure
- Metal enclosure
- Compact size
- Requires 9 VDC power supply (included)
UPC: 722512450295 In the Box Avinair Spitfire Pro Analog to Digital Audio Converter 9 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro Analog to Digital Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-ADA202A Specs | Inputs | 2 x analog RCA coaxial (L/R)
1 x analog 1/8" (3.5 mm) stereo mini-jack | | Outputs | 1 x digital RCA coaxial
1 x digital TOSLINK optical | | Bit Depth | 24-bit | | Sampling Rate | 48 kHz | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% relative humidity (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 90% relative humidity (no condensation) | | Power Requirements | 9 VDC power supply | | Enclosure Material | Metal | | Dimensions (L x W x H) | 2.0 x 1.6 x 1.0" / 51.1 x 40.9 x 25.9 mm | | Weight | 0.22 lb / 0.1 kg | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.8 x 5.0 x 2.2" |
