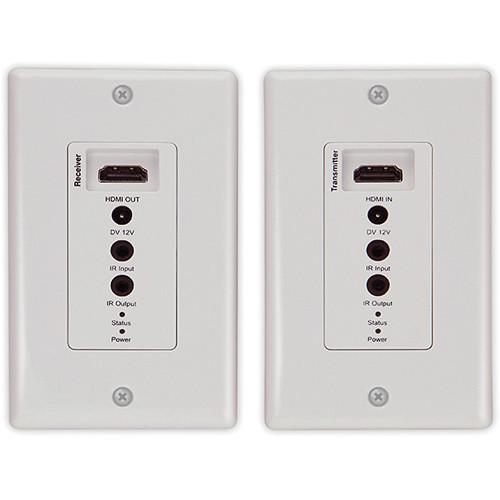

User Manual for Avinair Spitfire Pro HDMI over Cat 5e 6 KVM with POE Extender Kit Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro HDMI over Cat
- Product category: Video Extenders & Repeaters Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Video Extenders & Repeaters
|
User manual for the Avinair Spitfire Pro HDMI over Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The Spitfire Pro HDMI (HDMI/USB/IR) over Cat 5e/6 KVM with POE Extender Kit from Avinair is comprised of a local transmitter unit and a remote receiver unit. The transmitter sends digital 1080p 3D video, audio, and control signals to the receiver via a single Cat 5e/6 cable. The receiver separates and rebuilds the signals, and outputs them through an HDMI interface to a multimedia display, which can be up to 170' away from the video source. The Spitfire Pro also supports bi-directional remote IR, power over UTP, and EDID call back. Both the input and the output are HDCP 1.2 compatible. This extender features POE. - Extending distance is 170' at resolutions 1080p 3D or 1920x1200 60 fps, and 270' at 1080i / 720p through single Cat 5e cable
- Supports audio formats, Dolby True HD, DTS-master, etc.
- Supports 3D signals, including Frame Packing, Side-by-Side, Top-to-Bottom, and others.
- Supports CEC pass through
- VESA DDC and hot swap technology (HPD)
- Supports power over UTP cable; transmitter and receiver run on one single 12 VDC power supply
- Can be cascaded to increase extending distance
- Industrial metal case, easy to install
UPC: 753807557511 In the Box Avinair Spitfire Pro HDMI (HDMI/USB/IR) over Cat 5e/6 KVM with POE Extender Kit 2 x Remote IR Blaster with 11.8" Cable 2 x IR Receiver with 11.8" Cable 12 VDC 1A Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro HDMI over Cat 5e 6 KVM with POE Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HDC50E Specs | Resolution and Distance | Over Cat 5e:
1080p @ 170' (50 m)
720p / 1080i @ 270' (80 m)
Over Cat 6:
1080p @ 270' (80 m)
720p / 1080i @ 330' (100 m) | | Video Bandwidth | Maximum TMDS clock frequency 165 MHz, 4.95 Gbps | | Audio Formats | 8-channel, supports Dolby TrueHD and DTS Master | | TDMS Signal | Input: 1.2 V (point to point) | | Input DDC signal | 5 V (point to point) | | HDMI | HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID | | IR Remote | 38 kHz | | ESD | HBM +8 or -8 kV (contact discharge) | | Temperature (Operating) | 32 to 104°F (0 to 40°C) | | Temperature (Non-Operating) | -4 to 140°F (-20 to 60°C) | | Compliance | FCC, CE, and RoHS | | Indicators | Red, power
Blue, video link | | Connectors | Transmitter:
1 x HDMI, input
1 x 3.5 mm, IR output
1 x 3.5 mm, IR input
1 x RJ45, Ethernet interface
1 x 12 VDC power plug
Receiver:
1`x HDMI, output
1 x 3.5 mm, IR output
1 x 3.5 mm, IR input
1 x RJ45, Ethernet interface
1 x 12 VDC power plug | | Dimensions | 4.25 x 1.81 x 1.38" (108 x 46 x 35 mm) | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 9.6 x 6.1 x 2.5" |
