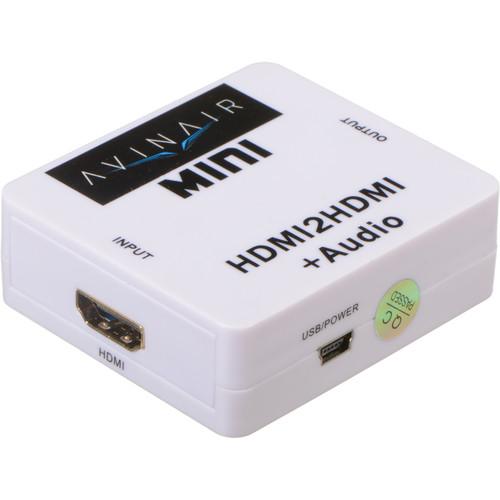

User Manual for Avinair Spitfire Pro HDMI to HDMI Audio Converter Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro HDMI to HDMI
- Product category: Embedders & De-Embedders Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Embedders & De-Embedders
|
User manual for the Avinair Spitfire Pro HDMI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description Ensure equipment compatibility with Avinair's Spitfire Pro HDMI to HDMI Audio Converter. HDMI signals carry embedded audio and in order to use HDMI with equipment that doesn't support the HDMI standard, this converter will de-embed the HDMI audio, even 5.1 multi-channel audio, and convert it to SPDIF and analog for older audio receivers, mixers, and amplifiers. HDMI standards up to v1.3 are supported, so 1080p and 720p HD sources, like Blu-ray, can be passed through, as can SD sources, like DVD. The HDMI passthrough lets you connect your HDMI-compatible display or projector. UPC: 722512450639 In the Box Avinair Spitfire Pro HDMI to HDMI Audio Converter (Plastic Case) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro HDMI to HDMI Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-HHA088B Specs | Inputs | 1 x HDMI Type A | | Outputs | 1 x HDMI Type A
1 x Optical, SPDIF
1 x 3.5mm, stereo analog audio | | Video Resolutions | 1080p
1080i
720p
576p
480p
NTSC
PAL | | Transmission Distance | 66' / 20 m | | Signal Characteristics | I/O TMDS Signal: 0.5-1.5V p-p (TTL)
1/O DDC Signal: 5V p-p (TTL) | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 5 VDC, 1 A | | Environmental | Operating Temperature: 5 to 131°F / -15 to 55°C
Humidity: 5-90% RH, non-condensing | | Dimensions | 3.3 x 2.4 x 0.8" / 85 x 62 x 21 mm | | Weight | 4.6 oz / 132 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 4.8 x 4.6 x 4.3" |
