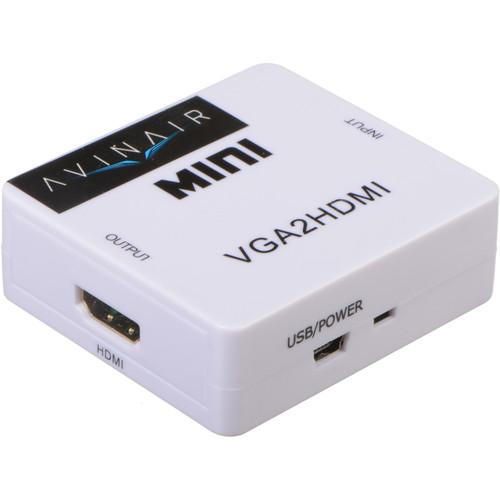

User Manual for Avinair Spitfire Pro VGA to HDMI Mini Converter Click to enlarge the picture
Contents of the user manual for the Avinair Spitfire Pro VGA to HDMI
- Product category: Signal Converters Avinair
- Brand: Avinair
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avinair Signal Converters
|
User manual for the Avinair Spitfire Pro VGA to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avinair product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avinair user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avinair product will considerably shorten its lifespan!
|
Product description The Spitfire Pro VGA to HDMI Mini Converter from AVInAir turns a VGA input signal into digital HDMI output by upscaling to any desired resolution up to Full 1080p HD. Enclosed in a plastic case, this converter is compatible with any computer, TV, or device with VGA, and/or HDMI inputs, and has seamless plug-and-play capability, as it auto-scales to any display's native resolution. -
- Plug-and-play capability allows automatic installation without setting
- HDMI 1.3 compliant
- No need for power supply
- HDCP pass-through
- VGA input support up to 1920 x 1080 60 Hz Full HD signal
UPC: 722512450257 In the Box Avinair Spitfire Pro VGA to HDMI Mini Converter (Plastic Case) 5 VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avinair Spitfire Pro VGA to HDMI Mini Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvinair AV-SF-VGH101B Specs | Input Ports | 1 x VGA, 1 x 3.5 mm Audio | | Output Port | 1 x HDMI | | Input Video Signal | 0.5 to 1.0 vpp | | Input DDC Signal | 5 vpp (TTL) | | Video Output Ports | HDMI 1.2a | | VGA Support | 640 x 480 (60 Hz), 1024 x 768 (60 Hz), 1280 x 720 (60 Hz), 1280 x 768 (60 Hz), 1280 x 800 (60 Hz), 1280 x 960 (60 Hz), 1280 x 1024 (60 Hz), 1366 x 768 (60 Hz), 1440 x 900 (60 Hz), 1600 x 1200 (60 Hz), 1920 x 1080 (60 Hz) | | SDTV/HDTV Timing Modes | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | Operating Frequency | Up to 165 MHz | | Video Amplifier Bandwidth | 1.65 GB/s / 165 MHz | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 95% RH (no condensation) | | External Power Supply | 5 VDC | | Dimensions (L x W x H) | 4.8 x 3.0 x 1.2" (12 x 7.6 x 3.0 cm) | | Weight | 0.45 lb (0.20 kg) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.1 x 3.6 x 1.2" |
