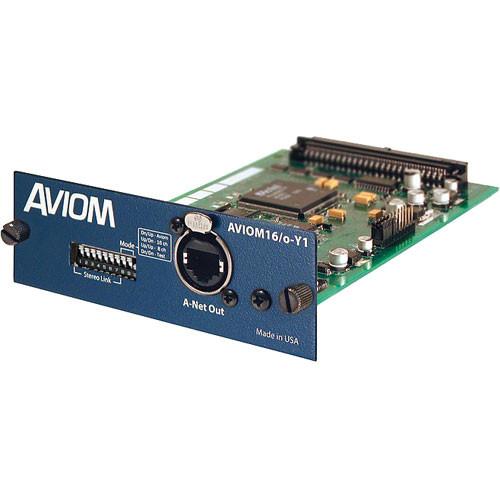

User Manual for Aviom 16 o-Y1 A-Net Card for Yamaha Digital Products Click to enlarge the picture
Contents of the user manual for the Aviom 16 o-Y1 A-Net Card for
- Product category: Networked Audio Systems Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Networked Audio Systems
|
User manual for the Aviom 16 o-Y1 A-Net Card for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|
Product description The Aviom 16/o-Y1 A-Net Card provides a direct digital interface between Aviom Pro16 series products, such as the A-16II and A-16R personal mixers, and all Yamaha mix consoles and mix engines that support the Mini-YGDAI format. This eliminates the need for an analog input module.
With the Y1 card, you can digitally configure an Aviom monitoring system from the Yamaha's user interface. Rear-panel DIP switches provide stereo link configuration of each channel pair. Mode switches on the card allow it to be used with Yamaha digital mixers that support only 8-channel expansion cards, such as the PM1D.
CAT5 cable lengths of up to 500' can be used, and the card is also compatible with the AN-16/o output module and the A-16D and A-16D Pro A-Net distributors. Note: The Original A-16 Personal Mixer is Not Compatible with This Card. - Mini-YGDAI Format is Compatible with Most Current Yamaha Digital Consoles
- One 16-channel A-Net Output
- Supports Sample Rates from 44.1kHz to 48kHz, +/-10%
- Audio Outputs can be Assigned Directly from the Yamaha Interface
- Channel Link DIP Switches Allow Stereo Operation
- Mode Select Switch Allows Either 16-channel or 8-channel Operation (Required for PM1D)
In the Box Aviom 16/o-Y1 A-Net Card for Yamaha Digital Products 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom 16 o-Y1 A-Net Card for Yamaha Digital Products in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom AVIOM16/O-Y1 Specs | Output | 1 x Category 5 (RJ45 Connector) | | Interface Format | Yamaha mini-YGDAI | | Sample Rate | 44.1kHz - 48kHz (+/-10%) | | Dimensions | 4.75 x 6.25 x 1.5" (121 x 159 x 38mm) | | Weight | 0.8 lbs (0.4 kg) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.4 x 6.7 x 3.4" |
