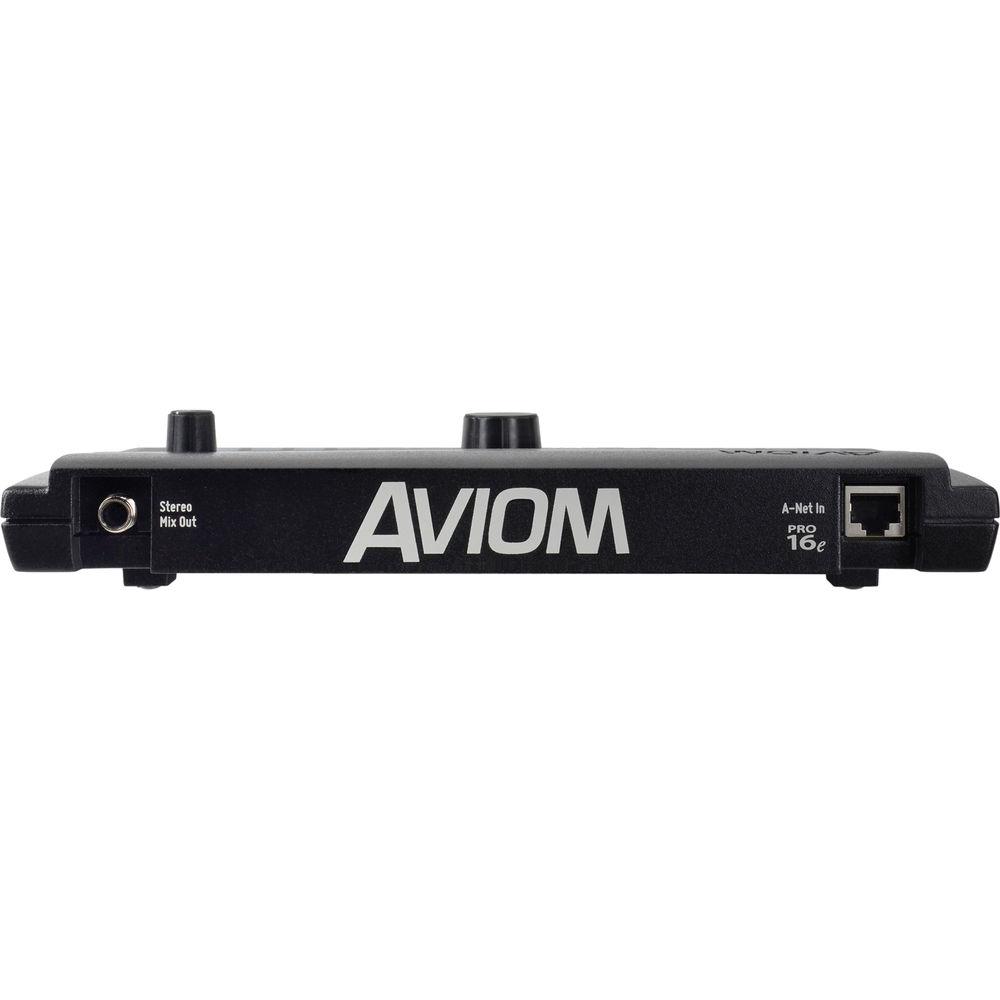

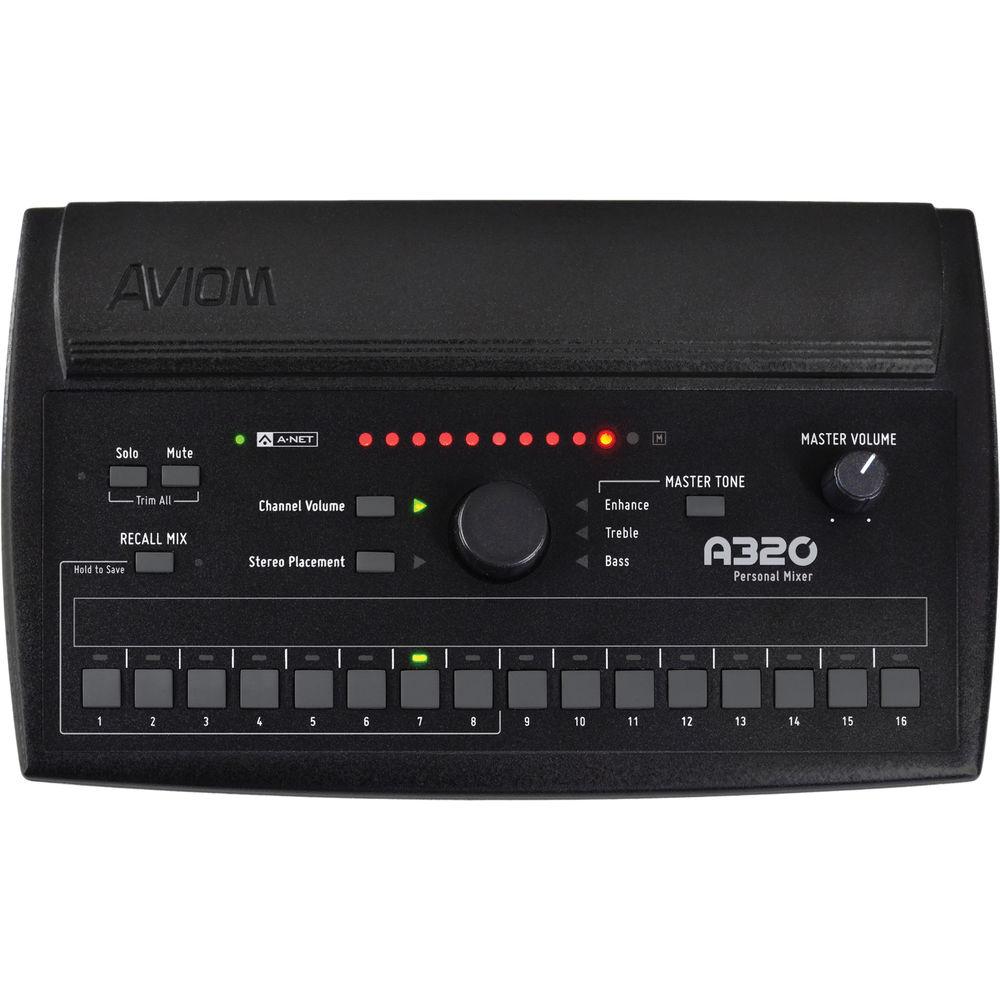

User Manual for Aviom A320 Personal Mixer Click to enlarge the picture
Contents of the user manual for the Aviom A320 Personal Mixer
- Product category: Analog Recording Mixers Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Analog Recording Mixers
 |
User manual for the Aviom A320 Personal Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|
Product description The A320 Personal Mixer from Aviom gives performing and recording musicians simple, intuitive control over their monitor mixes, allowing them to dial in the perfect mix themselves, without having to tell an engineer to change the mix for them.
Offering three-band master tone controls optimized for in-ear monitors, and the ability to monitor 16 mono or stereo sources with per-channel volume and stereo placement, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing.
The A320 also provides the musician a way to maintain specific mix settings consistently, night after night, and show after show. The unit includes space for eight mix presets, so you can save the perfect mixes for each tune, and recall them at will, to ensure reliable results in your monitors every time. - How It Works:
- Whether you're adding to an existing Aviom personal mixing system or building a new one, getting up and running with the A320 is designed to be a breeze. For older systems, the A320 runs in Pro16 mode, with 16 channels spread across the interface and stereo sources occupying adjacent channel buttons, like on the popular A-16II Personal Mixer. For systems with more channels, the A320 switches into Pro16e mode, utilizing the full power of its 32-channel mix engine to support any combination of 16 mono or stereo sources
In the Box Aviom A320 Personal Mixer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom A320 Personal Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom A320 Specs | Audio Output | 1/4" TRS stereo, headphone or line level | | Output Connector | Tip: Audio Left
Ring: Audio Right
Sleeve: Ground | | Network | A-Net I/O: 1x A-Net In, RJ45 connector; supports Pro16 and Pro16ePro16e A-Net: Use Cat-5e (or better) cable, maximum 400 ft (122 m) between devices, supports power Over A-NetCat-5 Cable: Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits | | D/A Conversion | 44.1 / 48 kHz, 24-bit | | Stereo Linking | Stereo Link, per channel pair;Set at the input module;Variable pan per mono channel or pan/spread per stereo channel pair | | Headphone Output | 275 mW per side into 50 ohms (both sides driven) | | Output Impedance | 5 ohm | | Frequency Response | 3 Hz - 22 kHz +0.2 dB/-3 dB at 50 Ohms | | THD + N | < 0.003% | | Output Voltage | 24 VDC, 0.5 amp; transmitted over Cat-5e cable | | Signal to Noise Ratio | -106 dB (measured with zero data into all channels) | | Latency | 0.880 msec (measured from analog input to analog output) | | Power | 24 VDC, 0.5 amp; Power is supplied over the Cat-5 cable when connected to an Aviom A-Net Distributor | | Dimensions | 10.26 x 6.14 x 1.91" (260.60 x 155.95 x 48.51 mm) | | Weight | 1.3 lb (0.59 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 14.6 x 9.1 x 5.4" |
