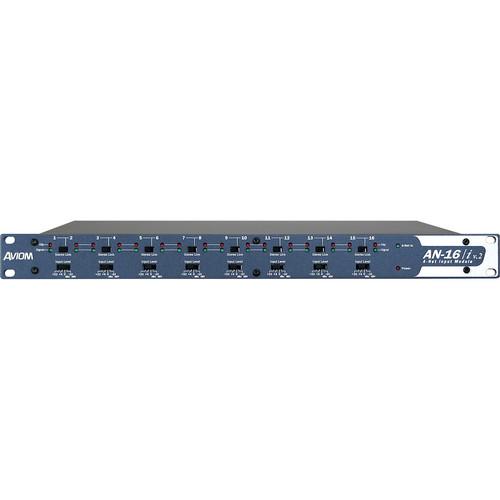

User Manual for Aviom AN-16 i V.2 Input Module Click to enlarge the picture
Contents of the user manual for the Aviom AN-16 i V.2 Input Module
- Product category: Networked Audio Systems Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Networked Audio Systems
|
User manual for the Aviom AN-16 i V.2 Input Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|
Product description The AN-16/i v.2 Input Module from Aviom is used to connect up to 16 balanced line-level inputs from a console’s direct outputs, insert points, aux sends, and/or submixes to a personal mixing system or digital snake. When used alone, one AN-16/i v.2 Input Module can generate a single 16-channel Pro16 A-Net signal. The module converts the 16 line-level analog audio channels into uncompressed 24-bit, 48kHz digital audio data.The input module includes an A-Net input jack for connecting up to 3 additional Pro16 series input devices. It merges its analog inputs with the incoming A-Net stream, creating the expanded Pro16e digital audio stream utilized by Aviom’s A360 Personal Mixer. The digital audio data is output on standard Cat-5e cables.The front panel of the input module has 8 4-position input level/gain sensitivity switches, stereo channel link switches for every channel pair, and per-channel signal present and clip LEDs. Digital network connections on the rear panel include one A-Net in jack and one A-Net out jack.The rear panel of the AN-16/i v.2 Input Module also features 16 analog audio inputs with balanced 1/4” TRS jacks. An audio thru jack for each input allows the module to be inserted seamlessly into an existing audio signal path. The input module can be used with any line-level analog audio signal such as console direct outs, inserts, or auxiliary sends.The AN-16/i v.2 Input Module works in conjunction with Aviom’s modular Pro16 digital snake and audio distribution system products to support a range of flexible configurations including 16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32, and 48x16. All configurations support an unlimited number of digital splits with no loss in audio quality. - Converts 16 line-level analog audio channels to a Pro16e A-Net digital stream
- A-Net In with 4-position slot range selector switch for generating Pro16e A-Net for A360 personal mixers
- 16 balanced line-level inputs (1/4" TRS connectors)
- 16 balanced line-level Thru jacks (1/4" TRS connectors)
- 48 kHz, 24-bit A/D converters
- 4-position gain sensitivity switch per channel pair (+22, +4, 0, -10dB)
- Stereo Link switches for each channel pair
- Signal present and clip LEDs per channel
In the Box Aviom AN-16/i V.2 Input Module Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom AN-16 i V.2 Input Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom AN-16/i Specs | Input | Audio Inputs: 16, balanced line-level
TRS Inputs: Tip: Audio +, Ring: Audio -, Sleeve: Ground
TRS Thru: Tip: Audio +, Ring: Audio -, Sleeve: Ground | | A/D Conversion | 48 kHz, 24-bit | | Input Level | +22dBu, +4dBu, 0dBu, -10dBV
Maximum Input Level: +22dBu | | Gain | Gain Settings: 4-position gain switch, per channel pair | | Metering | 2 LEDs per channel
Green: Signal present
Red: Clip | | Operating | Stereo Operation: Stereo link, per channel pair
2-position switch (mono, stereo) | | Input Impedance | 17.8 kΩ | | Frequency Response | 4 Hz to 22 kHz +0.2dB/-3dB | | THD + N | < 0.003% | | Crosstalk | -90dB | | Signal to Noise Ratio | 90dB typical (Unweighted), A/D to D/A
Measured from AN-16/i v.2 to AN-16/o output module | | Bit Error Rate | 10-12 | | Digital Output | 1 x A-Net out; RJ45 connector | | Digital Input | 1 x A-Net in; RJ45 connector | | A-Net Input/Output | A-Net Pro16e Slots: 4-position Slot Range switch assigns the A-Net output to occupy Slots 1 to 16, 17 to 32, 33 to 48, or 49 to 64 A-Net uses unshielded CAT-5e UTP (or better) cable. | | Cable Length | A-Net Cable Length: 400.0' (122.0 m) | | Latency | <0.880 ms (measured from analog input to analog output) | | Power Supply | External, DC, universal switching type | | Input Voltage | 100 to 240 V, 50/60 Hz, 30 VA | | Output Voltage | 18 to 24 VDC, 0.5 A | | Plug | Plug Size: 0.07" (2.00 mm) | | Dimensions (WxD) | 19.0 x 5.7" (482.6 x 146.0 mm) | | Height | 1U high | | Weight | 6.8 lb (3.0 kg) | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 22.0 x 9.5 x 4.1" |
