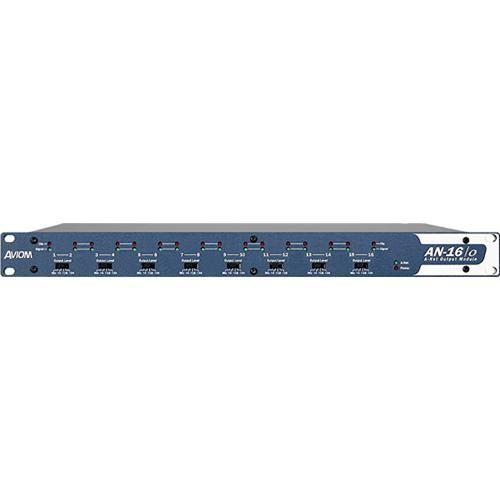

Product description The Aviom AN-16/o V.4 16-Channel Analog Output Module adds an additional 16 output connectors to the Aviom Pro16 series digital network snake systems. This flexible, digital output module features 16 outputs on balanced DB25-pin connectors and switchable output level controls with +24dBu, +18dBu, +4dBu, and mic level switched on each channel.Pro16 series audio quality and flexible routing is uncompromised with 24-bit D/A converters and variable sample rates from +/- 44.1kHz to 192kHz. Cat-5e connections seamlessly integrate the AN-16/o V.4 with Aviom's Pro16 Network systems for up to 500 feet, and makes the output module ideally suited for providing additional outputs to FOH consoles, multi-track recorders and other applications. - 16 balanced mic- or line-level outputs
- Four-position output level switch per channel pair
- +24, +18, and +4dBu line-level, or mic-level outputs
- Converts A-Net digital stream to 16 analog audio channels
- 48kHz, 24-bit D/A converters
- Unlimited splits and digital copies
- Optional AN-16SBR System Bridge combines up to 4 A-Net streams onto one cable
- Cat-5e cable runs up to 500 feet (150 meters) between devices
In the Box Aviom AN-16/o V.4 16-Channel Analog Output Module for Pro16 Digital Snake Network System 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom AN-16 o V.4 16-Channel Analog Output Module for Pro16 Digital Snake Network System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom AN-16/O V.4 Specs | ADC | 24-Bit | | DAC | 24-Bit | | Sample Rates | 1x: 39.7-52kHz
2x: 79.4-104kHz 4x: 158.8-208kHz | | Analog Outputs | DB25 multipin connectors (2); Tascam analog audio pinout | | Digital Inputs | Aviom A-Net | | Digital Outputs | Aviom A-Net | | Other Connectors | RS232 Remote
MIDI IN and Out | | Maximum Output Level | Variable: +24dBu, +18dBu, +4dBu, and Mic | | Frequency Response | 3dB: 2Hz and 23kHz
+/- 0.5dB: 10Hz-22kHz (at 1x sample rate) | | THD + N | < .002% at -10dBFS | | Dimensions | 19 x 5.7 x 1" (482.6 x 146 x 25.4mm) | | Weight | 6.8lb (3.8 kg) | | | | Package Weight | 6.75 lb | | Box Dimensions (LxWxH) | 22.1 x 9.6 x 5.8" |
