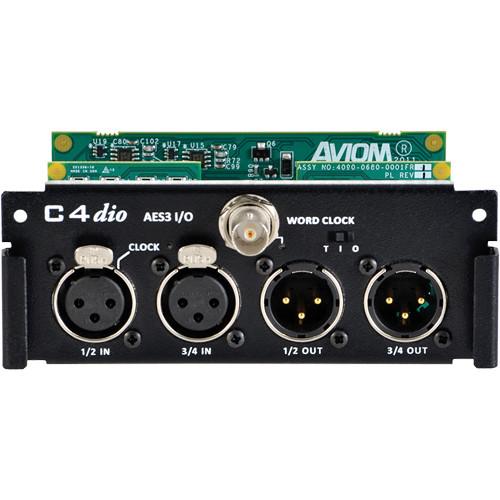

User Manual for Aviom C4dio Digital Input Output Card Click to enlarge the picture
Contents of the user manual for the Aviom C4dio Digital Input Output Card
- Product category: Audio Patchbays Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Audio Patchbays
|
User manual for the Aviom C4dio Digital Input Output Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|
Product description The C4dio Digital Input/Output Card from Aviom is a 4-input/4-output AES3 digital card for the AllFrame Multi-Modular I/O System. Up to six C4dio cards can be installed in the F6 (the AllFrame host device) in any combination with the other available AllFrame cards to build a custom Pro64 I/O device for a digital snake or audio network. With a C4dio card installed in an AllFrame, the Pro64 network can be locked to external clock sources connected to the card's AES3 XLR jacks or the dedicated BNC Word Clock jack. - C4dio card allows the six-slot F6 Modular I/O Frame to be configured as a 24x24 I/O device when six C4dio cards are installed. Each XLR connector on the C4dio carries a pair of digital channels, as per the AES3 specification, providing high channel count I/O in a minimal amount of space.
- Optional sample rate converters can be turned on per input pair from within the Pro64 Network Manager software to allow devices with digital outputs, but without Word Clock connections, such as CD and DVD players to be used as input sources.
- The C4dio can be clocked by the distributed Pro64 network clock, an AES3 digital signal connected to XLR input 1/2, or an external Word Clock signal connected to the BNC connector. The system clock can be output locally to other devices via the BNC Word Clock connector, and is also embedded in the AES3 outputs.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom C4dio Digital Input Output Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom C4DIO Specs | Channels | 4 AES3 inputs; 4 AES3 outputs | | Inputs | 2 x XLR female, Channels 1/2 and 3/4;
1 x bi-color clock LED for Channels 1/2 | | Outputs | 2 x XLR male, Channels 1/2 and 3/4 | | Word Clock I/O | 1 x BNC connector
1 x bi-color LED
3-position slide switch allows the BNC jack to be set for Word Clock Out (O), Word Clock In (I), or Word Clock In with Termination (T) | | Wordclock Input | Sensitivity: 0.2 to 5Vp-p
Impedance: 75 Ω /70 kΩ selectable | | Clock Sources | Internal (Network), Work Clock, AES3;
AES3 Clock connects to Inputs 1/2 only | | Attenuation | Well below AES3 Jitter Transfer Function Mask | | Sample Rates | 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz | | Sample Rate Conversion | Can convert input sample rates between 28.0 kHz and 216.0 kHz to any supported system sample rate
THD+N: less than 130 dB for full scale signals | | Time | Sample Rate Conversion Time: Less than 0.42 ms (at all system sample rates) | | Dimensions | 5.2 x 1.9 x 3.01" (32.08 x 48.26 x 76.45 mm) | | Weight | 0.5 lb (0.22 kg) |
