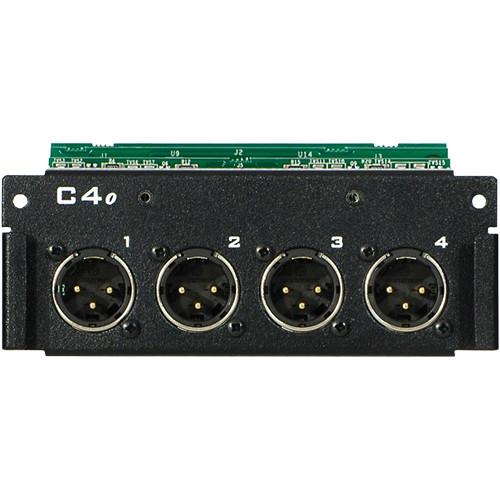

Product description The C4o Analog Output Card from Aviom is used with the AllFrame Multi-Modular I/O System. The C4o can be installed in any frame, such as the six-slot F6 Modular I/O Frame. Network and audio settings for the C4o outputs can be configured using the Pro64 Network Manager control application. Five maximum output level settings allow the XLR outputs on the C4o to be connected to virtually any professional audio device.Each C4o channel’s network routing and output level can be saved as part of a Pro64 Network Manager project, scene, and/or device preset for ultimate programming convenience. The C4o can be installed and configured by the user making a multi-F6 installation even more flexible and cost-effective. - Four high-quality mic- or line-level analog outputs
- Simplified routing using the Pro64 Network Manager PC control application
- Choice of five maximum output level settings selectable per-channel: +28, +24, +18, +4, or Mic
Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom C4o Analog Output Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom C4O Specs | Channels | 4 balanced outputs Mic or line level | | XLR Connections | Pin 1: Shield; Pin 2: Hot; Pin 3: Cold | | Nominal Output Levels | +28, +24, +18, +4 dB, and Mic | | Output Impedance | 450 Ω for +4, +18, +24, and +28 dBu outputs; 200 Ω for Mic | | Frequency Response | -3 dB: 2 Hz and 23 kHz
±0.5 dB: 10 Hz to 22 kHz (at 1x sample rate) | | THD+N | < 0.002 % at -10 dBFS | | Signal to Noise Ratio | -111 dB (unweighted) | | Crosstalk | <100 dB at 1 kHz | | Dimensions | 5.2 x 1.9 x 3.01" (132.08 x 48.26 x 76.45 mm) | | Weight | 0.5 lb (0.22 kg) |
