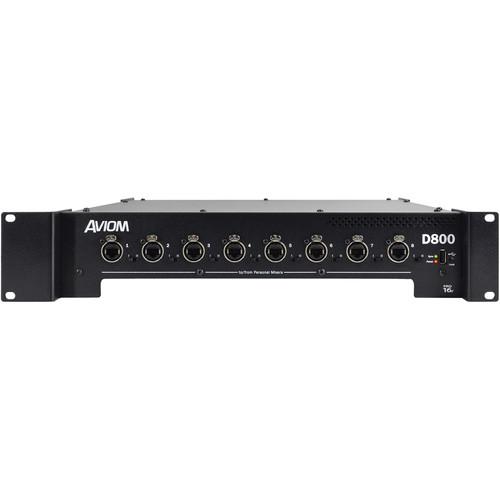

Product description The Aviom D-800 A-NET Distributor with A-Net Bridge Input is a 2RU rackmountable device designed to deliver power and audio to up to eight Aviom personal mixers such as the A-16II, A-16R, and A360. The unit features one Pro16e A-Net in that supports an A-Net Bridge input from up to four synchronous Pro16 A-Net streams. It also features Network Mix Back functionality for streamlining the connections to IEM wireless transmitters as well as Ethernet port for iOS device control (iPad, iPhone, iPod Touch) using an attached Wi-Fi router. The back panel includes one Pro16e A-Net Output for thru connections to additional units. All of the audio connections utilize heavy-duty locking connectors to ensure reliability. - 64 Digital Channels
- Using SB4 System Bridge and Pro 16 A-Net console cards, combines up to four synchronous Pro16 A-Net streams to send 64 channels of digital audio from digital console to A360 personal mixers with individually selected control on each mixer
- A360 and A-16II Support
- Supports switchable bi-directional data flow to A360 mixers and unidirectional data flow to A-16II Personal mixers
- Streamlined Network Mix Back
- Takes the stereo mix output from each connected A360 to create a 16-channel A-Net digital stream. These stereo mixes can then be connected to the musician's wireless in-ear monitor transmitters
- Ethernet for iOS Devices
- Connects to a standard Wi-Fi router to extend user interface of A360 to iOS device touchscreen
In the Box Aviom D-800 A-NET Distributor with A-Net Bridge Input Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom D-800 A-NET Distributor with A-Net Bridge Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom D800 Specs | A-Net Input/Output | 8x locking RJ45 powered connectors
2-position switch (I/II) for A-16II (I) and the bidirectional A360 personal mixer (II)
A-Net In or A-Net Bridge In: Accepts Pro16 or Pro16e A-Net; 1x locking RJ45 connector
A-Net In or A-Net Bridge In: Accepts Pro 16 or Pro 16e A-Net; 1x unpowered locking RJ45 connector | | CAT Cables Supported | Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47 CFR Part 15 Class B emissions limits. Unshielded Cat-5e cable may be used on all rear panel connections | | Ethernet | 1x RJ45 Connector | | LEDs | Power on (red)
Sync (green) | | USB | Type A port for firmware updates | | A-Net Bridge | Pro16 A-Net Support: Transmits 16 channels of digital audio to A-16II and A-16R Pro16e A-Net Support: Transmits 64 channels of digital audio to A360 | | Output Voltage | 24 VDC, 0.5 A transmitted over the Cat-5e cable | | Power Supply | Internal, universal switching type, IEC connector | | Input Voltage | 100 to 240 VAC, at 50 to 50 Hz, 300W | | Fuse | 250 VC ~ T4AL | | Dimensions (W x D x H) | 19.0 x 14.3 x 3.5 (483.0 x 362.0 x 88.9 mm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 18.1 lb | | Box Dimensions (LxWxH) | 23.3 x 18.2 x 5.8" |
