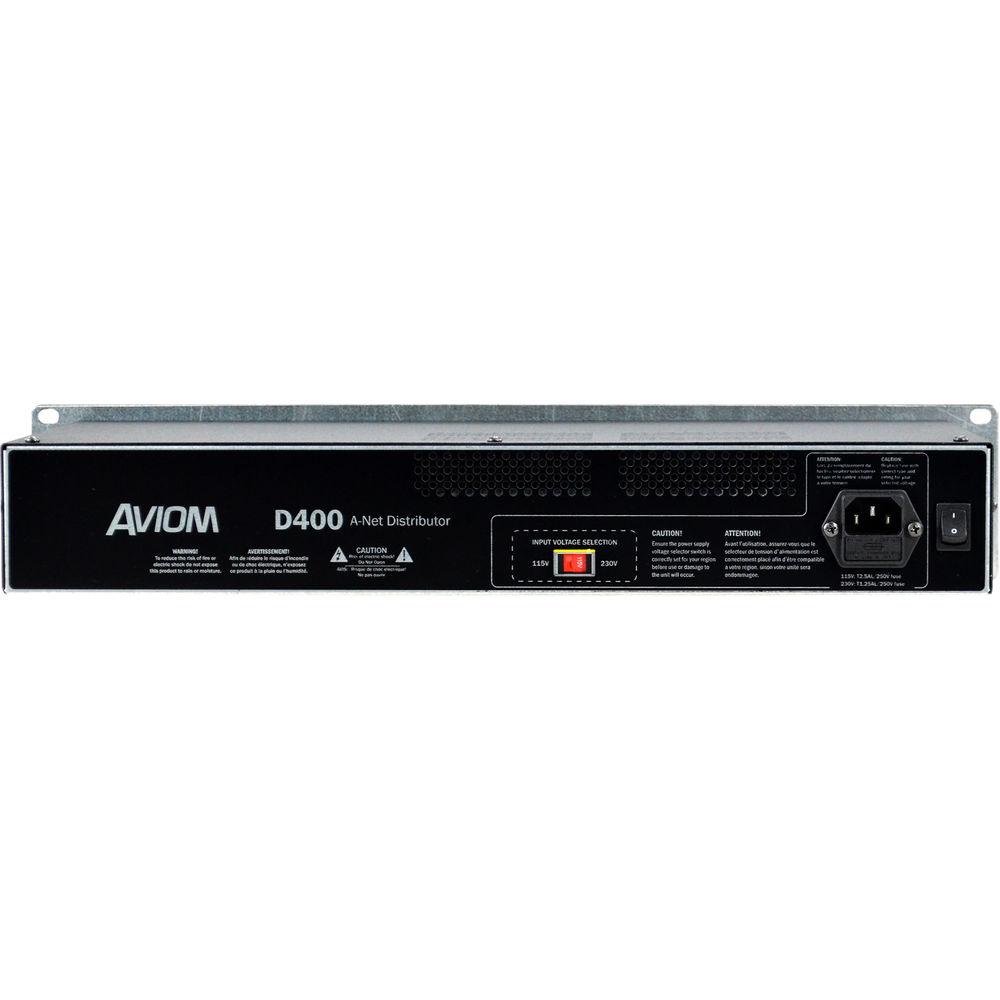

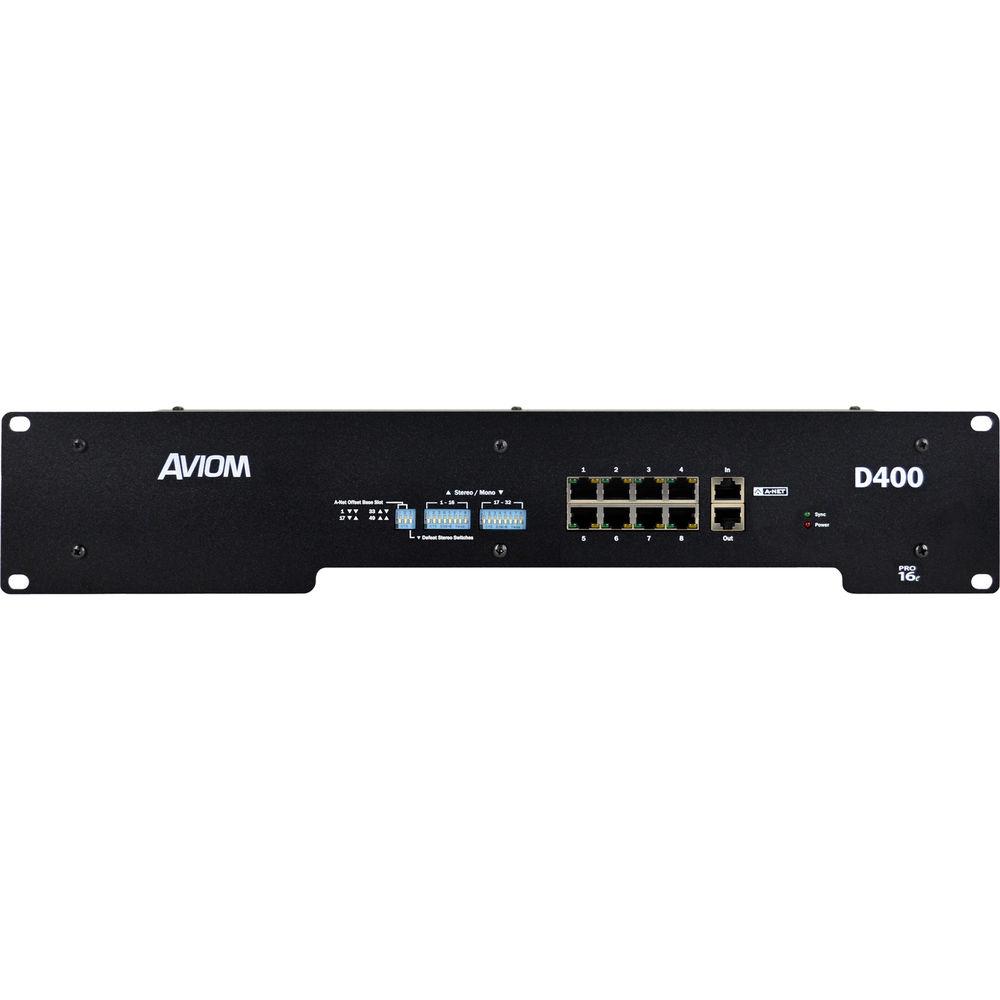

Product description The D400 A-Net Distributor from Aviom is a 2RU rackmountable device designed to deliver power and audio to up to eight Aviom personal mixers such as the A360, A320, A-16II, and A-16R. D400 includes a Pro16e A-Net input, compatible with all Pro16 Series and Pro16e-capable devices, and eight A-Net outputs, designed for use with Aviom personal mixers. These eight outputs feature isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom personal mixers. Additionally, it includes an unpowered A-Net Out, which can be used to connect additional A-Net Distributors, output modules, or other compatible devices. The D400 is powered by an internal power supply, with a detachable power cord and IEC power inlet on the rear panel. The rear panel features a voltage selection switch that allows you to set the unit for 115 or 230 VAC operation. All network connections on the D400 use RJ45 connectors. - Distributes power and audio to up to eight personal mixers like A320 and A360
- One unpowered Pro16e A-Net Out for thru connections
- A-Net Offset switches to set the range of Pro16e network slots to be sent to personal mixers
- Simple stereo channel assignments, thanks to stereo link DIP switches
- Supports legacy A-16II and A-16R Personal Mixers
In the Box Aviom D400 A-Net Distributor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom D400 A-Net Distributor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom D400 Specs | A-Net Input/Output | Input:
Pro16 or Pro16e A-Net; RJ45 connector
Out:
Pro16e A-Net; RJ45 connector, unpowered
Out to Personal Mixers: Eight RJ45 connectors, powered | | Slot | A-Net Offset Base: 2-position DIP switch selects the starting channel that personal mixers will receive from the network (1, 17, 33, or 49) | | Switch | Defeat Stereo:
Chooses between local (front panel), stereo links (up), or network stereo links (down) | | Stereo Linking | Two 8-position DIP switch blocks (1-16, 17-32) | | LEDs | Red: Power On
Green: Network sync | | Power Supply | Internal, IEC connector | | Input Voltage | 115 or 230 VAC (with selector switch), both +15/-22% @ 220 W maximum; 50 to 60 Hz | | Output Voltage | For Personal Mixers:
24 VDC, 0.5 A
Transmitted over the Cat-5e cable | | AC Fuses | 115 V Range: T2.5AL/250V
230 V Range: T1.25AL/250V | | Dimensions | 2RU; 19.0 x 7.4 x 3.5" (48.3 x 18.8 x 8.9 cm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 21.6 x 11.9 x 7.7" |
