User Manual for Aviom D400-Dante A-Net Distributor Click to enlarge the picture
Contents of the user manual for the Aviom D400-Dante A-Net Distributor
- Product category: Networked Audio Systems Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Networked Audio Systems
 |
User manual for the Aviom D400-Dante A-Net Distributor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|

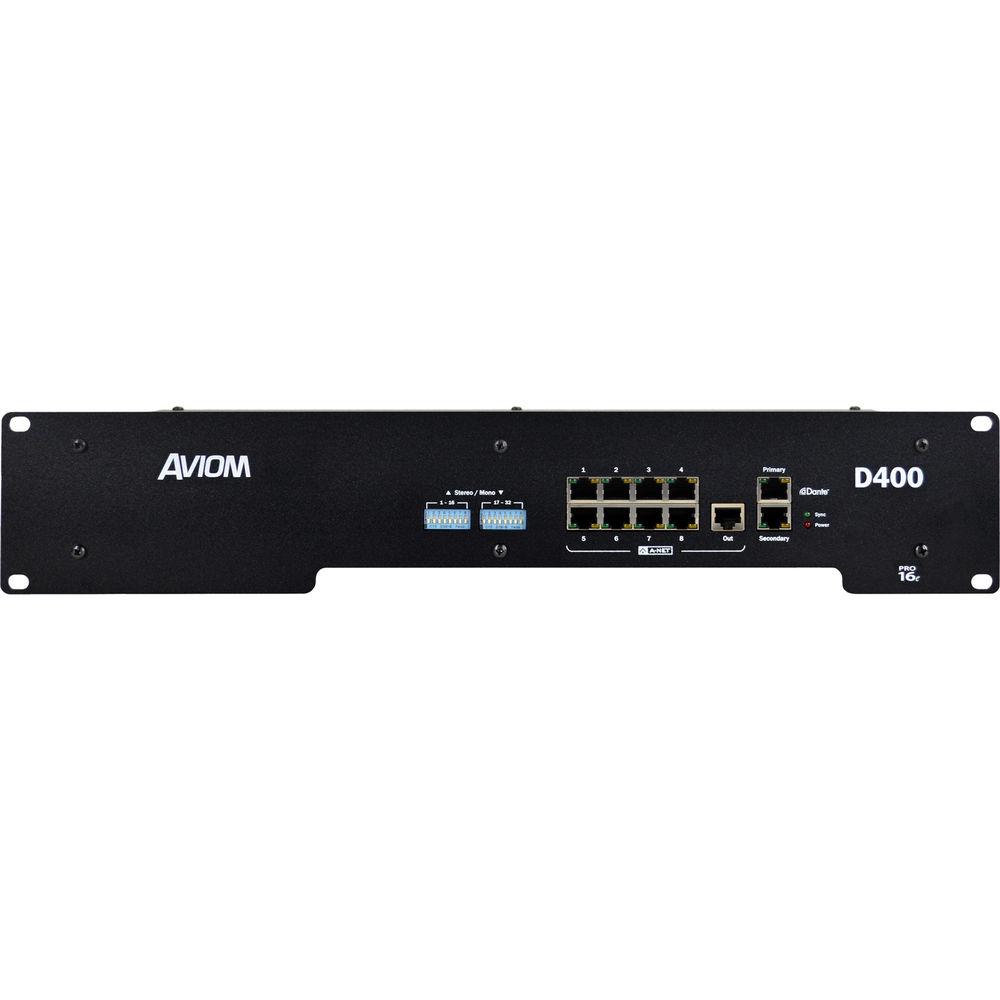

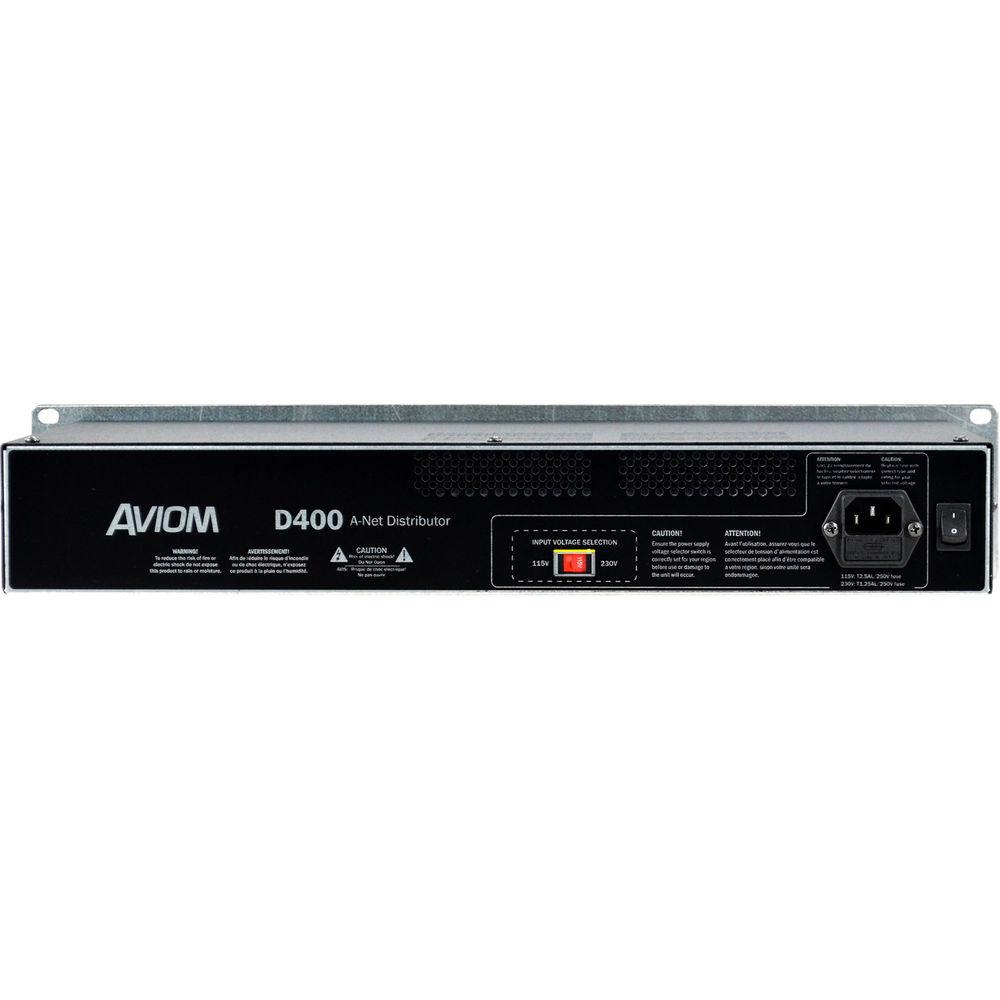

Product description The D400-Dante A-Net Distributor from Aviom is a 2RU rackmountable device designed to deliver power and audio to up to eight Aviom personal mixers such as the A360, A320, A-16II, and A-16R. D400-Dante includes eight A-Net outputs, designed for use with Aviom personal mixers. These eight outputs feature isolated (floating ground) DC power for providing remote power via Cat-5e to Aviom personal mixers. Additionally, it includes an unpowered A-Net Out, which can be used to connect additional A-Net Distributors, output modules, or other compatible devices. Unlike D400, D400-Dante A-Net Distributor adds connectivity for a Dante digital audio network, allowing up to 32 channels to be sent directly from a Dante audio network to A320 and A360 personal mixers. Any 32 Dante channels may be selected from the Dante network using the Dante Controller software. The D400-Dante is powered by an internal power supply, with a detachable power cord and IEC power inlet on the rear panel. The rear panel features a voltage selection switch that allows you to set the unit for 115 or 230 VAC operation. All network connections on the D400-Dante use RJ45 connectors. - Direct connectivity to a Dante audio network
- Support for up to 32 Dante network channels
- Distributes power and audio to up to eight personal mixers like A320 and A360
- One unpowered Pro16e A-Net Out for thru connections
- Simple stereo channel assignments, thanks to stereo link DIP switches
- Supports legacy A-16II and A-16R personal mixers
In the Box Aviom D400-Dante A-Net Distributor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom D400-Dante A-Net Distributor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom D400 Specs | A-Net Input/Output | Out:
Pro16e A-Net; RJ45 connector, unpowered
Out to Personal Mixers: Eight RJ45 connectors, powered | | Dante Interface | 32 channels (44.1/48 kHz) | | Stereo Linking | Two 8-position DIP switch blocks (1-16, 17-32) | | Connectors | 1 x RJ45 for primary I/O
1 x RJ45 for secondary I/O | | LEDs | Red: Power On
Green: Network sync
Dante LEDs:
Green: Network activity
Yellow: 1 GB active | | Power Supply | Internal, IEC connector | | Input Voltage | 115 or 230 VAC (with selector switch), both +15/-22% @ 220 W maximum; 50 to 60 Hz | | Output Voltage | For Personal Mixers:
24 VDC, 0.5 A
Transmitted over the Cat-5e cable | | AC Fuses | 115 V Range: T2.5AL/250V
230 V Range: T1.25AL/250V | | Dimensions | 2RU; 19.0 x 7.4 x 3.5" (48.3 x 18.8 x 8.9 cm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 8.4 lb | | Box Dimensions (LxWxH) | 21.7 x 12.0 x 7.7" |
