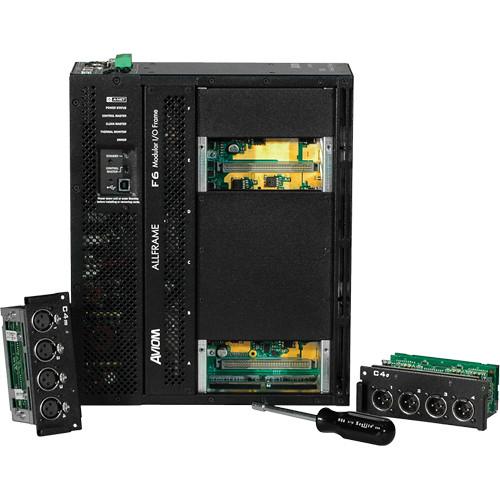

User Manual for Aviom F6 Modular I O Frame Click to enlarge the picture
Contents of the user manual for the Aviom F6 Modular I O Frame
- Product category: Audio Patchbays Aviom
- Brand: Aviom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Aviom Audio Patchbays
|
User manual for the Aviom F6 Modular I O Frame contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Aviom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Aviom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Aviom product will considerably shorten its lifespan!
|
Product description The F6 Modular I/O Frame from Aviom holds up to six AllFrame Multi-Modular I/O System audio I/O cards and can be reconfigured by the user by changing cards as needed.AllFrame is equally at home being used for a stage I/O box as part of a digital snake, or mounted to the wall as a permanent part of the wiring infrastructure in a theater's audio network installation.The F6 is compatible with all Pro64 Series products which can be combined to easily fit into a wide range of audio distribution applications, both large and small. By utilizing the F6 and AllFrame Multi-Modular I/O System and digitizing the signals at the wall or floor connection panel eliminates the need for multiple large conduit runs filled with analog wire, as well as the labor associated with dressing, terminating, and testing analog connections. - Fully modular system lets you select the I/O complement and form factor that is suited for your application
- Up to six I/O cards per frame
- Simple Cat-5e or fiber connections to the Pro64 network
- As part of the AllFrame Multi-Modular I/O System, the F6 can be integrated into a system in a number of ways. Installed in the SK6 Stage Kit, the AllFrame becomes a heavy-duty stage box suitable for live sound reinforcement applications. When housed in a standard NEMA Type 1 enclosure (a minimum size of 12 x 14 x 4" is suggested), along with other A/V and electrical services required for an installation, the F6 can be mounted on or in the wall, in standard 16"-centers studded walls, and dressed with custom plates as desired. Using the optional RK6 Rack Mount Kit, the F6 can also be mounted front- or rear-facing in a standard 19" rack (6U required).
- F6 can be outfitted with up to six I/O cards, for a maximum of 24 in and 24 out. Available cards include the C4m Mic/Line Input Card, the C4o Analog Output Card, and the C4dio AES3 Digital I/O Card.
- I/O cards can be installed, rearranged, and configured by the user, allowing the F6 to adapt easily to a changing audio environment.
- Connecting the F6 to the Pro64 network requires only an A-Net cable (Cat-5e/Cat-6 or fiber) and DC power (no power supply is included). Power may be provided via the Cat-5 cable, using an approved Power over A-Net (PoA) power supply such as the POA80, or on the Euroblock or 4-pin XLR connector. 1
Please Note: POA80 power supply is sold separately. close - Integrating the F6 into an installation is straightforward and free from compromise in audio fidelity. The Pro64 network supports any combination of parallel and serial connections without fidelity loss or directional limitations, so connection points can be placed wherever needed in a particular facility.
Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom F6 Modular I O Frame in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom F6 Specs | Channels | Up to 24 inputs
Up to 24 outputs | | Card Slots | 6; User configurable | | A-Net Input/Output | 2 x EtherCon RJ45 connectors
2 x 100 Mb/s Ethernet SFP fiber optic transceiver slots SFP transceivers sold separately | | I/O Ports | 2 copper Cat-5e and 2 fiber; 4 total | | SFP | 100 Mb/s Fast Ethernet; Class 1 laser device
SFP: use duplex LC connector
Supports Single-mode or Multi-mode fiber SFP fiber transceivers are not included and must be purchased separately. | | Cable Length | 400' (120 m) Cat-5e between devices; Cat-6 cabling is suggested for best performance at long distances. Fiber optic distance performance varies according to the type of SFP transceivers used (single/multi) and the transceiver's light-handling specifications. | | Sample Rates | 1x: 39.7 to 52 kHz; 2x: 79.4 to 104 kHz; 24-bit resolution | | Routing | Via computer using Pro64 Network Manager software;
Mic preamp remote control from RCI/MCS or Yamaha devices using m-control | | Computer Interface | 1 x USB; Type B connector | | Latency | Analog input to analog output: <800 µs | | Ambient Operating Temperature | 32 to 122°F (0 to 50°C) | | Cooling | 3 ultra-quiet low-velocity fans; Thermal monitor circuitry provides warnings for fan failure or excessive temperature. | | Voltage | 22 to 60 VDC, inclusive of tolerance | | Maximum Current | 1.08 A @ 60 V
1.16 A @ 56 V
1.35 A @ 48 V
1.41 A @ 44 V
2.70 A @ 24 V
2.95 A @ 22 V | | Power Requirements | Requires a Phihong POE80U-560G; a UL60950-1 Certified/Listed ITE power supply having a SELV (Safety Extra Low Voltage) rated output voltage. Power Over A-Net (PoA) connects to A-Net port B only. | | DC Power Requirements | Requires a UL60950-1 Certified/Listed ITE power supply having a SELV (Safety Extra Low Voltage) rated output voltage between 30 and 60 VDC. To guarantee proper startup, this supply should be rated for at least 100 W. | | DC Power Input | DC Power, Euroblock: 2-pin Euroblock, 5 mm
Pin 1: (+) 30 to 60 VDC; Pin 2 (-) Ground
DC Power, XLR: 4-pin XLR
Pin 1: Ground; Pin 2/3: no connect; Pin 4: 30 to 60 VDC
Capable of sourcing 5 A of in-rush current for 5 ms (0.1 ms rise time) | | Standby Mode | 2-pin Euroblock, 5 mm
Pin 3: (+) ; Pin 4 (-) Ground | | LED | 2-pin Euroblock, 5 mm
Pin 5: (+) ; Pin 6 (-) Ground | | Screw Type | Type: Phillips Hex Washer Head
Size: 4-40
Length: 1/4"
Use a #1 Phillips screwdriver or 3/16-inch hex nut driver. | | Dimensions | 10.50 x 12.60 x 3.85" (269.24 x 320.04 x 97.79 mm)
Minimum Backing Box Dimensions: 12 x 14 x 4" (304.8 x 355.6 x 101.6 mm) | | Rack Mount | Requires 6U space when using optional RK6 Rack Mount Kit. | | Weight | 14 lb (6.35 kg) |
