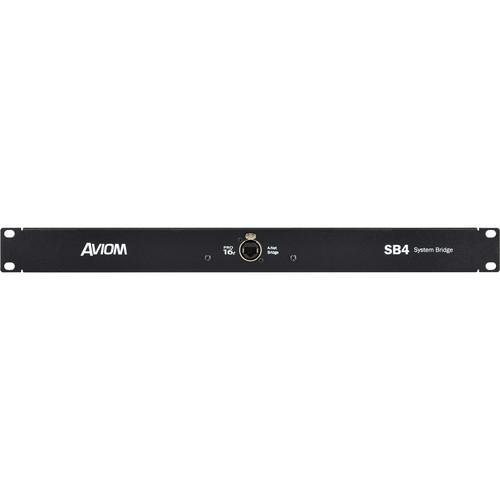

Product description The SB4 System Bridge from Aviom combines up to 64-channels from four Pro16 or Pro16e A-Net streams onto a single Cat-5 cable, simplifying cabling when using any of the Pro16 series products for personal mixing, digital snakes, or audio distribution systems. All network connections utilize heavy-duty locking Neutrik EtherCon connectors. The SB4 combines up to four 16-channel A-Net streams from digital console cards or analog input modules and transports the data over a single Cat-5 cable. The A-Net Bridge output carries up to 64 channels between the SB4 System Bridge and either another SB4 System Bridge or a D800 A-Net Distributor.Additionally, many Pro16 products may be connected to a Pro64 A-Net system with the addition of the ASI A-Net Systems Interface. By separating the 64-channel Pro64 stream into up to four 16-channel Pro16 outputs, the ASI translates the Pro64 A-Net data into Pro16 data. - SB4
-
- Four A-Net I/O ports on the rear panel (16 channels each)
- Neutrik EtherCon connectors
- One front-panel A-Net Bridge output (up to 64 channels), with EtherCon connector
- Simplifies the connection of multiple digital console cards to A360 Personal Mixers
- Multiple SB4 units can be used to create digital snake systems
- Requires no power supply
- Compatibility
-
- D800 A-Net Distributor
- D800 Dante A-Net Distributor
- A-16II Personal Mixer
- A-16R Rack-Mounted Personal Mixer
- A-16D A-Net Distributor
- A-16D Pro A-Net Distributor
- AN-16/i Input Module
- AN-16/i v.2 Input Module
- AV-M8 Input Module
- AN-16/i-M Mic Input Module
- Y1 console interface card for use with Yamaha consoles
- AN-16/o Output Module
- AV-P2 Output Module
- Third-party Pro16 console interface cards
In the Box Aviom SB4 System Bridge Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Aviom SB4 System Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAviom SB4 Specs | A-Net Input/Output | Four EtherCon RJ45 connectors; rear panel | | A-Net Bridge | One EtherCon RJ45 connector, front panel | | A-Net Cables | Use unshielded Cat-5e UTP (or better) cable | | A-Net Cable Length | Pro16 Applications: 500 feet (150 m)
Pro16e Applications: 400 feet (122 m) | | Dimensions (H x W x D) | 1.8 x 19.0 x 1.3" / 4.4 x 48.3 x 3.2 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 20.2 x 5.1 x 2.3" |
