User Manual for AViPAS AV-1071 HDMI PTZ Camera Click to enlarge the picture
Contents of the user manual for the AViPAS AV-1071 HDMI PTZ Camera
- Product category: PTZ Cameras AViPAS
- Brand: AViPAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AViPAS PTZ Cameras
 |
User manual for the AViPAS AV-1071 HDMI PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AViPAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AViPAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AViPAS product will considerably shorten its lifespan!
|

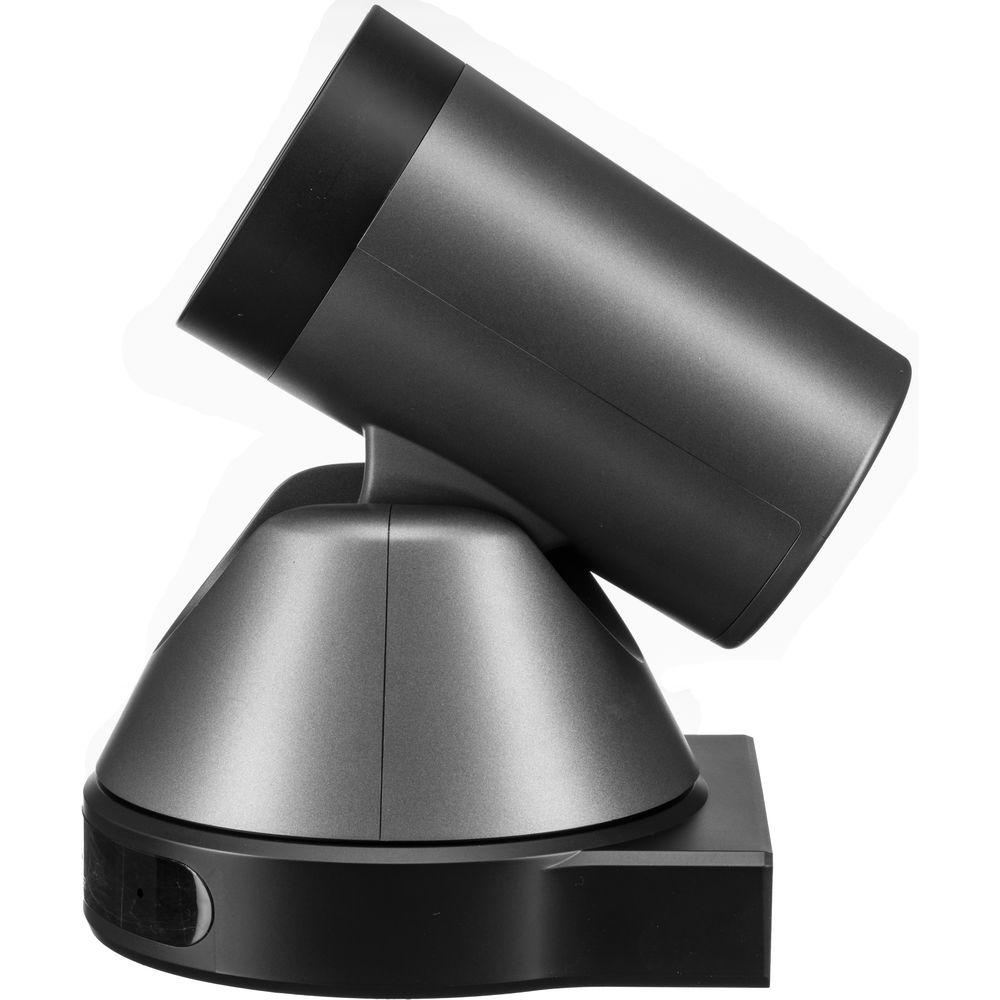

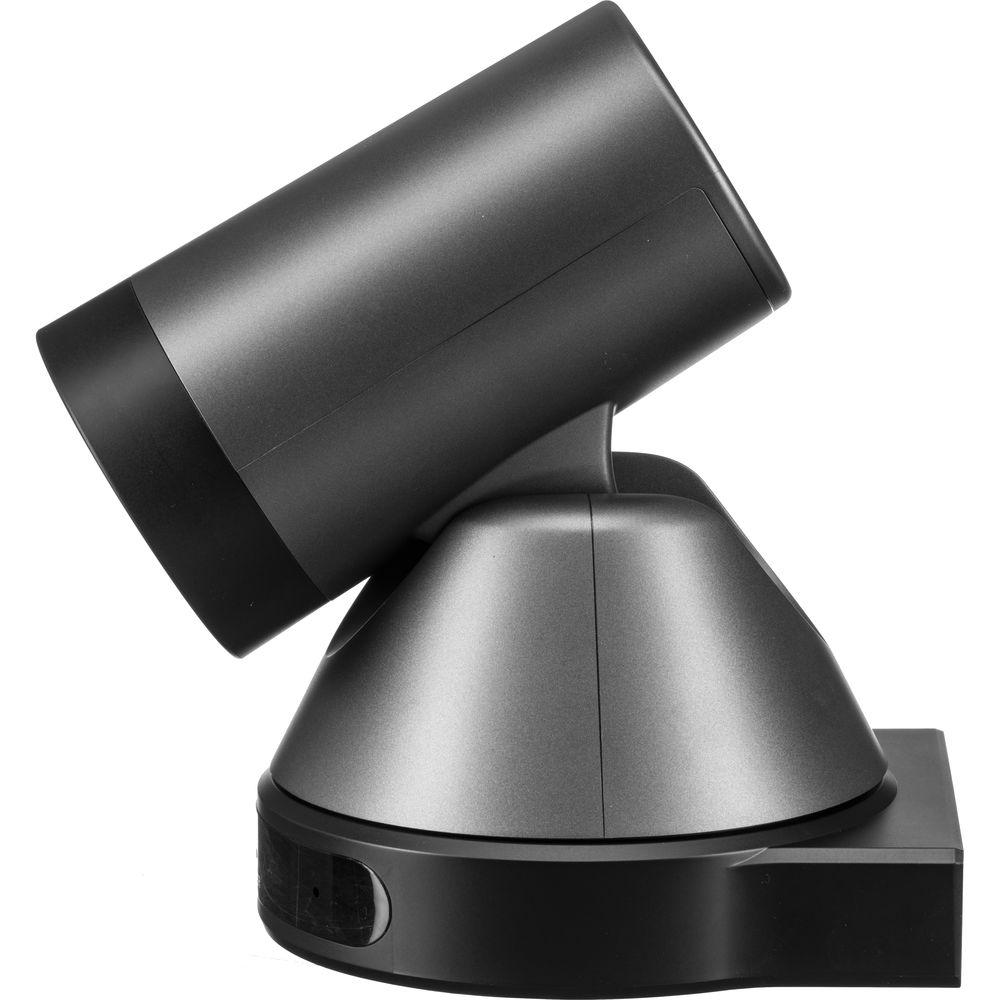

Product description The AV-1071 HDMI PTZ Camera from AViPAS utilizes a 1/2.7" progressive scan CMOS sensor to capture up to 1920 x 1080 resolution video. With a 3.5-42.3mm varifocal lens, the camera features a 12x optical zoom and 16x digital zoom. Designed for video conferencing, this PTZ camera also features a wide 72.5° angle of view, backlight compensation, auto/manual white balance and exposure modes, and a noise reduction function. It includes IP streaming and HDMI outputs, and comes with an RS-232 cable, an IR remote controller, an AC adapter, and a power cord. - Mini size, designed with worm gear drive
- Clear and clean image under low illumination conditions
- H&V flip and image freeze features
UPC: 858738005312 In the Box AViPAS AV-1071 HDMI PTZ Camera AC Power Adapter Power Cord RS-232 Cable Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AViPAS AV-1071 HDMI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAViPAS AV-1071 Specs | Sensor | 1/2.7" CMOS | | Resolution | 1080p: 25/30/50/60 Hz
1080i: 50/60 Hz
720p: 25/50/60 Hz | | Pixel Count | Effective: 2.07 MP | | Scanning Mode | Progressive | | Lens | 3.5-42.3mm | | Aperture | f/1.8 to 2.8 | | Zoom | Optical: 12x
Digital: 16x | | Minimum Illumination | 0.5 lux (@ F/1.8, AGC ON) | | Shutter Speed | 1/10,000 to 1/30 sec | | White Balance | Manual, Auto, Indoor, Outdoor, and One Push | | Backlight Compensation | Supported | | Digital Noise Reduction | 2D & 3D DNR | | Video S/N Ratio | ≥55 dB | | Field of View | Horizontal: 72.5 to 6.9°
Vertical: 44.8 to 3.9° | | Rotation Range | Pan: ±170°
Tilt: -25 to 25° | | Pan Speed | 1.7 to 100° per Second | | Tilt Speed | 0.7 to 28° per Second | | Number of Presets | 255 | | Preset Accuracy | 0.1° | | Video Compression | H.265/H.264/MJEPG | | Streams | Dual streams | | Resolution | First Stream: 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360

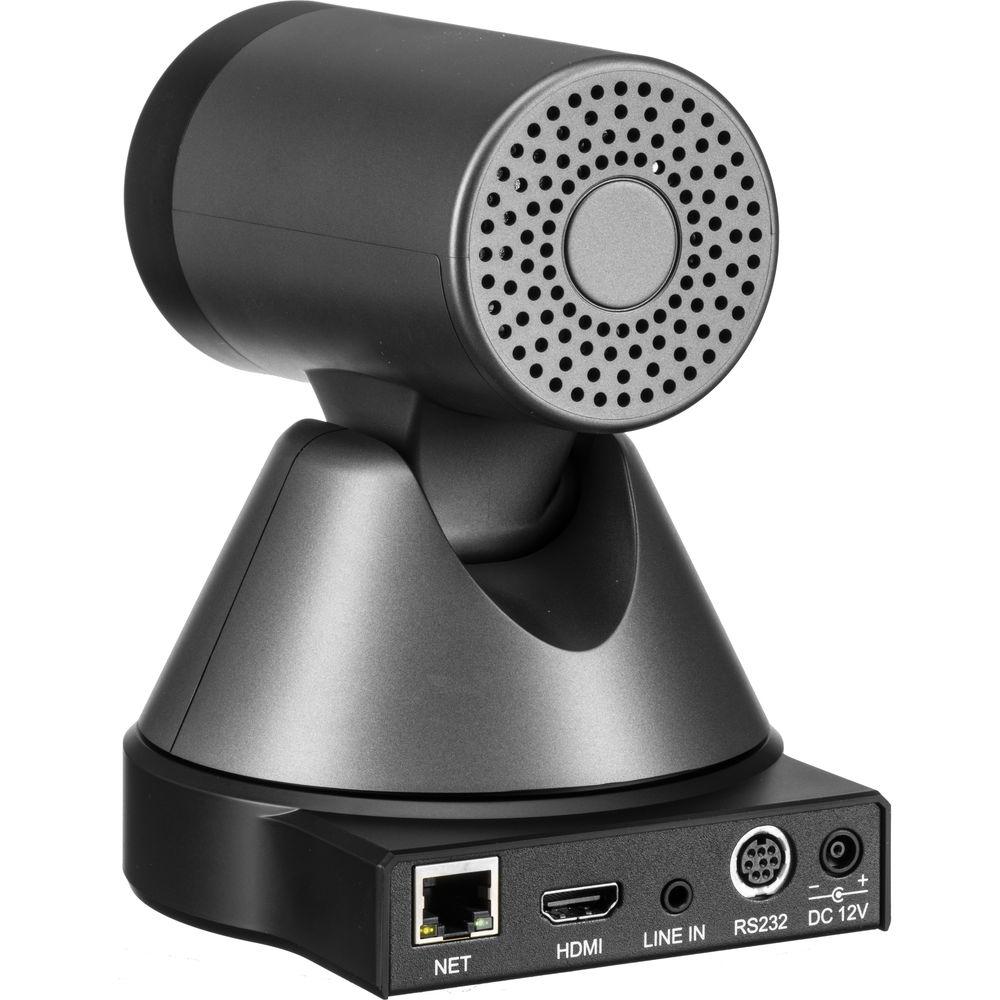

Second Stream: 320 x 240, 320 x 180, 480 x 270, 640 x 360, 720 x 576, 720 x 408, 1024 x 576, 1080 x 720 | | Bit Rate | Variable Rate, Fixed Rate | | Frame Rate | 1 to 30 fps | | Audio Encoding | AAC | | Interface | 1 x HDMI, HD Video Output
1 x RJ45, Ethernet Port
1 x 3.5mm, Audio Line Input
1 x 8-pin Mini DIN, RS-232 Control Input
1 x JEITA Jack, DC Power Input | | Communication Protocol | VISCA, Pelco-D, and Pelco-P | | Input Voltage | 12 VDC | | Power Consumption | 12 W, 1.0 A | | MTBF | >30,000 Hours | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Dimensions | 5.0 x 4.6 x 6.1" / 12.9 x 11.8 x 15.6 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.0 x 9.0 x 9.0" |
