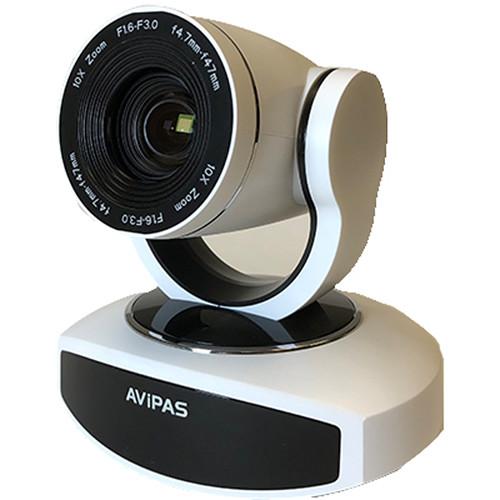

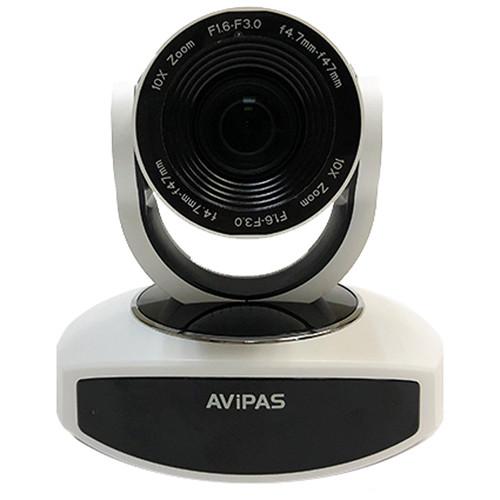

Product description The white AV-1080 SDI PTZ Camera from AViPAS utilizes a 1/2.8" progressive scan CMOS sensor to capture up to 1920 x 1080 resolution video. With a 4.7-47mm varifocal lens, the camera features a 10x optical zoom and 5x digital zoom. Designed for video conferencing, this PTZ camera also features a wide 60.9° angle of view, backlight compensation, auto/manual white balance modes, and a noise reduction function. It includes IP streaming and 3G-SDI outputs, and comes with an RS-232 cable, an IR remote controller, an AC adapter, and a power cord. - Elegant, compact design with quiet and smooth pan/tilt mechanism
UPC: 858738005329 In the Box AViPAS AV-1080 SDI PTZ Camera (White) AC Power Adapter Power Cord RS-232 Cable Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AViPAS AV-1080 SDI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAViPAS AV-1080 Specs | Sensor | 1/2.8" Progressive Scan CMOS | | Resolution | 1080p: 25/29.97/30/50/59.94/60 Hz
1080i: 50/59.94/60 Hz
720p: 25/29.97/30/50/59.94/60 Hz | | Pixel Count | Effective: 2.07 MP | | Aspect Ratio | 16:9 | | Lens | 4.7-47mm | | Aperture | f/1.6 to 3.0 | | Zoom | Optical: 10x
Digital: 5x | | Minimum Illumination | 0.5 Lux (@ f/1.8, AGC ON) | | White Balance | Manual, Auto, and One Push
3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | | Backlight Compensation | Supported | | Digital Noise Reduction | 2D & 3D DNR | | Focus | Manual, Auto, and One Push | | Electronic Shutter | Manual and Auto | | WDR | Off, Dynamic Level Adjustment | | Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, and Gamma Curve | | Video S/N Ratio | ≥55 dB | | Field of View | 83.7° | | Angle of View | Tele: 6.43°
Wide: 60.9° | | Rotation Range | Pan: ±170°
Tilt: -30 to 30° | | Pan Speed | 0.1 to 60° per Second | | Tilt Speed | 0.1 to 30° per Second | | Number of Presets | 255 (10 with Remote Controller) | | Video Compression | H.265 and H.264 | | Streams | Dual Streams | | Resolution | First Stream: 1920 x 1080, 1280 x 720, 640 x 480

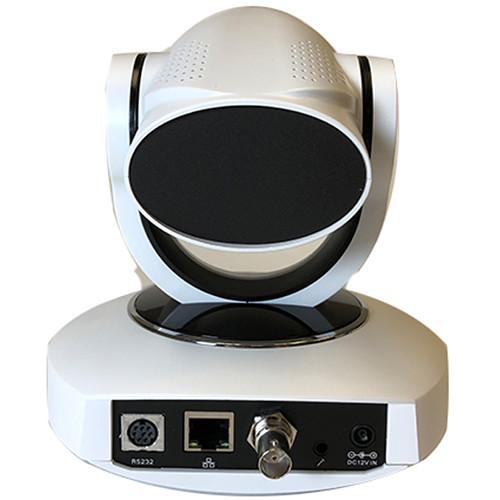

Second Stream: 1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240, 320 x 180 | | Bit Rate | Variable Rate, Fixed Rate | | Frame Rate | 5 to 60 fps | | Audio Encoding | AAC, MP3, and G.711A | | Connectors | 1 x 3G-SDI, HD Video Output
1 x RJ45, Ethernet Port
1 x 3.5mm Jack, Audio Line Input
1 x RS-232, Control Input | | Communication Protocol | VISCA, Pelco-D, and Pelco-P | | Baud Rate | 115,200/9600/4800/2400 bps | | Input Voltage | 12 VDC | | Current Consumption | 1 A | | Power Consumption | 12 W Maximum | | MTBF | >30,000 Hours | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Dimensions | 6 x 6 x 5" / 15.2 x 15.2 x 12.7 cm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 4.62 lb | | Box Dimensions (LxWxH) | 10.5 x 9.11 x 8.13" |
