AViPAS AV-1081 HDMI PTZ Camera

Search your instruction manual in PDF to download

User Manual for AViPAS AV-1081 HDMI PTZ Camera

Click to enlarge the picture
AViPAS AV-1081 HDMI PTZ Camera Contents of the user manual for the AViPAS AV-1081 HDMI PTZ Camera
  • Product category: PTZ Cameras AViPAS
  • Brand: AViPAS
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for AViPAS PTZ Cameras

AViPAS AV-1081 HDMI PTZ Camera AViPAS AV-1081 HDMI PTZ Camera
User manual for the AViPAS AV-1081 HDMI PTZ Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any AViPAS product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official AViPAS user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a AViPAS product will considerably shorten its lifespan!



Product description

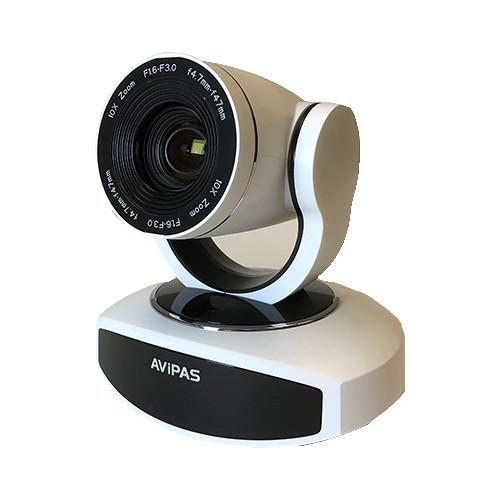

The white AV-1081 HDMI PTZ Camera from AViPAS utilizes a 1/2.8" progressive scan CMOS sensor to capture up to 1920 x 1080 resolution video. With a 4.7-47mm varifocal lens, the camera features a 10x optical zoom and 5x digital zoom. Designed for video conferencing, this PTZ camera also features a wide 60.9° angle of view, backlight compensation, auto/manual white balance modes, and a noise reduction function. It includes IP streaming and HDMI outputs, and comes with an RS-232 cable, an IR remote controller, an AC adapter, and a power cord.
  • Elegant, compact design with quiet and smooth pan/tilt mechanism
  • Low noise and high SNR
  • Low-power sleep function
UPC: 858738005336 In the Box AViPAS AV-1081 HDMI PTZ Camera (White)
  • AC Power Adapter
  • Power Cord
  • RS-232 Cable
  • Remote Control
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the AViPAS AV-1081 HDMI PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    AViPAS AV-1081 Specs

    Sensor 1/2.8" Progressive Scan CMOS
    Resolution 1080p: 25/29.97/30/50/59.94/60 Hz
    1080i: 50/59.94/60 Hz
    720p: 25/29.97/30/50/59.94/60 Hz
    Pixel Count Effective: 2.07 MP
    Aspect Ratio 16:9
    Lens 4.7-47mm
    Aperture f/1.6 to 3.0
    Zoom Optical: 10x
    Digital: 5x
    Minimum Illumination 0.5 Lux (@ F/1.8, AGC ON)
    White Balance Manual, Auto, and One Push
    3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K
    Backlight Compensation Supported
    Digital Noise Reduction 2D & 3D DNR
    Focus Manual, Auto, and One Push
    Electronic Shutter Manual and Auto
    WDR Off, Dynamic Level Adjustment
    Video Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, and Gamma Curve
    Video S/N Ratio ≥55 dB
    Field of View 83.7°
    Angle of View Tele: 6.43°
    Wide: 60.9°
    Rotation Range Pan: ±170°
    Tilt: -30 to 30°
    Pan Speed 0.1 to 60° per Second
    Tilt Speed 0.1 to 30° per Second
    Number of Presets 255 (10 with Remote Controller)
    Video Compression H.265 and H.264
    Streams Dual Streams
    Resolution First Stream: 1920 x 1080, 1280 x 720, 640 x 480
    Second Stream: 1920 x 1080, 1280 x 720, 640 x 480, 640 x 360, 320 x 240, 320 x 180
    Bit Rate Variable Rate, Fixed Rate
    Frame Rate 5 to 60 fps
    Audio Encoding AAC, MP3, and G.711A

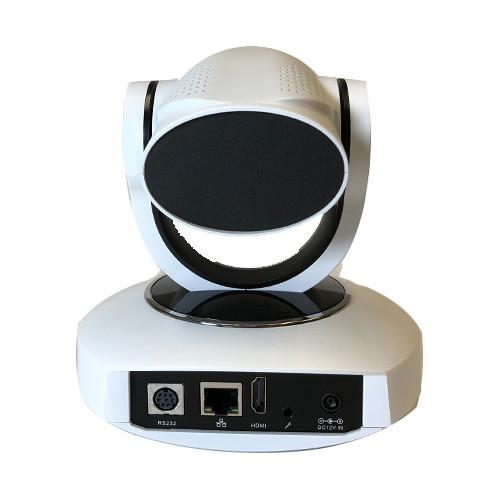

    Connectors 1 x HDMI, HD Video Output
    1 x RJ45, Ethernet Port
    1 x 3.5mm Jack, Audio Line Input
    1 x RS-232, Control Input
    1 x JEITA, DC Power Input
    Communication Protocol VISCA, Pelco-D, and Pelco-P
    Baud Rate 115,200/9600/4800/2400 bps
    Input Voltage 12 VDC
    Current Consumption 1 A
    Power Consumption 12 W Maximum
    MTBF >30,000 Hours
    Operating Temperature 14 to 122°F / -10 to 50°C
    Storage Temperature 14 to 140°F / -10 to 60°C
    Dimensions 6 x 6 x 5" / 15.1 x 15.2 x 12.7 cm
    Weight 3 lb / 1.4 kg
    Package Weight 4.525 lb
    Box Dimensions (LxWxH) 10.5 x 9.9 x 9.0"
