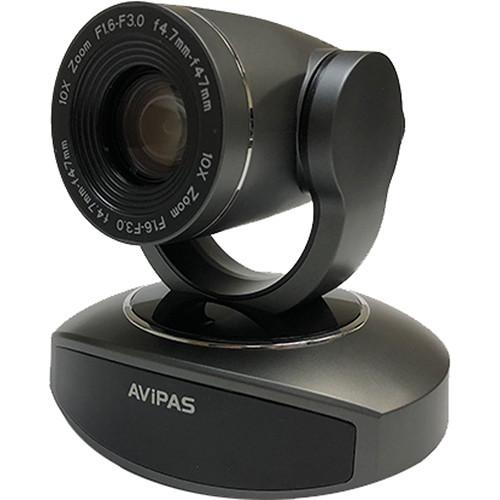

User Manual for AViPAS AV-1280 SDI PoE PTZ Camera Click to enlarge the picture
Contents of the user manual for the AViPAS AV-1280 SDI PoE PTZ Camera
- Product category: PTZ Cameras AViPAS
- Brand: AViPAS
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AViPAS PTZ Cameras
 |
User manual for the AViPAS AV-1280 SDI PoE PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AViPAS product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AViPAS user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AViPAS product will considerably shorten its lifespan!
|
Product description The AViPAS AV-1280 SDI PoE PTZ Camera, in gray, allows up to 1080p60 resolution output over an SDI output and up to 1080p30 IP streaming via an RJ45 interface. Featuring 10x optical zoom, it provides a 6.43 to 60.9° adjustable angle of view, suitable for video conferencing, education, houses of worship, and other applications. Focusing can be performed manually or set to automatic. A low-noise 1/2.8" sensor ensures a high signal-to-noise ratio while advanced 2D/3D noise-reduction technology further reduces noise so that an even sharper image is delivered. The pan/tilt/zoom mechanism uses an accurate step driving motor and functions quiet and smooth. A line-level 3.5mm audio input, RS-232 input and output ports, and PoE support complete the AV-1280 with external audio, external control, and convenient power capabilities. - Key Features
-
- Up to 1080p60 output over SDI
- Up to 1080p60 IP streaming (1-30 fps at 60 Hz)
- 10x optical zoom
- Fast, accurate, and stable autofocus technology
- Low-noise CMOS sensor ensures high signal-to-noise ratio
- 2D/3D noise reduction technology further reduces noise while ensuring image sharpness
- Quiet PTZ mechanism using an accurate step driving motor
- H.265/H.264 compression
- Audio input interface with support for 16000/32000/44100/48000 sampling rates and AAC, MP3, and G.711A audio coding
- ONVIF and RTSP protocol support, RTMP push mode, and easy linking to common streaming media servers
- PoE support
- Low-power sleep function
- VISCA, Pelco-D, and Pelco-P communication protocols
- RS-232 cascading function, useful for multi-camera installation
- 255 presets (10 via IR remote)
- WDR
- Backlight compensation
- White Balance: auto, manual, one push, 3000-7000K
UPC: 858738005411 In the Box AViPAS AV-1280 SDI PoE PTZ Camera (Gray) AC Power Adapter Power Cord RS-232 Cable Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AViPAS AV-1280 SDI PoE PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAViPAS AV-1280 Specs | | | Image Sensor | 1-Chip 1/2.8" CMOS Sensor | | Effective Sensor Resolution | 2.0 MP | | Signal-to-Noise Ratio | 55 dB | | | | Flip / Mirror Support | Image Flip | | | | Optical Zoom Ratio | 10x | | Focal Length | 4.7 to 47mm | | Field of View | Horizontal: 6.43 to 60.9
