User Manual for AVODA 2MP Wi-Fi Borescope Inspection Camera Click to enlarge the picture
Contents of the user manual for the AVODA 2MP Wi-Fi Borescope Inspection Camera
- Product category: Misc. Accessories AVODA
- Brand: AVODA
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for AVODA Misc. Accessories
 |
User manual for the AVODA 2MP Wi-Fi Borescope Inspection Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any AVODA product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official AVODA user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a AVODA product will considerably shorten its lifespan!
|

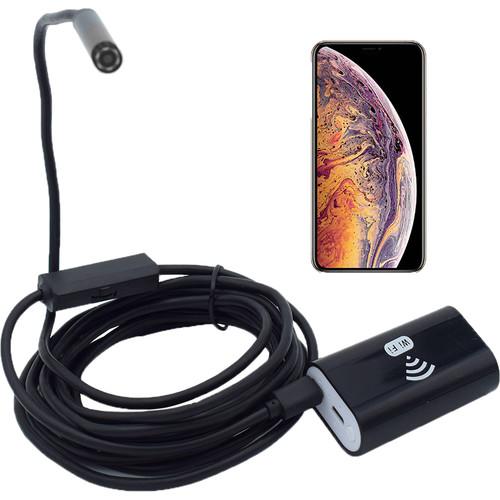

Product description Expand your vision with the 2MP Wi-Fi Borescope Inspection Camera from Avoda. This flexible borescope is 11.5' long and ends with a 720p Wi-Fi camera and six built-in LEDs. You can use it to see in, under, and behind things that can be practically impossible to reach otherwise. With the Wi-Fi box, you can stream what the camera sees to your Wi-Fi-compatible smartphone or tablet in real time. Use the in-line remote to capture an image or video of what you see to your smartphone. Six built-in LEDs illuminate dark areas and included accessories give you the added ability to retrieve lost objects. - Universal Compatibility

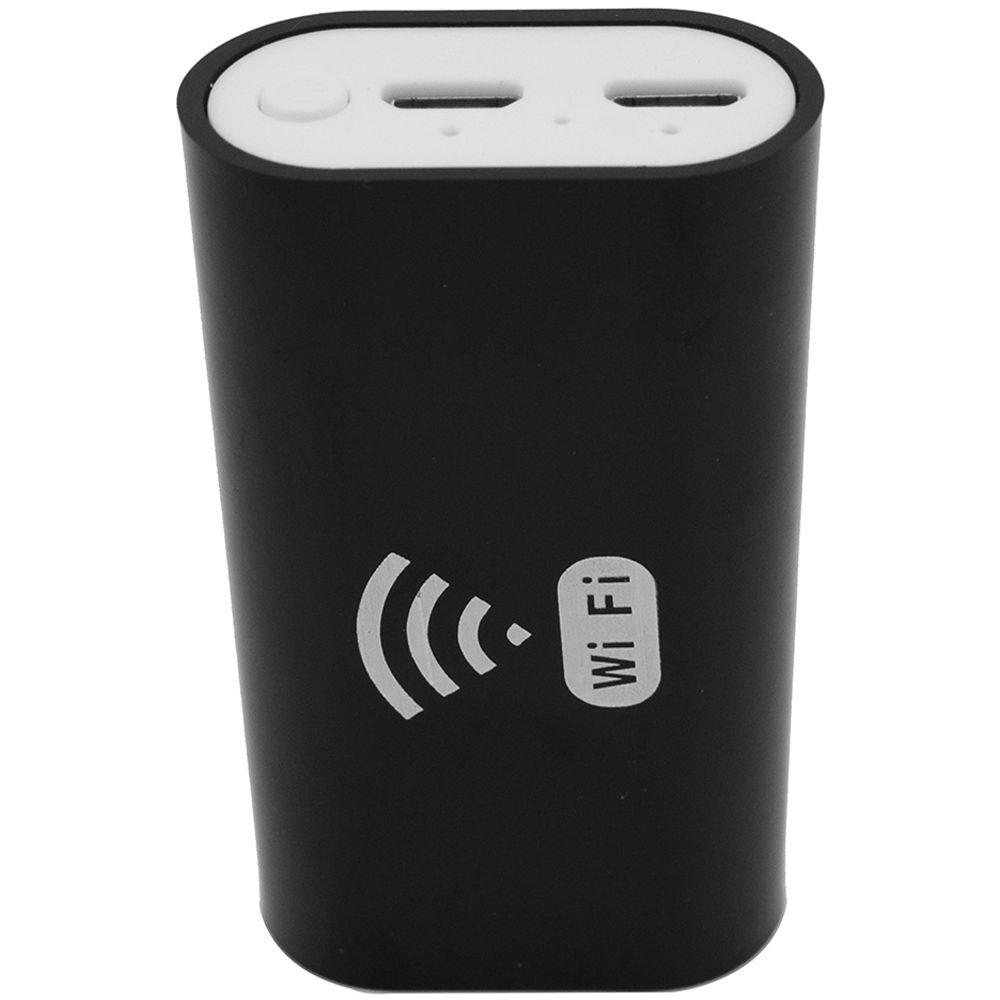

- The borescope sends what it sees back to your smartphone via the included Wi-Fi box. Since this borescope utilizes Wi-Fi technology, it's compatible with any Wi-Fi-compatible smartphone or tablet.
- Capture a Video or Image
- The borescope's 2MP camera can take a video in 720p resolution, with audio, or it can snap a picture in JPG format at 640x480 or 1280x720 resolution. All images and videos are stored on your smartphone.

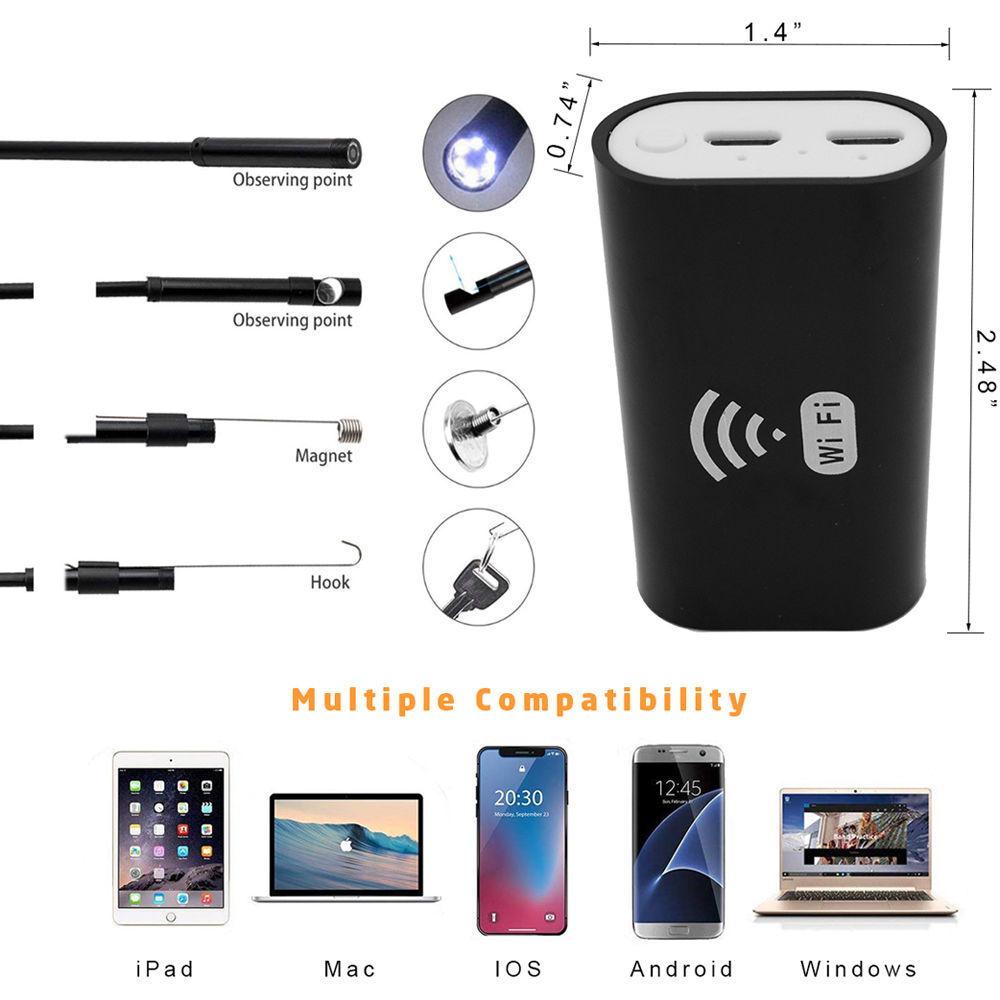

- 3 Included Tools
- This borescope comes with three tools that can be added to the end of the borescope to provide additional functionality:
- A hook to retrieve hard-to-reach items, such as car keys or jewelry
- A magnet to retrieve lost metal objects, such as small nails or screws
- An angled side mirror for a little more visibility around corners where even the borescope can't reach
- In-Line Camera & LED Remote
- The in-line remote features a button that you can use to capture a video or image that will be saved to your smartphone. There's also a wheel control that can be used to adjust the brightness of the six built-in LED lights around the camera.
- IP67 Dust and Water Resistance
- The IP67 rating means that this borescope is both dustproof and water resistant. It can withstand being submerged in water up to 4.9' deep for approximately 30 minutes. A useful feature to have when inspecting places like water and drainage pipes for leaks.

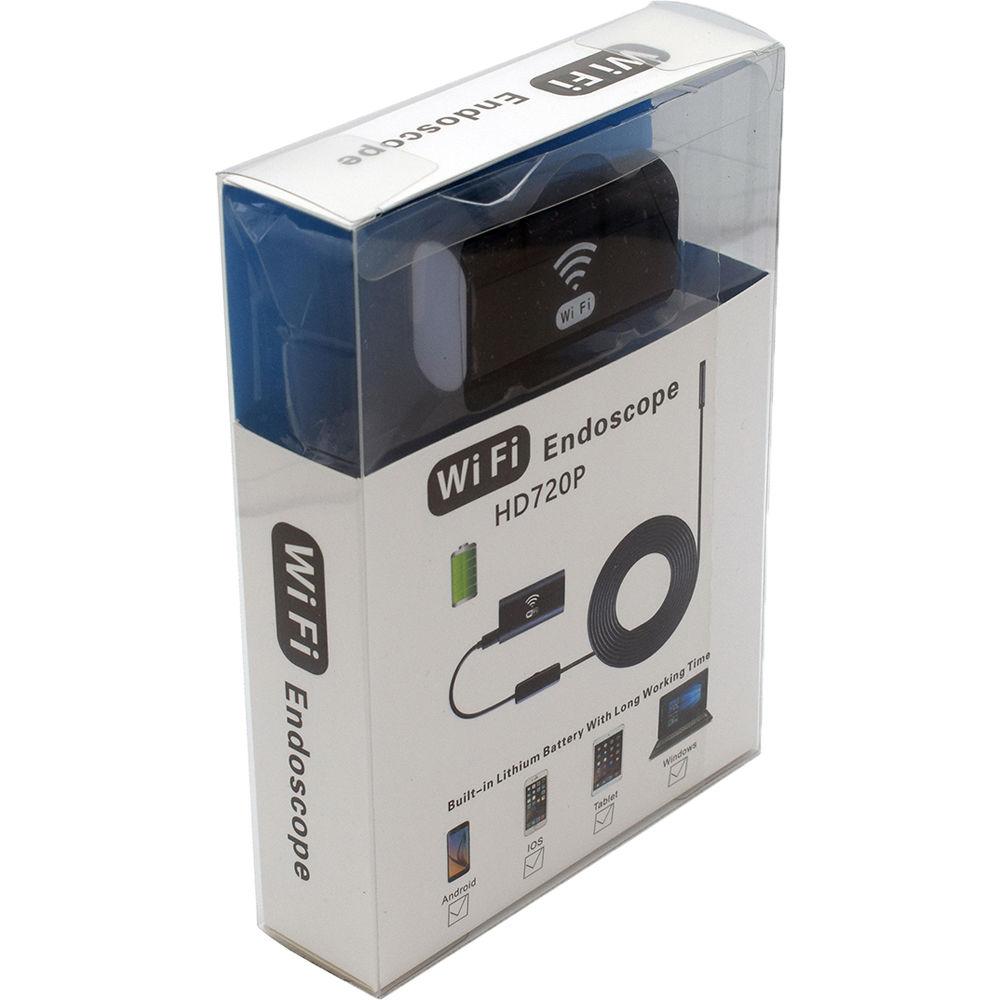

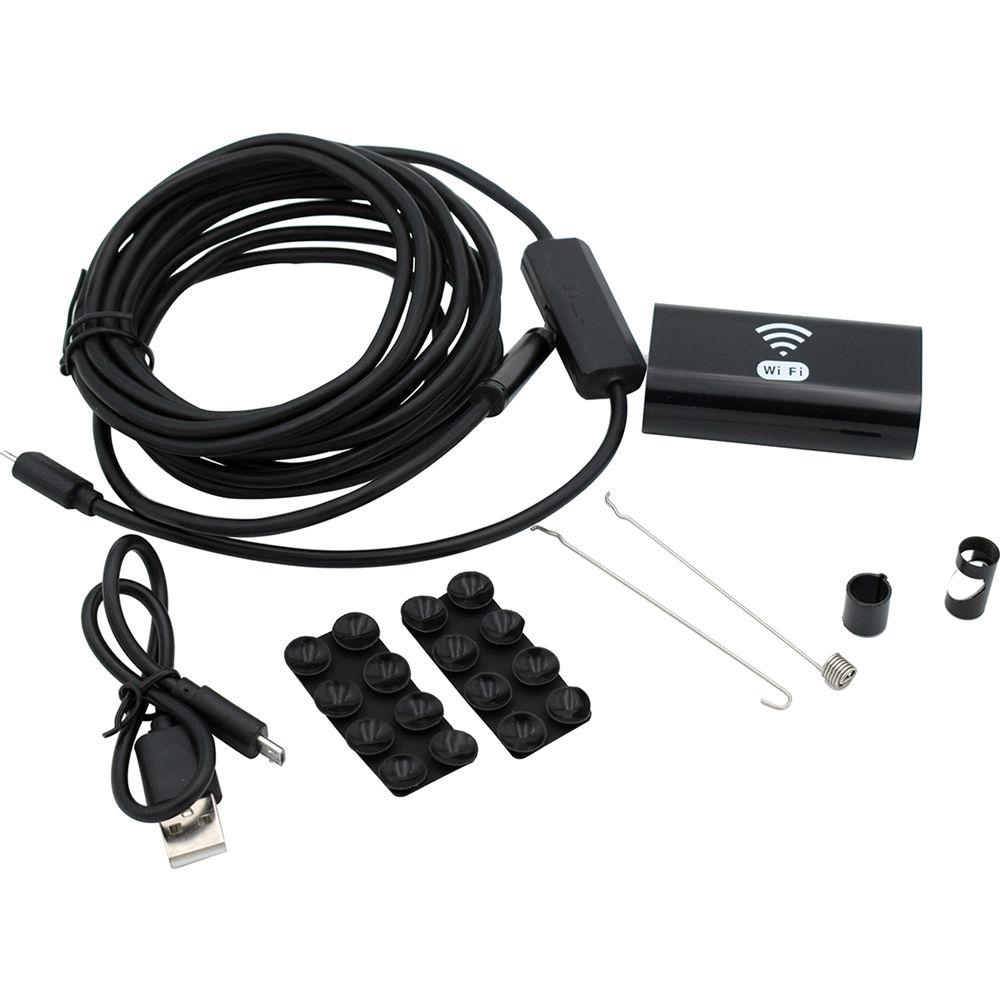

UPC: 655881617566 In the Box AVODA 2MP Wi-Fi Borescope Inspection Camera (11.5') Wi-Fi Transmitter Box Hook Attachment Magnet Attachment Side Mirror Attachment 2 x Wi-Fi Box Suction Mount Micro-USB Cable Limited 60-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the AVODA 2MP Wi-Fi Borescope Inspection Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAVODA AVD-CPENDOS Specs | MegaPixels | 2.0 | | Length | 11.5' / 3.5 m | | Video Resolution | 1280 x 720 | | Image Resolution | 1280 x 720
640 x 480 | | IP Rating | IP67 | | Lens Diameter | 8 mm | | Sensor Size | 1/5" | | Frame Rate | 30 fps | | View Angle | 70° | | Focal Distance | 4-10 cm | | Photo Format | JPEG | | Video Format | AVI | | Operating temperature | 32 to 158°F / 0 to 70°C | | Power Supply | Built-in 800 mAh battery | | Supported Systems | iOS, Android, Windows, and any other Wi-Fi-compatible device | | | | Package Weight | 0.46 lb | | Box Dimensions (LxWxH) | 7.0 x 5.0 x 2.0" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to AVODA 2MP Wi-Fi Borescope Inspection Camera
| Subject: can battery be replaced? | | Date: 28.12.2020 17:14:49 | Name: Michael Wogan | | Lithium batteries don't last forever. They have a limited number of charge cycles before they are exhausted. Can the built in battery in the boroscope be replaced when it is exhausted? I know it's rechargeable, but can it be replaced when the time comes? Thanks. | | Post reply |
