User Manual for Avtec LedPAD X63 Bi-Color Honeycomb Soft LED Light Click to enlarge the picture
Contents of the user manual for the Avtec LedPAD X63 Bi-Color Honeycomb Soft
- Product category: On Camera Lights Avtec
- Brand: Avtec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avtec On Camera Lights
|
User manual for the Avtec LedPAD X63 Bi-Color Honeycomb Soft contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avtec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avtec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avtec product will considerably shorten its lifespan!
|

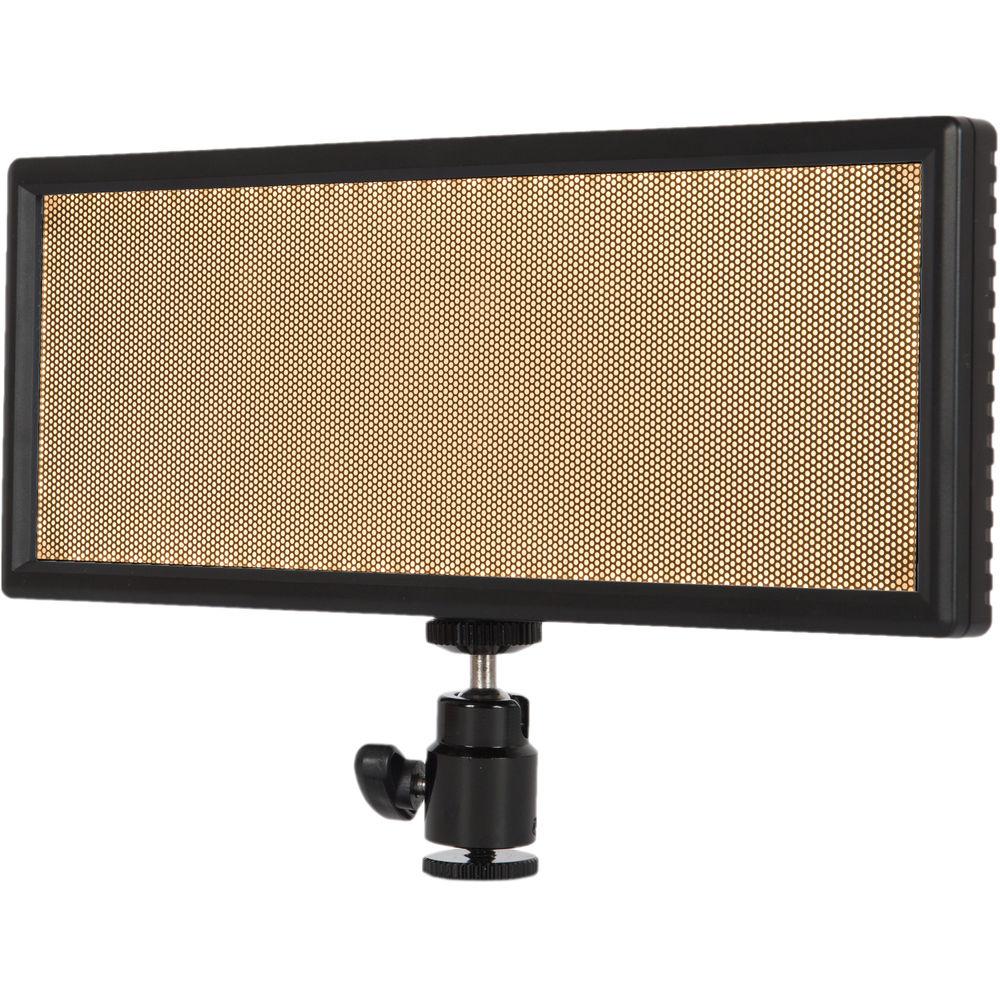

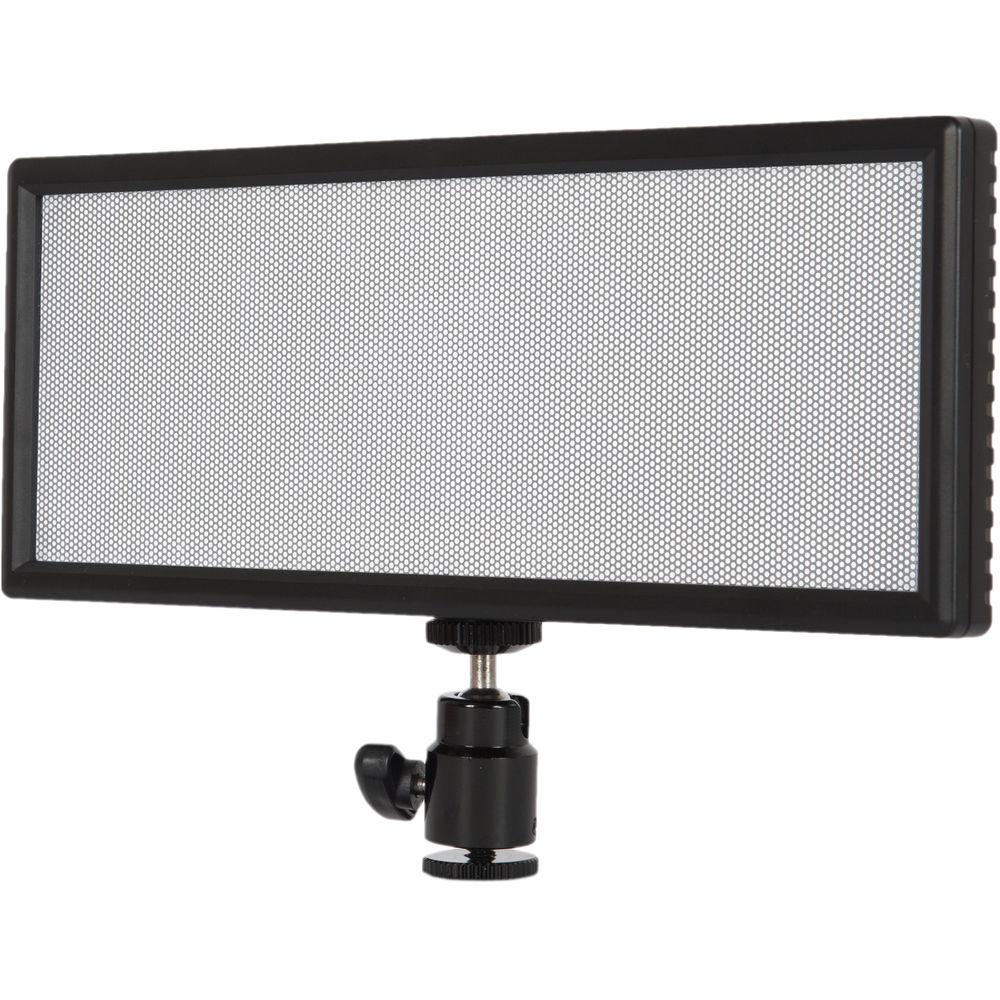

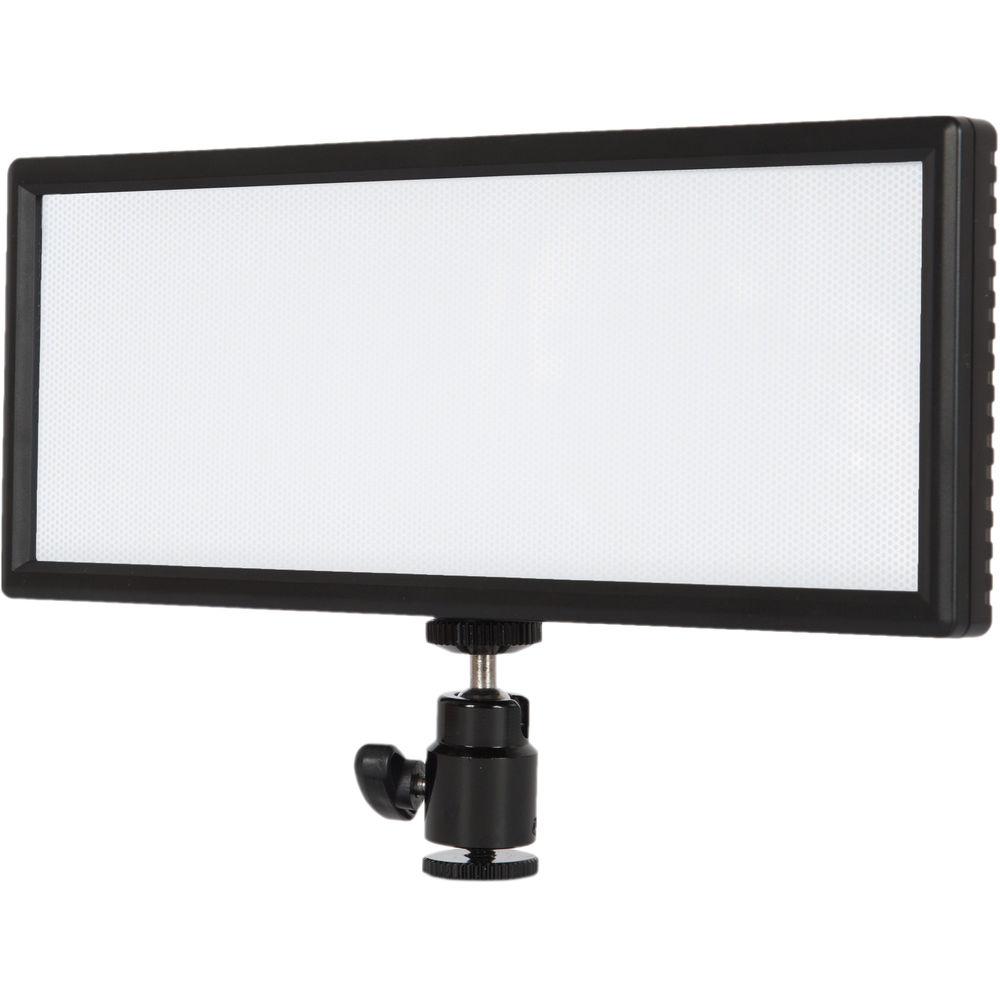

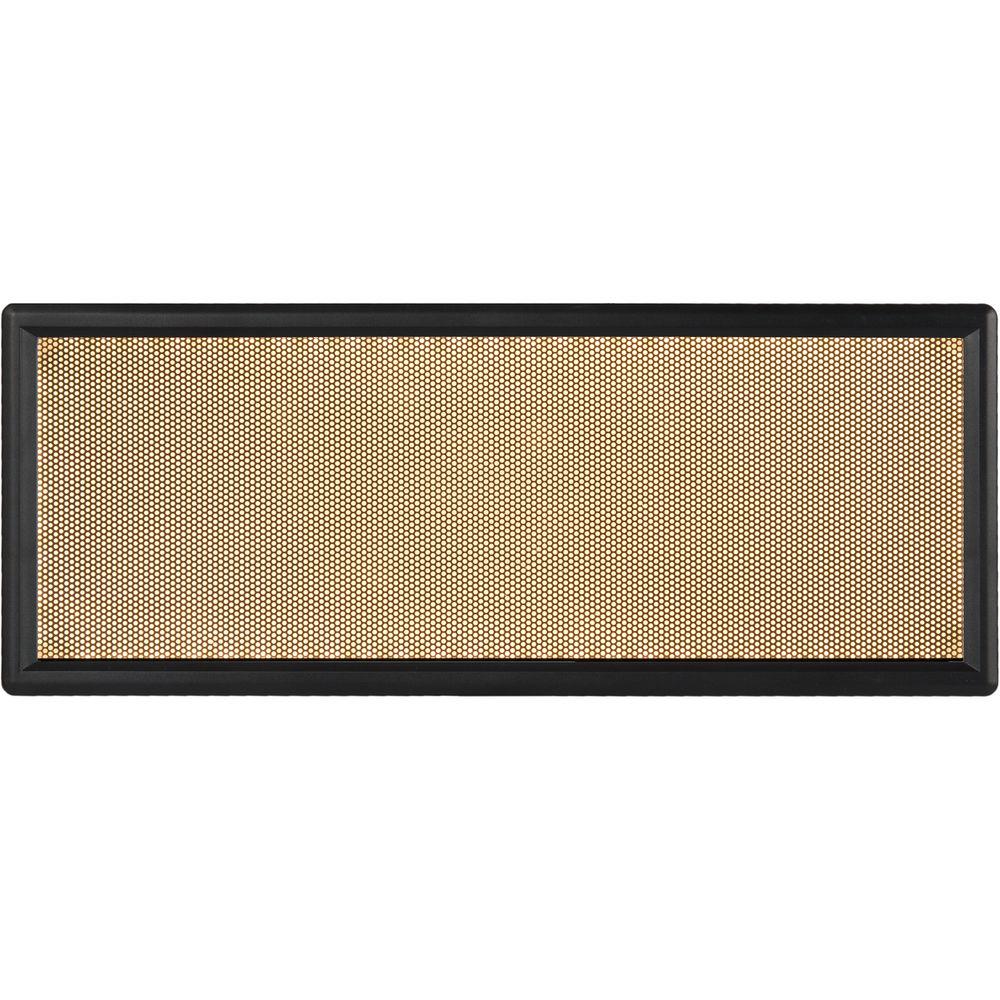

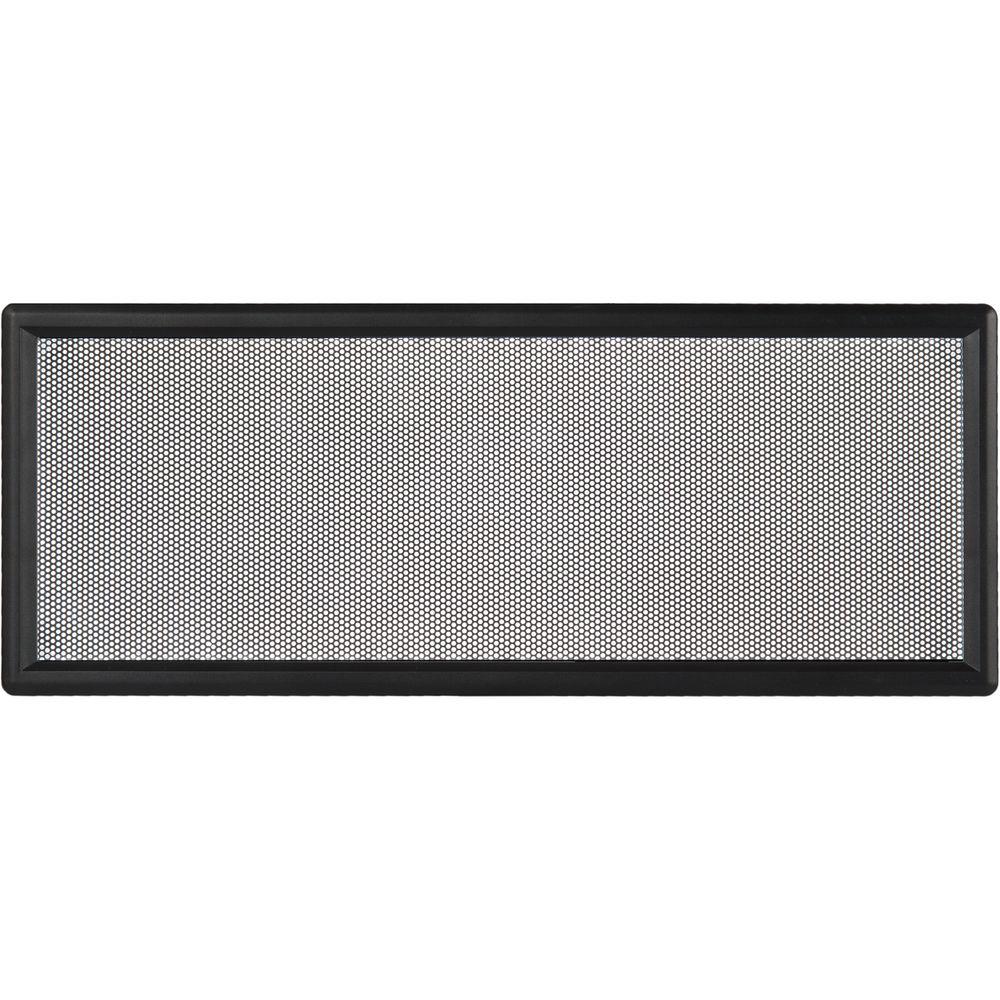

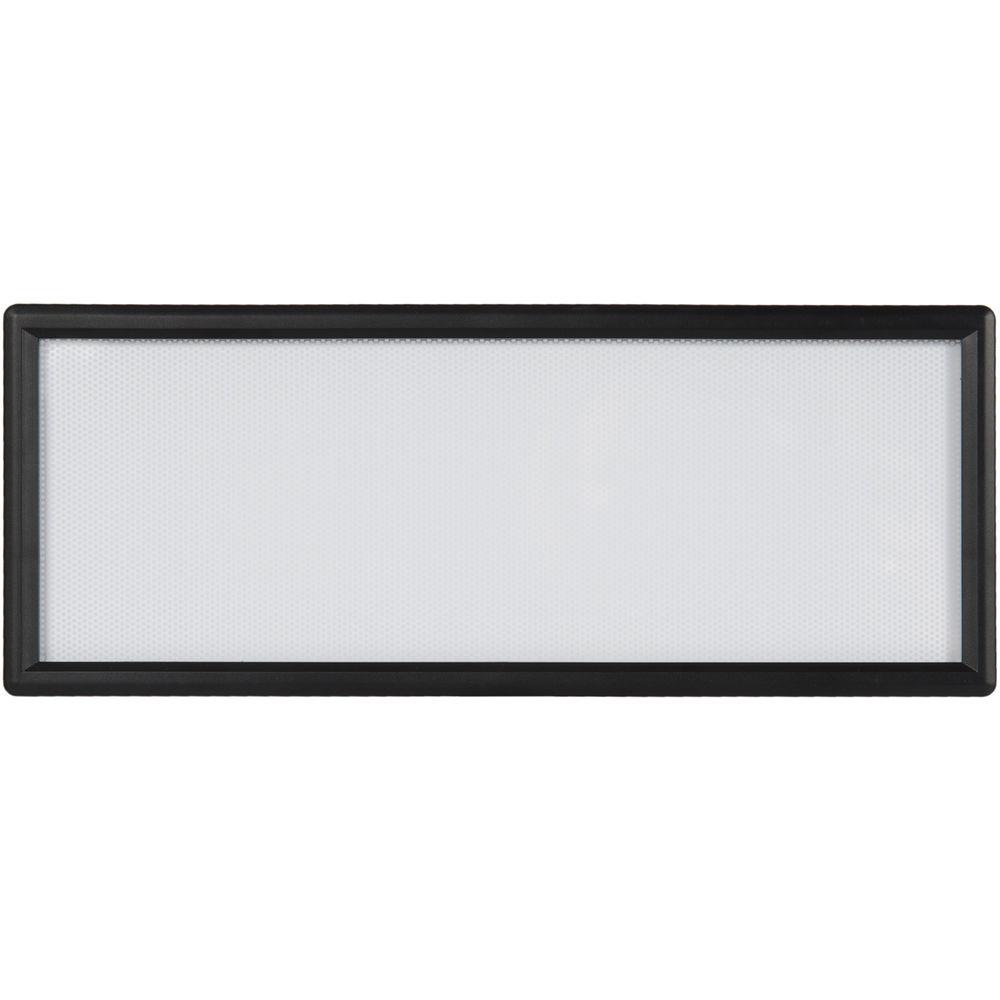

Product description The AVtec LedPAD X63 Bi-Color Honeycomb Soft LED Light is a compact battery-powered daylight/tungsten balanced on camera light. The fixture is approximately 10 x 4", and it features a continuously variable color temperature between 3200 tungsten and 5600K daylight. A built-in variable dimmer can dim the lights output from 100 to 20%. Built into the light is an LCD display panel that shows a digital readout of the brightness level, color temperature of the light and features a battery gauge so you know how much power you have left. The fixture features a slot for a single Sony L-Series type battery, but does not include a battery or power supply. A 1/4"-20 threaded hole allows you to mount the light to your camera's accessory shoe via the included ball adapter. - Variable Color Temperature & Dimming
- A single knob allows you to vary the color temperature of the unit from 3200 to 5600K and control the dimming of the unit, with brightness range of 100 to 20%. Pressing the knob switches the control from dimming to color temperature and back.
- Digital Display Screen

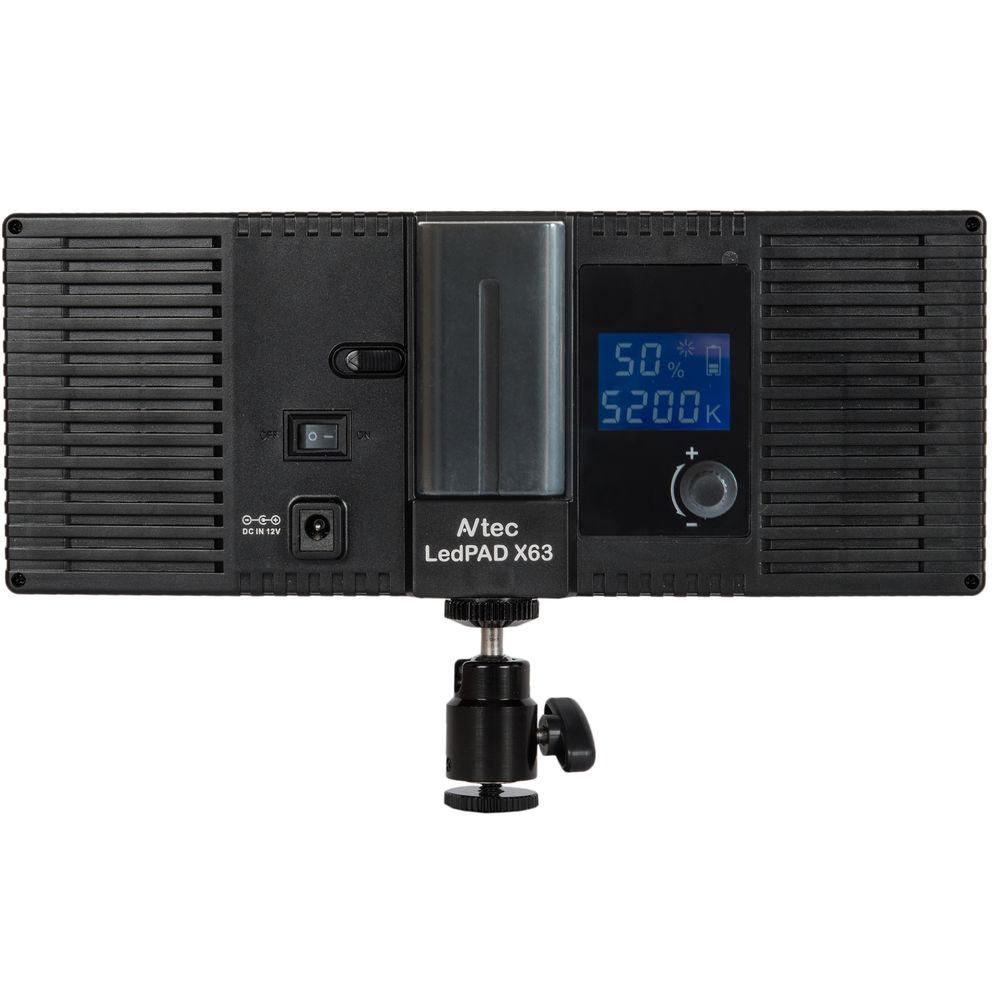

- The digital readout on the built-in display screen allows you to match the output of other units or repeat setups, if you have to go back and get pick up shots. The display also incorporates a four-step battery gauge so you know how much battery power you have left.
- Power

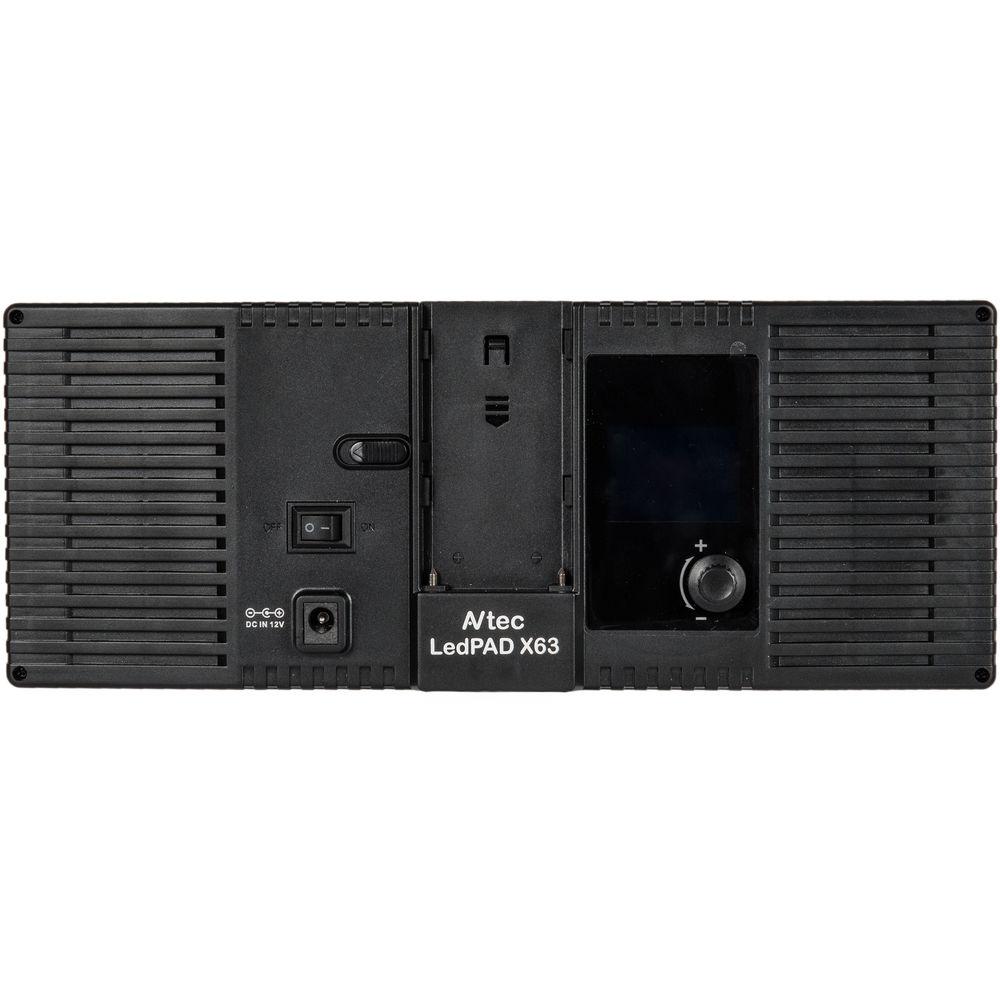

- The light unit features a single battery slot for a Sony L-Series type battery of any capacity. An optional AC adapter can power the light instead, via the small power connector on the back of the unit.
- Mounting

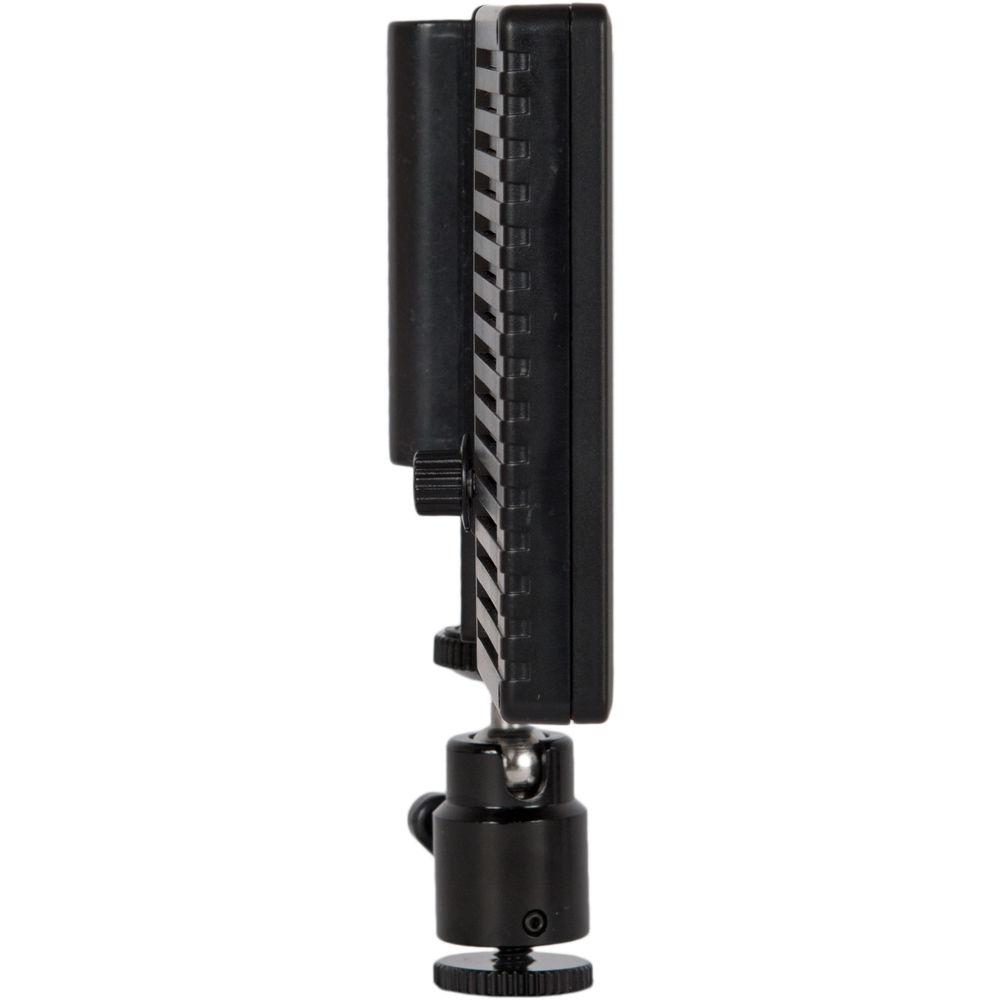

- The light incorporates a 1/4"-20 threaded mounting hole in the bottom of the unit, or you can mount the light using the included ball head to shoe mount adapter.
In the Box Avtec LedPAD X63 Bi-Color Honeycomb Soft LED Light Ball Head Camera Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avtec LedPAD X63 Bi-Color Honeycomb Soft LED Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvtec LedPAD X63 Specs | Color Temperature | 3200 to 5600K | Color Accuracy Standard | CRI 95 | | Battery Plate | 1 x Sony L-Series (NP-F) | DC Input Power | 9 to 16 VDC | Max Power Consumption | 16.2 W | Power Input Connector | Barrel | | Mount Type | 1/4"-20 Female Thread, Cold Shoe | Dimensions | 10 x 3.9 x 1.2" / 25.5 x 10 x 3 cm | Weight | 10.2 oz / 290 g | | Package Weight | 1.12 lb | Box Dimensions (LxWxH) | 13.5 x 5.05 x 1.55" |
