User Manual for Avtec XFD070 7" On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the Avtec XFD070 7" On-Camera Monitor
- Product category: On Camera Monitors Avtec
- Brand: Avtec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Avtec On Camera Monitors
 |
User manual for the Avtec XFD070 7" On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Avtec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Avtec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Avtec product will considerably shorten its lifespan!
|

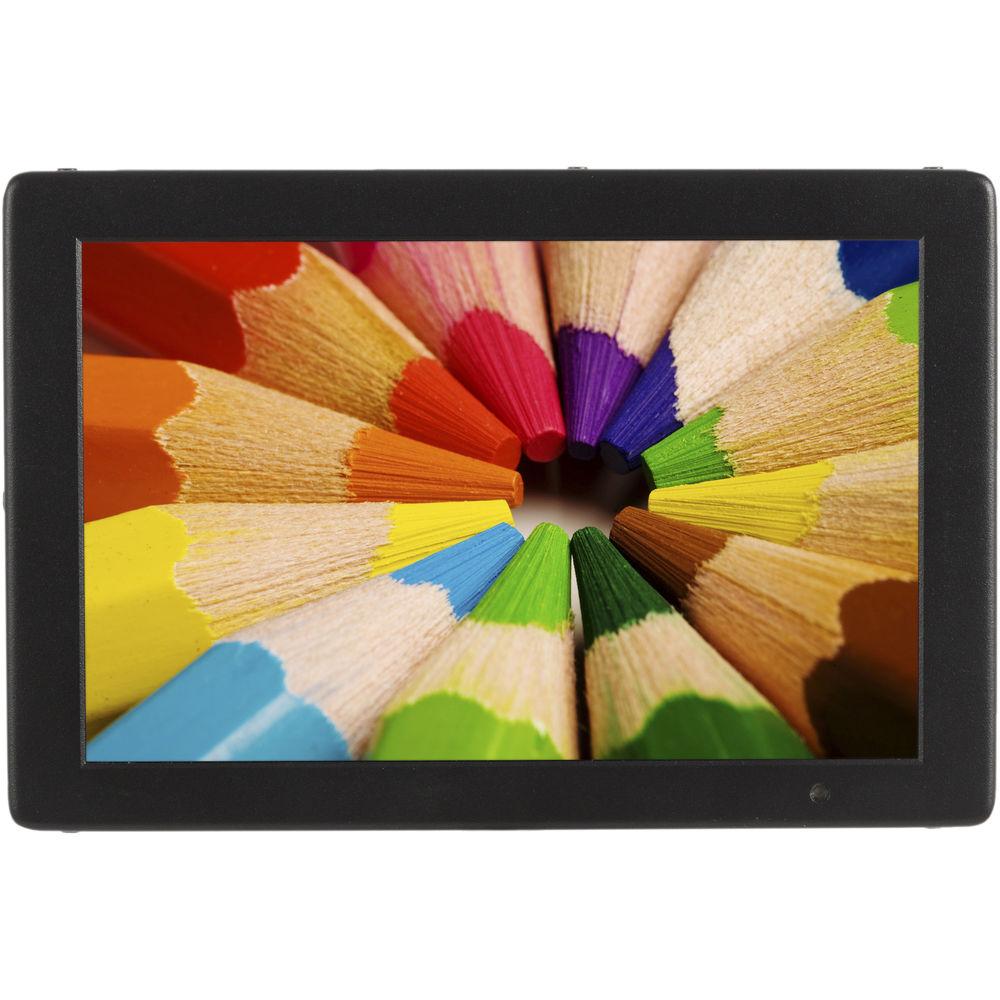

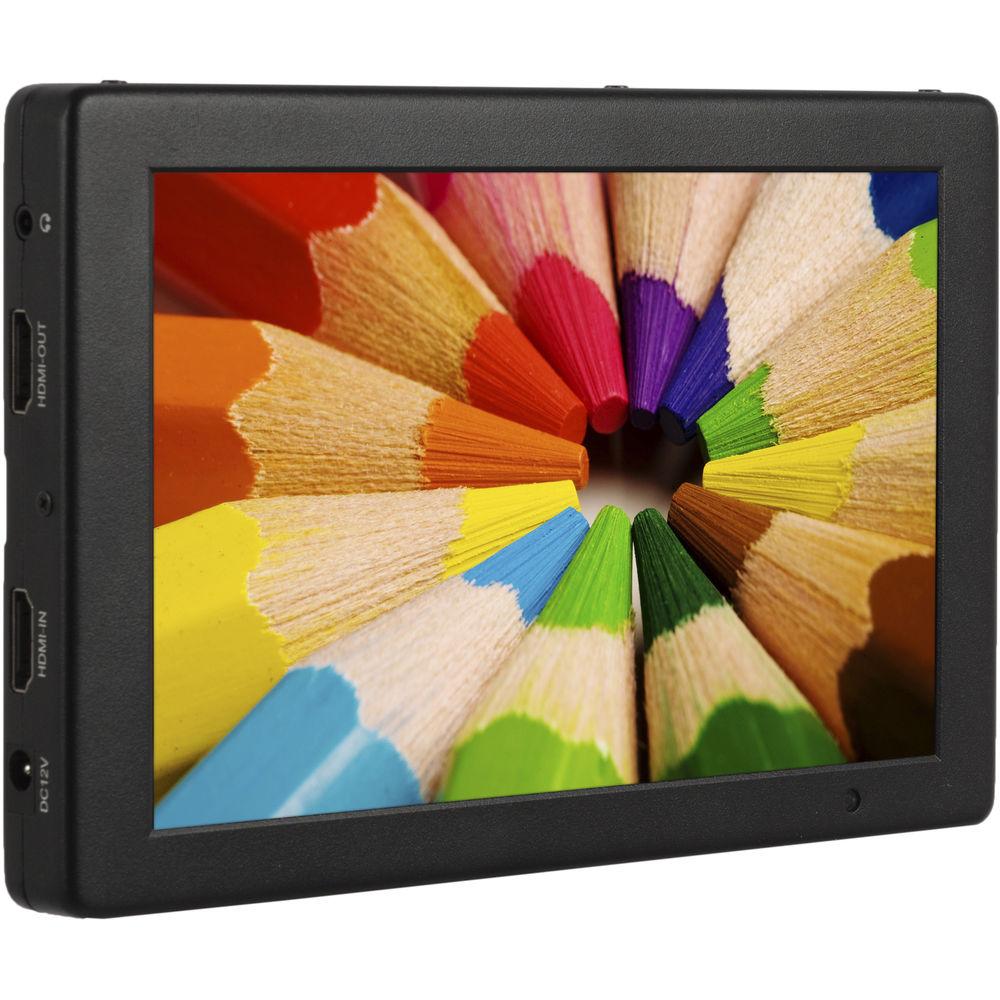

Product description The Avtec XFD070 7" On-Camera Monitor can help you compose your video recordings with its 1920 x 1080 IPS LCD display. Resolutions up to UHD 4K are accepted via the HDMI input and passed through via the HDMI output to an external recorder, switcher, or other video device. Monitoring tools including zebras, false color, focus peaking, and pixel-to-pixel mapping ensure that your image is exposed correctly and in focus. While the screen is bright at 450 cd/m², a removable folding sun hood is included for blocking excess glare.For power, the XFD070 has plates for NP-F (Sony L-series), BP-U, and LP-E6 batteries. Install the one you wish to use for powering. Three 1/4"-20 threads are available for securing the monitor to your rig. A shoe mount ball head, international power supply, and Mini-HDMI to HDMI cable are included as well. - 1920 x 1080 screen resolution
- UHD 4K resolution support
- Speaker and headphone jack for audio monitoring
- USB port for firmware upgrades

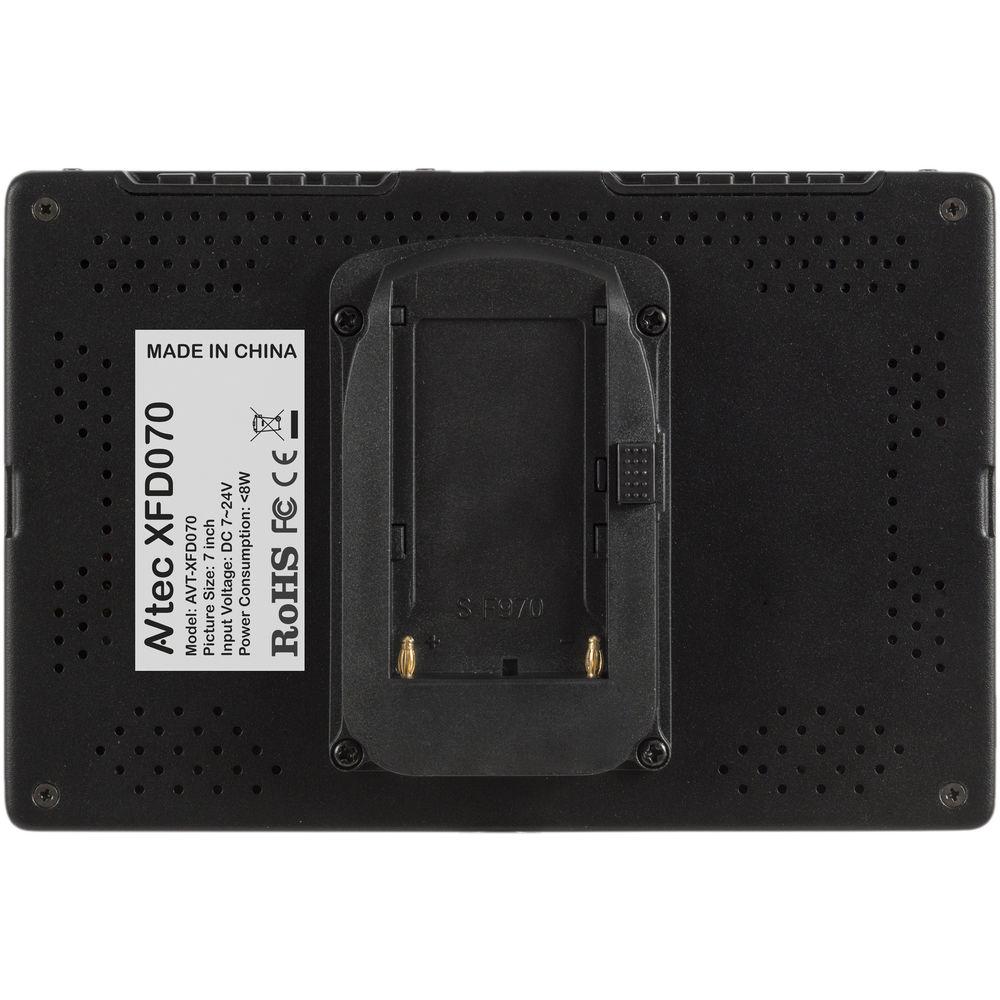

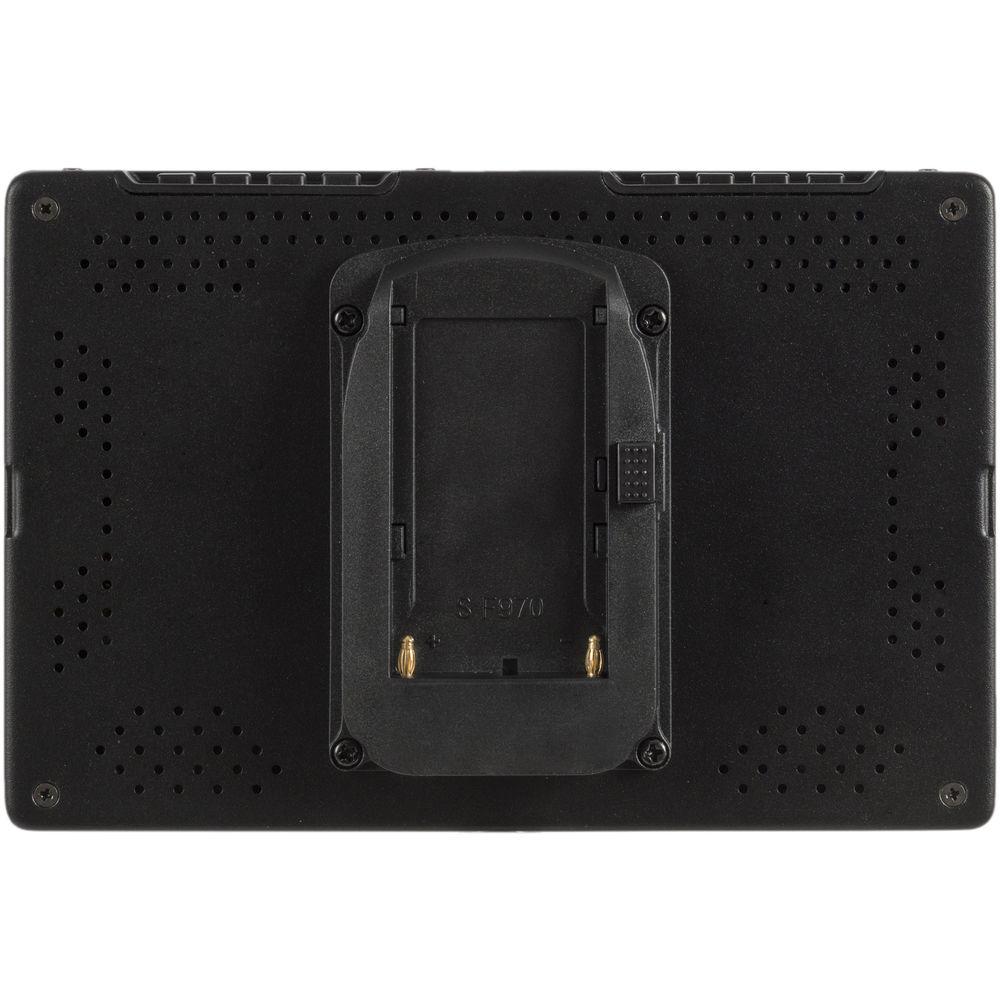

- Includes NP-F (Sony L-Series), BP-U, and LP-E6 battery plates
- International power supply with US, UK, EU, and AU plugs

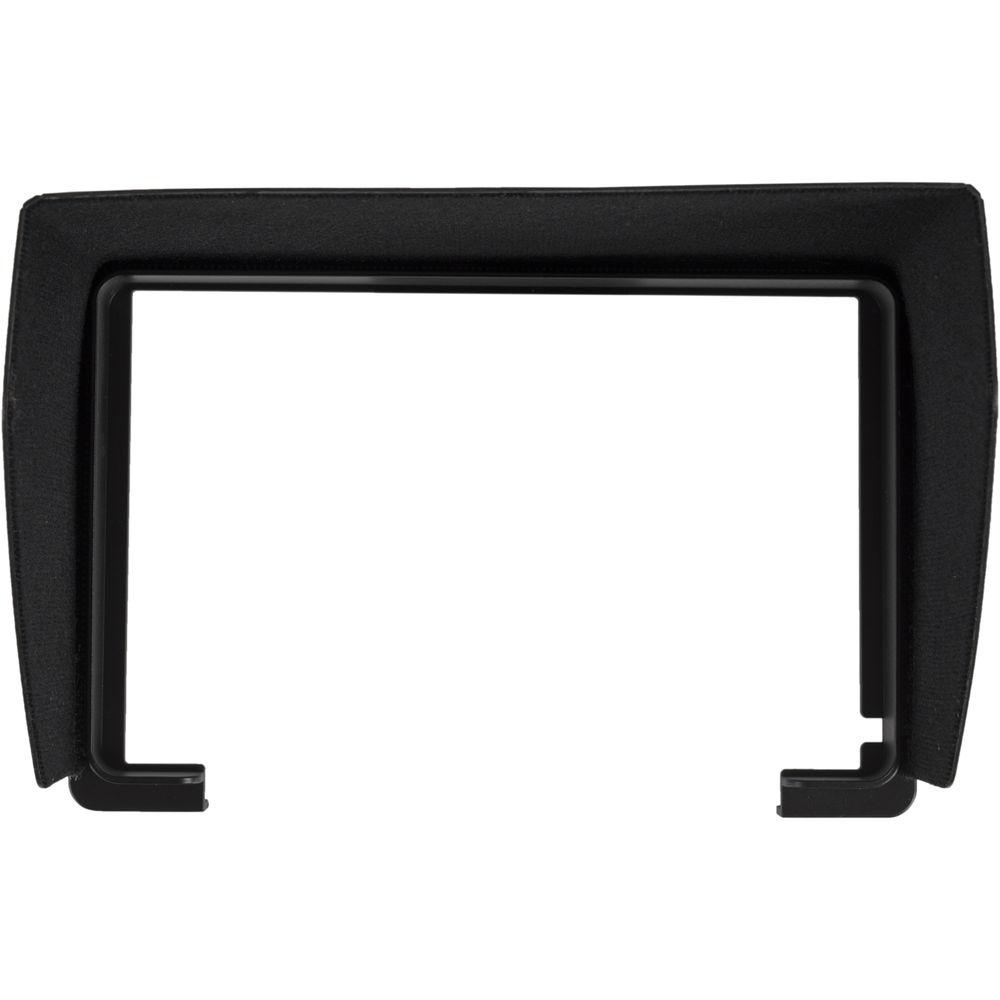

- Detachable and foldable sun hood
- Two assignable function buttons
- Focus assist, center marker, title safe, and check field
- Image freeze, center marker, and pixel-to-pixel scaling
- Histogram, exposure zebras, and false color
- On-screen embedded audio monitoring
- Image zoom, nine-grid zoom, and anamorphic de-squeeze
- Brightness, contrast, tint, saturation, and color temperature adjustments

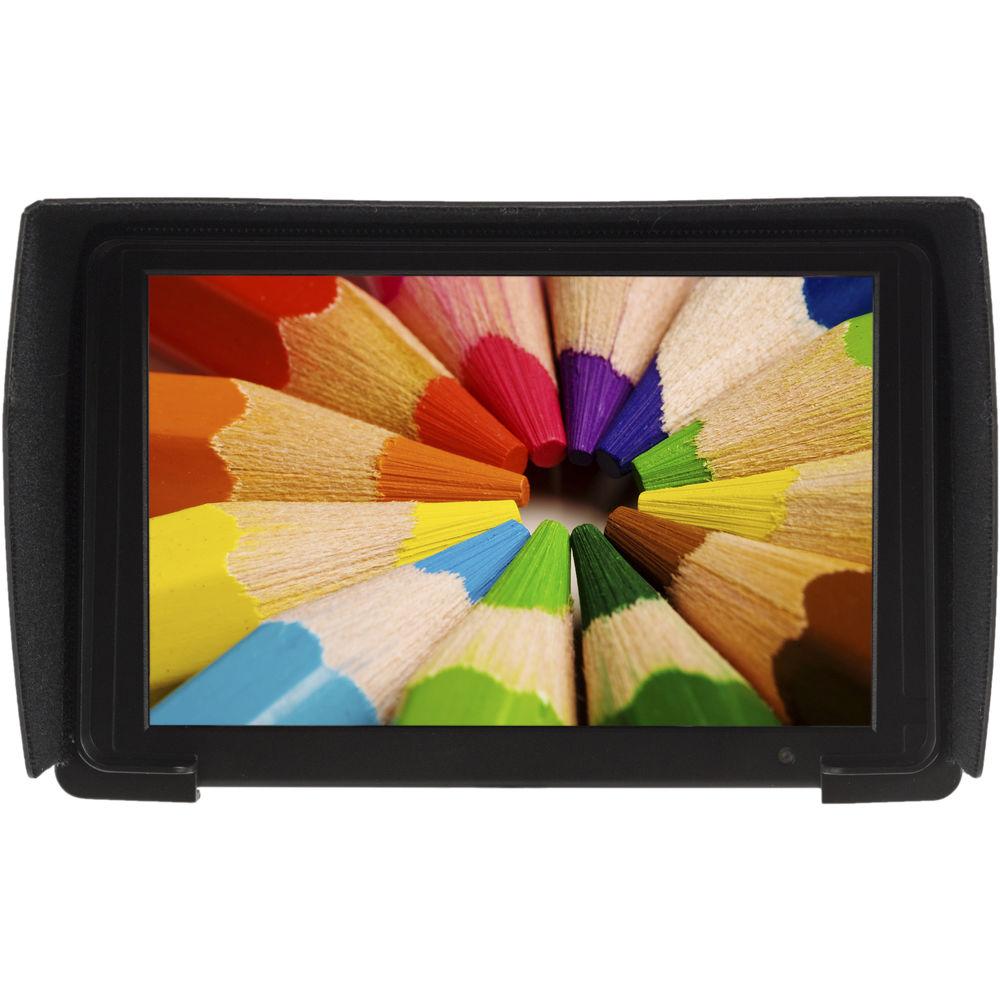

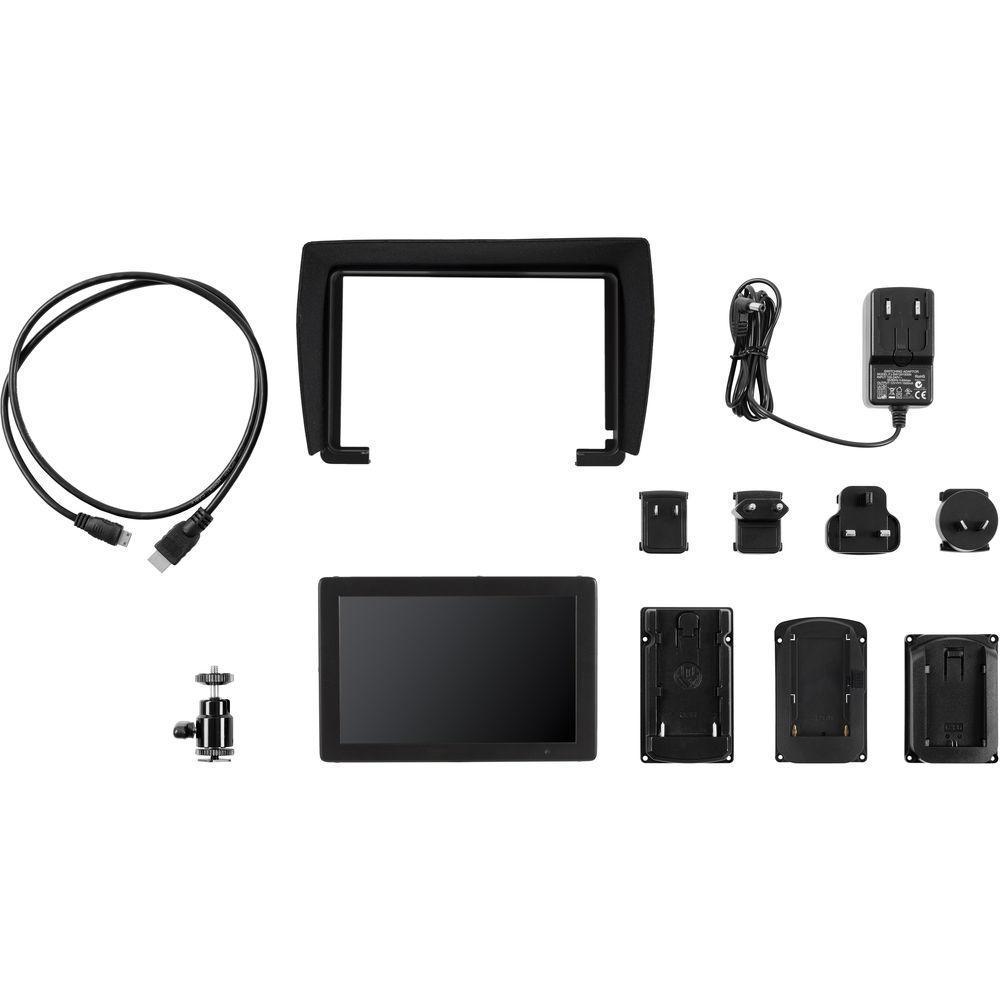

In the Box Avtec XFD070 7" On-Camera Monitor Sun Hood AC Adapter (US, UK, EU, and AU plugs) NP-F (L-Series) Battery Bracket BP-U Battery Bracket LP-E6 Battery Bracket Shoe Mount Ball Head MIni-HDMI to HDMI Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avtec XFD070 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvtec AVT-XFD070 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° (80/80)
Vertical: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Pixels Per Inch (ppi) | 322 ppi | | Real-Time LUT Monitoring | No | | Image Controls | Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Zebra | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Input

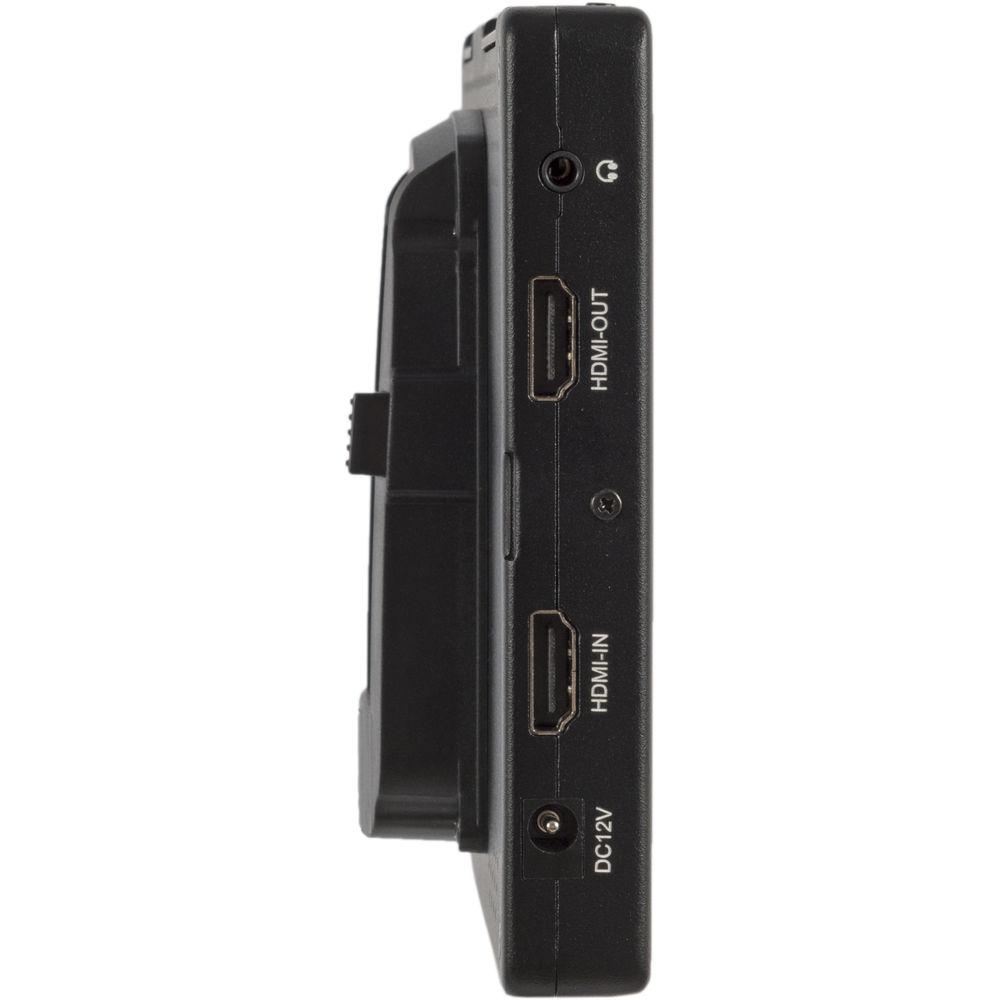

1 x HDMI Type A (HDMI 1.4b) Output | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | 1 x USB 2.0 (USB Type-B) | | Card Slot | None | | | | Video Format | HDMI
DCI 4K
UHD 4K
1080p
1080i
720p
576p
480p
NTSC
PAL | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 7.4 to 24 VDC | | Battery Type | 1 x LP-E6, L-Series, or BP-U | | Power Consumption | 8 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 7.09 x 4.72 x 0.71" / 18 x 12 x 1.8 cm | | Weight | 0.77 lb / 350 g, Including Battery Plate | | | | Package Weight | 2.575 lb | | Box Dimensions (LxWxH) | 8.6 x 7.4 x 3.4" |
