Product description

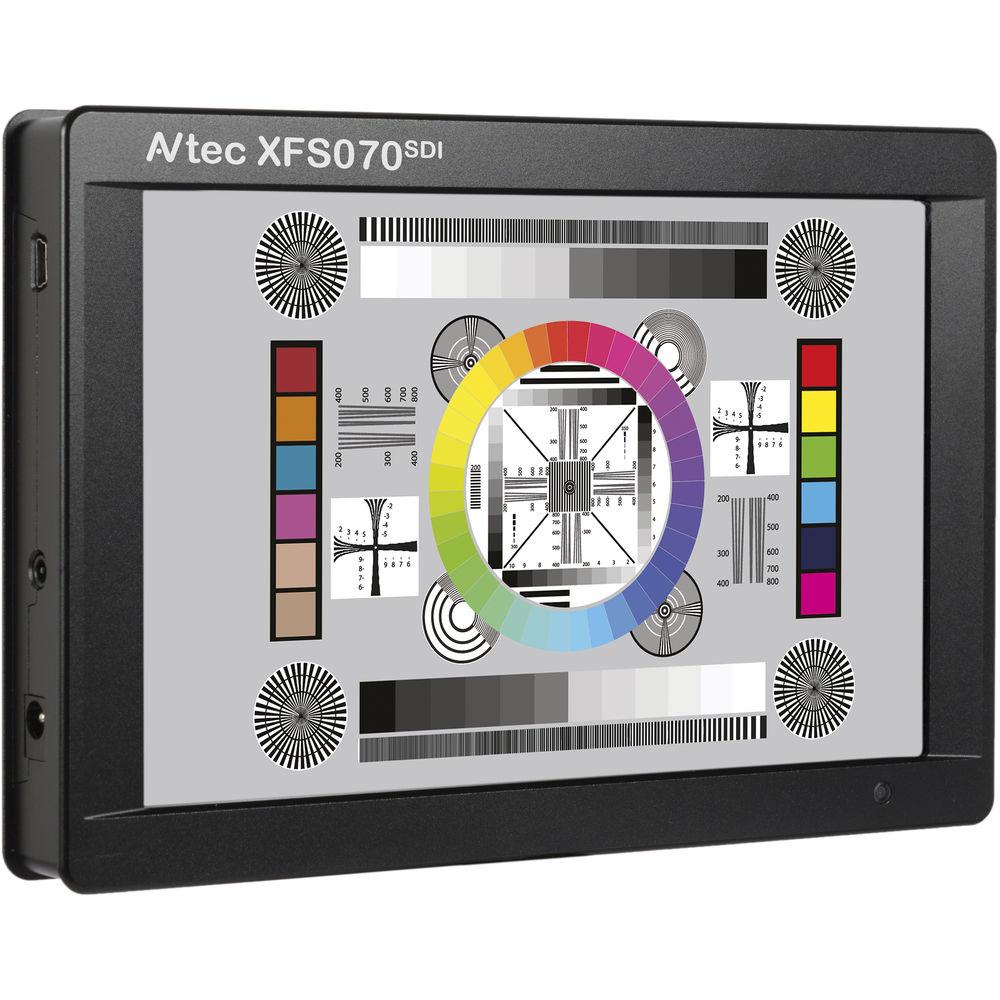

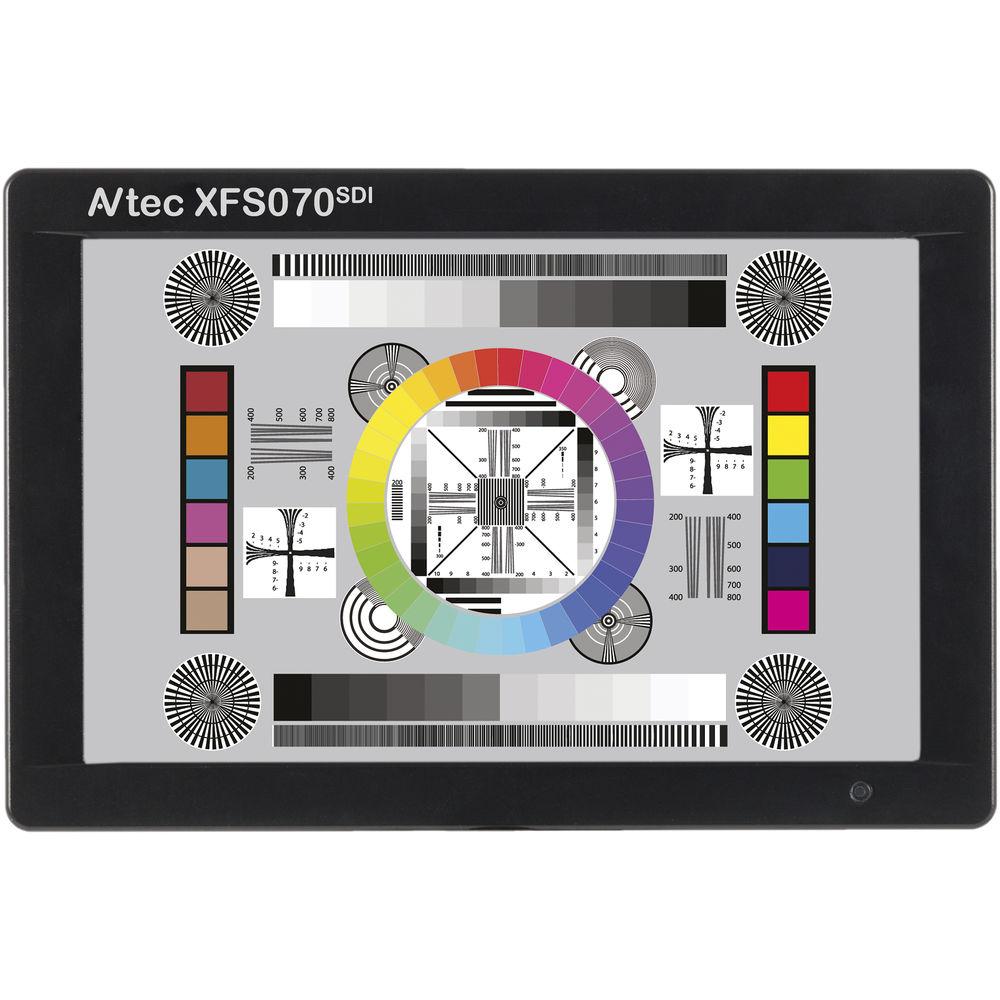

The Avtec XFD070SDI 7" On-Camera Monitor can help you compose your video recordings with its 1920 x 1080 IPS LCD display. Resolutions up to UHD 4K are accepted via the HDMI input and passed through via the HDMI output to an external recorder, switcher, or other video device. Monitoring tools including zebras, false color, focus peaking, and pixel-to-pixel mapping ensure that your image is exposed correctly and in focus. While the screen is bright at 450 cd/m², a removable folding sun hood is included for blocking excess glare.For power, the XFD070SDI has plates for NP-F (Sony L-series), BP-U, and LP-E6 batteries. Install the one you wish to use for powering. Three 1/4"-20 threads are available for securing the monitor to your rig. A shoe mount ball head, international power supply, and Mini-HDMI to HDMI cable are included as well.
  • 7" IPS LCD panel
  • 1920 x 1080 screen resolution
  • UHD 4K resolution support
  • Speaker and headphone jack for audio monitoring
  • USB port for firmware upgrades
  • Includes NP-F (Sony L-Series), BP-U, and LP-E6 battery plates
  • International power supply with US, UK, EU, and AU plugs

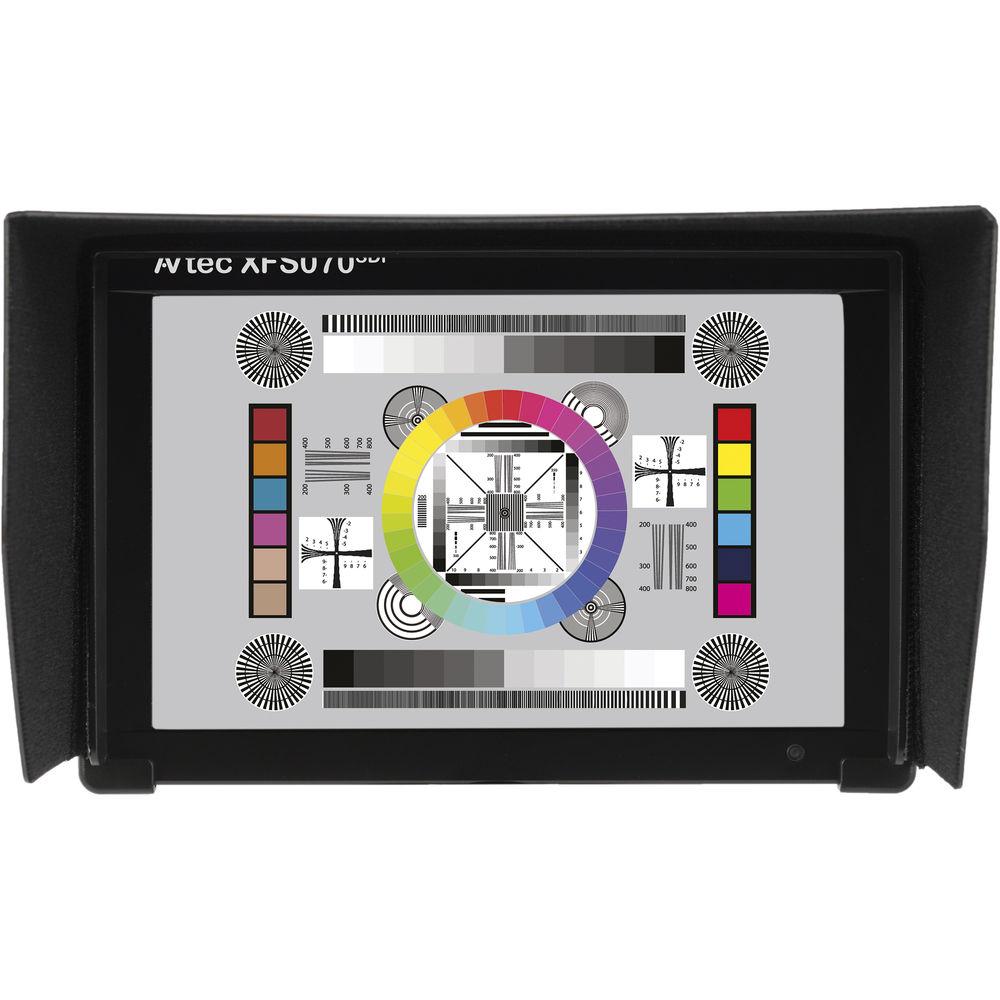

  • Detachable and foldable sun hood
  • Two assignable function buttons
  • Focus assist, center marker, title safe, and check field
  • Image freeze, center marker, and pixel-to-pixel scaling
  • Histogram, exposure zebras, and false color
  • On-screen embedded audio monitoring
  • Image zoom, nine-grid zoom, and anamorphic de-squeeze
  • Brightness, contrast, tint, saturation, and color temperature adjustments

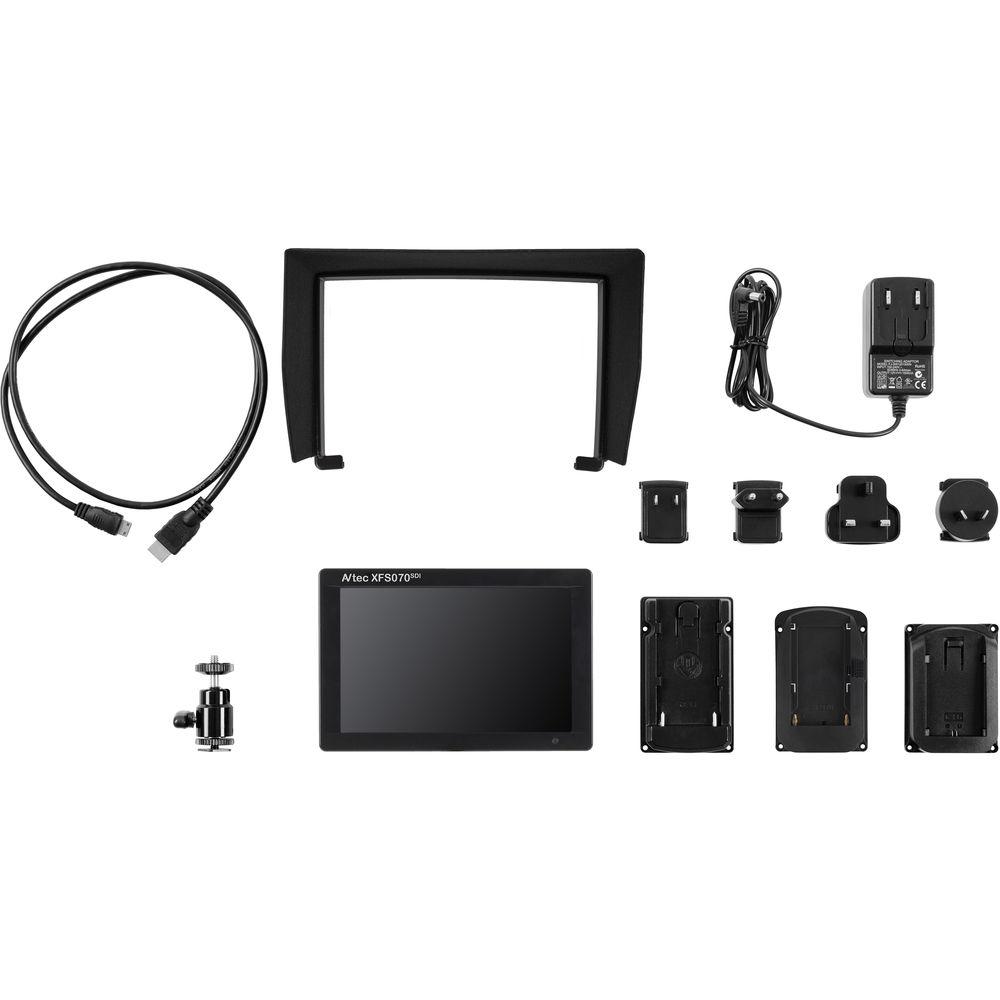

In the Box Avtec XFD070SDI 7" On-Camera Monitor

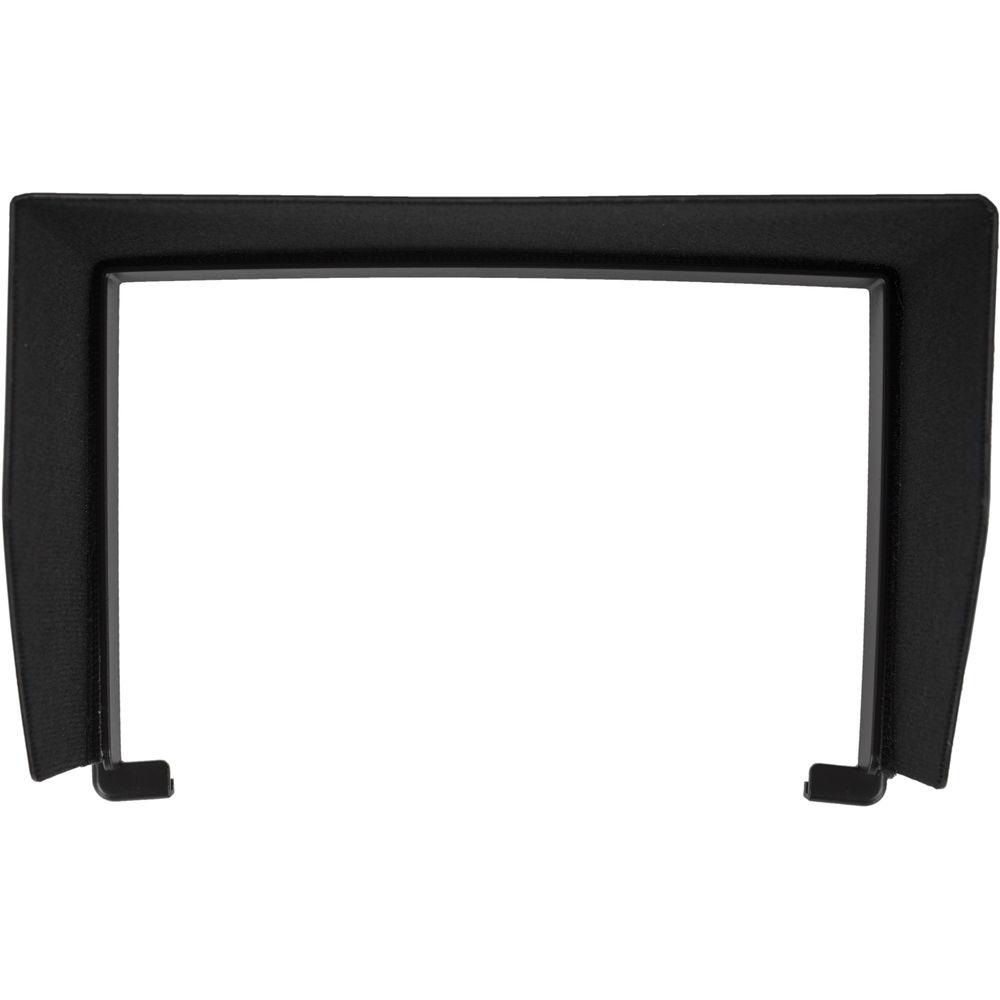

  • Sun Hood
  • AC Adapter (US, UK, EU, and AU plugs)
  • NP-F (L-Series) Battery Bracket
  • BP-U Battery Bracket
  • LP-E6 Battery Bracket
  • Shoe Mount Ball Head
  • MIni-HDMI to HDMI Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Avtec XFD070SDI 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Avtec AVT-XFS070SDI Specs

    Panel Type IPS-Type LCD
    Display Size 7.0" / 17.8 cm
    Screen Resolution 1920 x 1080
    Aspect Ratio 16:9
    Viewing Angle Horizontal: 160° (80/80)
    Vertical: 160° (80/80)
    Touchscreen No
    Maximum Brightness 450 cd/m2
    Contrast Ratio 1200:1
    Dot Pitch 0.07875 x 0.07875 mm
    Pixels Per Inch (ppi) 322 ppi
    Real-Time LUT Monitoring No
    Image Controls Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, Screen Markers, Zebra

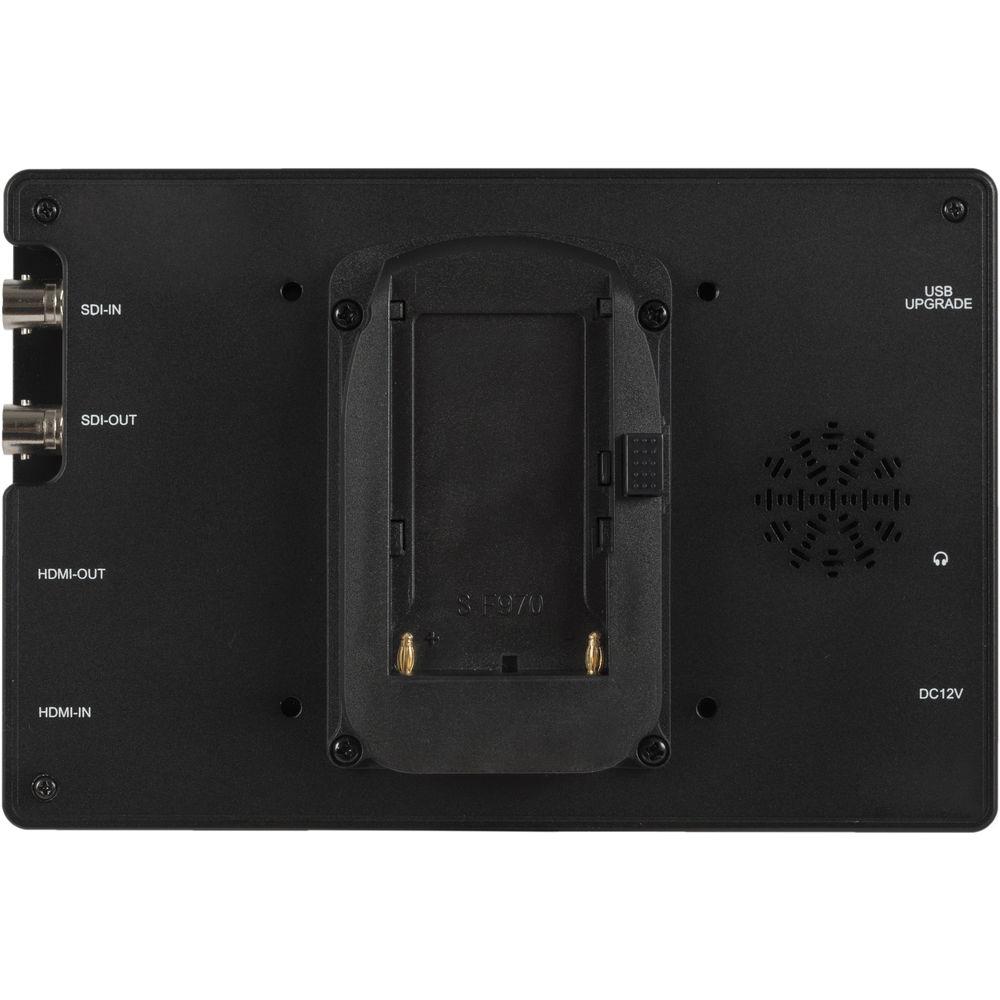

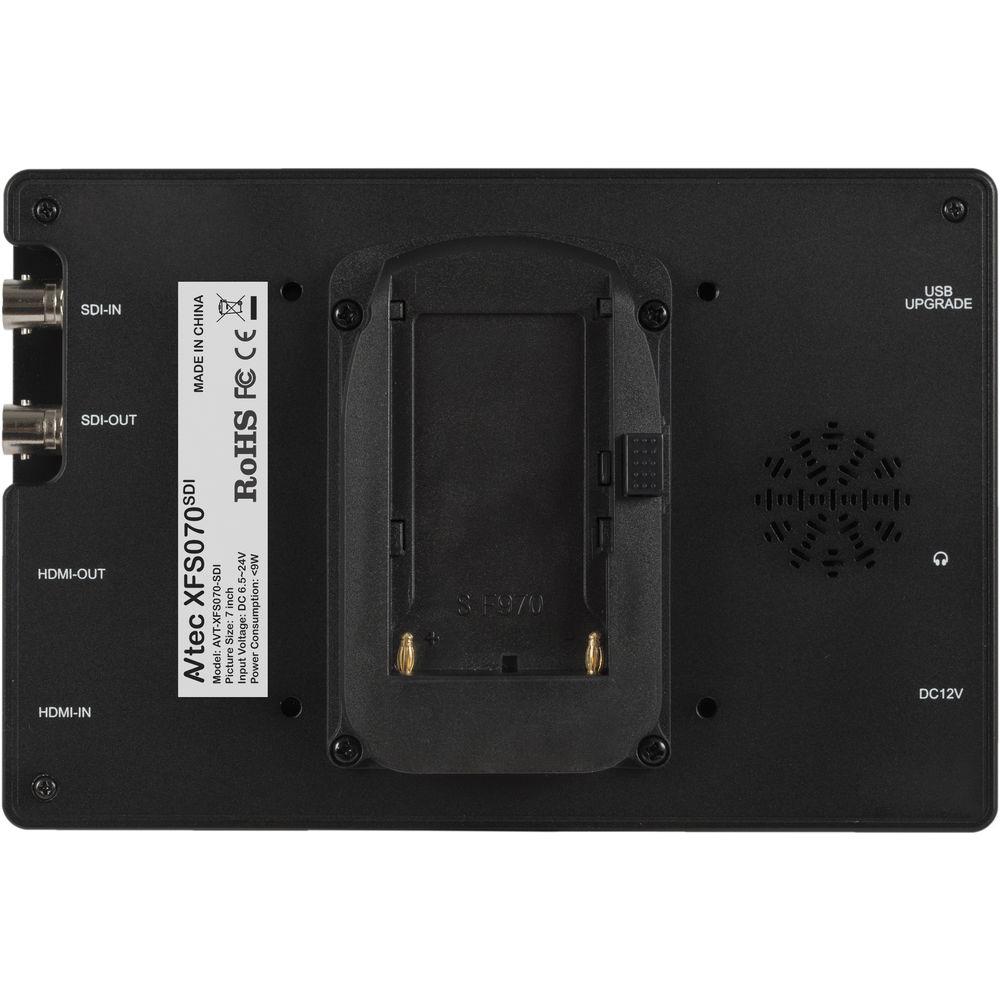

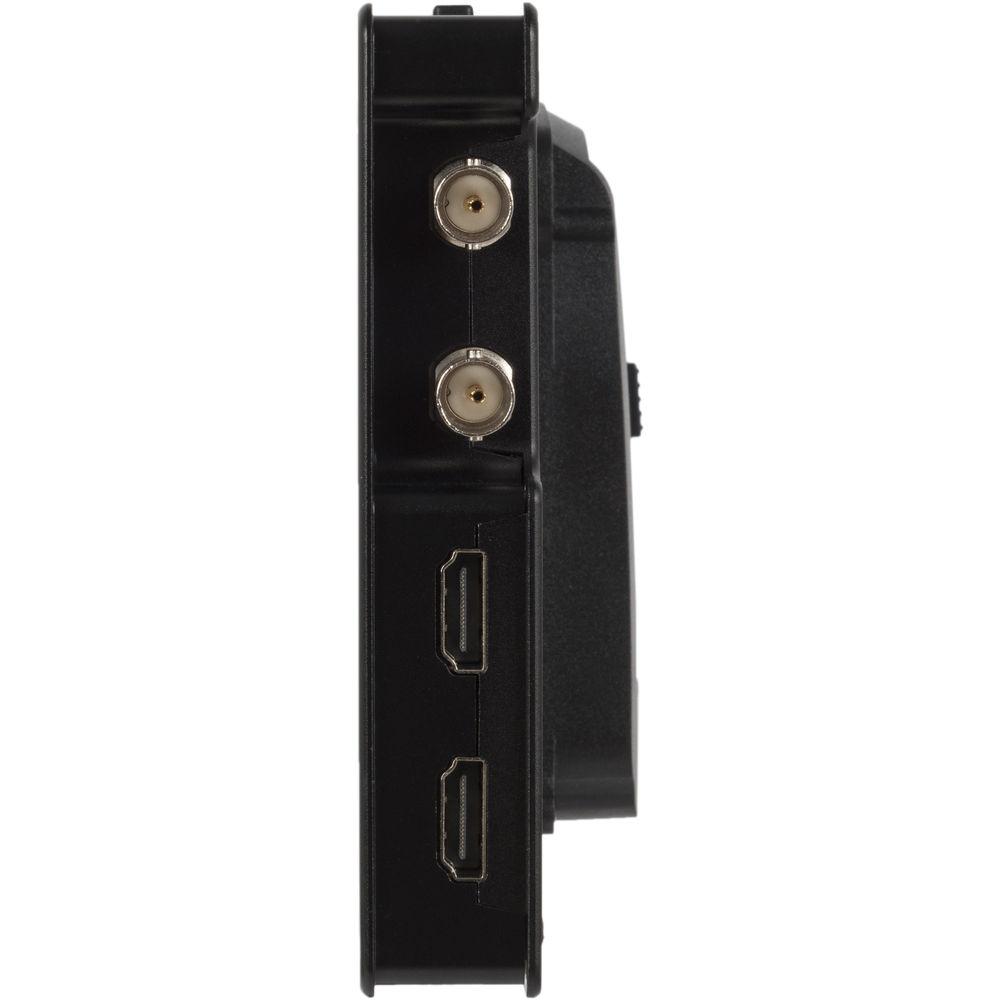

    Video 1 x HDMI Type A (HDMI 1.4b) Input
    1 x BNC (SDI) Input
    1 x HDMI Type A (HDMI 1.4b) Output
    1 x BNC (SDI) Output
    Embedded Audio HDMI
    SDI

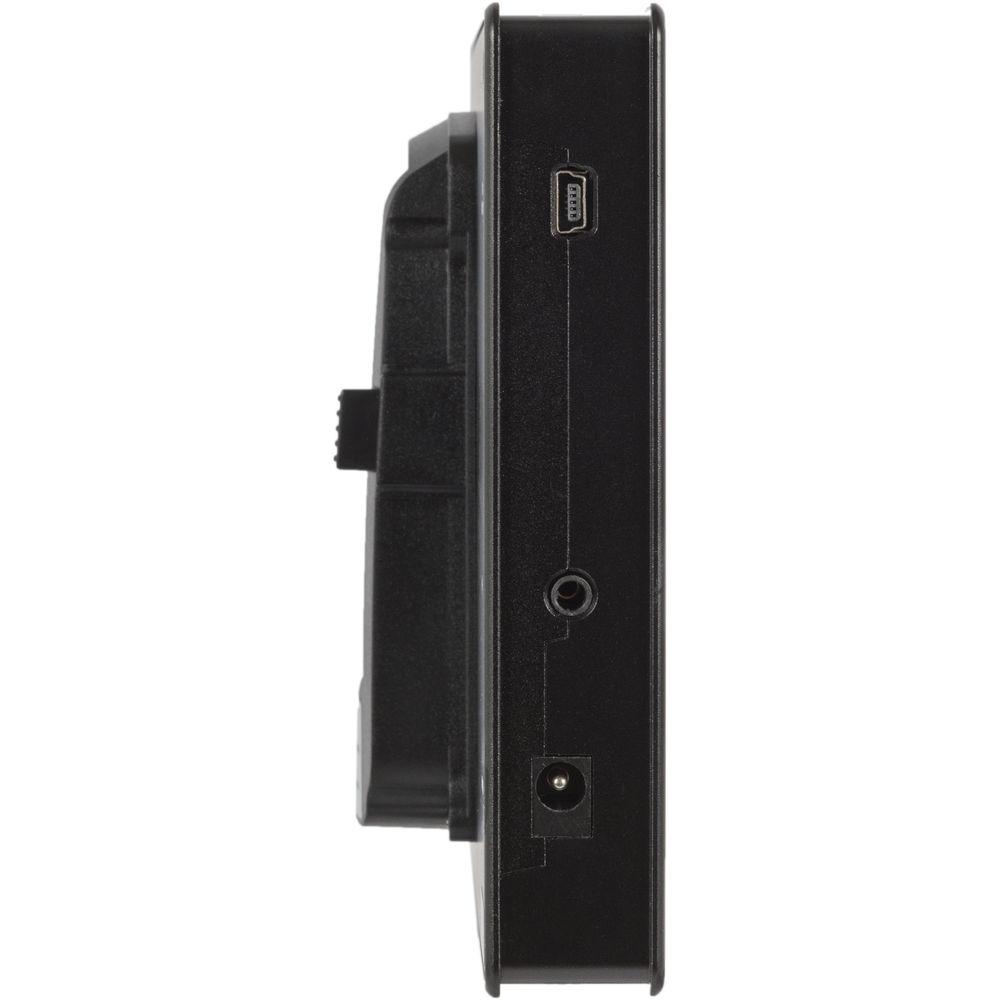

    Audio 1 x 3.5 mm Headphone Output
    Built-In Speaker 1
    Power 1 x Barrel Input
    Other I/O 1 x USB 2.0 (USB Type-B)
    Card Slot None
    Video Format HDMI
    DCI 4K
    UHD 4K
    1080p
    1080i
    720p
    576p
    480p
    NTSC
    PAL
    SDI
    1080p
    1080i
    720p
    NTSC
    PAL
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    DC Input Power 7.4 to 24 VDC
    Battery Type 1 x LP-E6, L-Series, or BP-U
    Power Consumption 8 W (Maximum)
    Mounting 3 x 1/4"-20 Female
    Operating Temperature -4 to 131°F / -20 to 55°C
    Storage Temperature -22 to 149°F / -30 to 65°C
    Dimensions (W x H x D) 7.09 x 4.72 x 0.71" / 18 x 12 x 1.8 cm
    Weight 0.77 lb / 350 g, Including Battery Plate
    Package Weight 2.8 lb
    Box Dimensions (LxWxH) 8.4 x 7.4 x 3.3"
