Product description

The AVtec XHD070 7" HDMI Monitor features an ultra-thin, lightweight design and a 1280 x 800 resolution IPS display. It offers HDMI and A/V camera inputs and supports up to 1080p resolution signals, and has a built-in speaker and headphone output for monitoring audio. It also has a store of monitoring functions, including focus assist and pixel-to-pixel mapping. These functions can be accessed via the menu or assigned among four function buttons on the front panel.

The XHD070 comes with a variety of accessories, including a sunhood, three different battery plates, and a camera-top ball head, providing for a more comprehensive workflow right out of the box. Note: A battery is not included. An NP-F, BP-U, or LP-E6 battery is required for battery-operated power.
    Key Features
    • Ultra-thin, lightweight design
    • 1280 x 800 resolution IPS display
    • HDMI and A/V camera inputs
    • Supports up to 1080p resolution signals
    • Built-in speaker
    • Headphone output
    • Four assignable function buttons
    • Includes sunhood, ballhead, and three battery plates
    • On-screen multilingual menu
    • 16:9, 4:3, Panorama, and Automatic aspect ratios
    Monitoring Functions
    • Focus Assist
    • Center Marker
    • Safe Frame
    • Check Field
    • Camera Mode
    • Aspect Ratio
    • Image Flip
    • Pixel-to-Pixel
    • Image Freeze

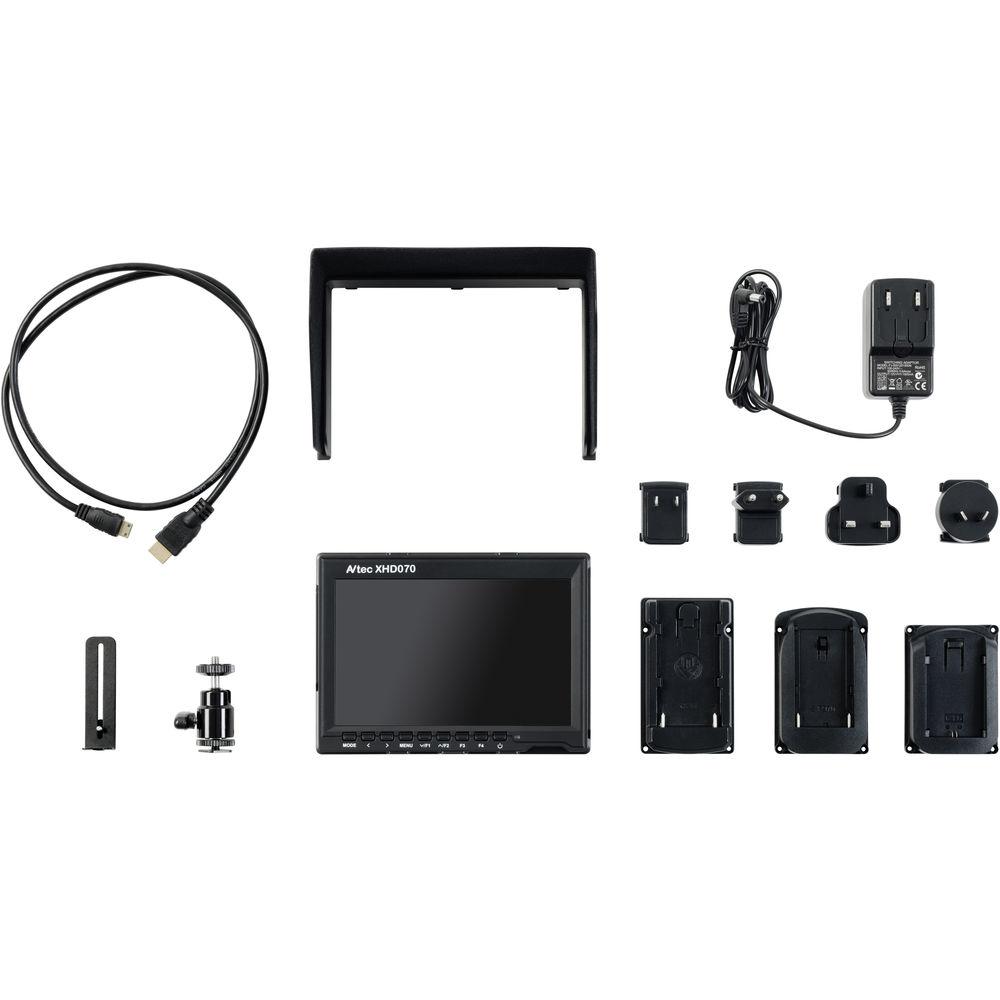

In the Box Avtec XHD070 7" On-Camera HDMI IPS Monitor
  • Battery Plate for Sony NP-F Batteries
  • Battery Plate for Sony BP-U Batteries
  • Battery Plate for Canon LP-E6 Batteries
  • AC/DC Power Adapter with EU, US, UK, and AU Plug Adapters
  • Sun Hood
  • Shoe Mount Ball Head with 1/4"-20 Camera Screw
  • HDMI to HDMI Mini Cable
  • HDMI Cable Clamp
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Avtec XHD070 7" On-Camera HDMI IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Avtec AVT-XHD070 Specs

    Display LED-backlit IPS LCD 7" (18 cm)
    Resolution 1280 x 800
    Dot Pitch 0.11775 (W) x 0.11775 (H)
    Aspect Ratio 16:9
    Brightness 400 cd/m2
    Contrast Ratio 800:1
    Response Time 25 ms
    Viewing Angle 178° - 89/89/89/89° (Left/Right/Up/Down)
    Input Signal 1 x HDMI type A
    1 x A/V
    Color System NTSC 3.58 / PAL 4.43
    Supported Resolutions 1080p60/59.94/50/30/29.97/25/24/24/23.98/23.98 fps

    1080i60/59.94/50

    720p60/59.94/50/30/29/25/24/23.98

    576p/i

    480p/i
    Speaker Built-in on the rear
    Headphone Output Stereo 3.5 mm
    Input Voltage 7.4 to 35 VDC
    Mount Type 1/4"-20 threaded hole on the bottom
    Power Consumption ≦ 5W
    Operating Temperature -4 to 122°F (-20 to 50°C)
    Storage Temperature -22 to 140°F (-30 to 60°C)
    Dimensions 7 x 5 x 0.7" (17.5 x 13 x 1.7 cm)
    7 x 5 x 1.7" (18 x 13 x 4.3 cm) (including sun hood)
    Weight 0.64 lb (290 g)
    Package Weight 2.475 lb
    Box Dimensions (LxWxH) 8.75 x 7.55 x 3.25"
