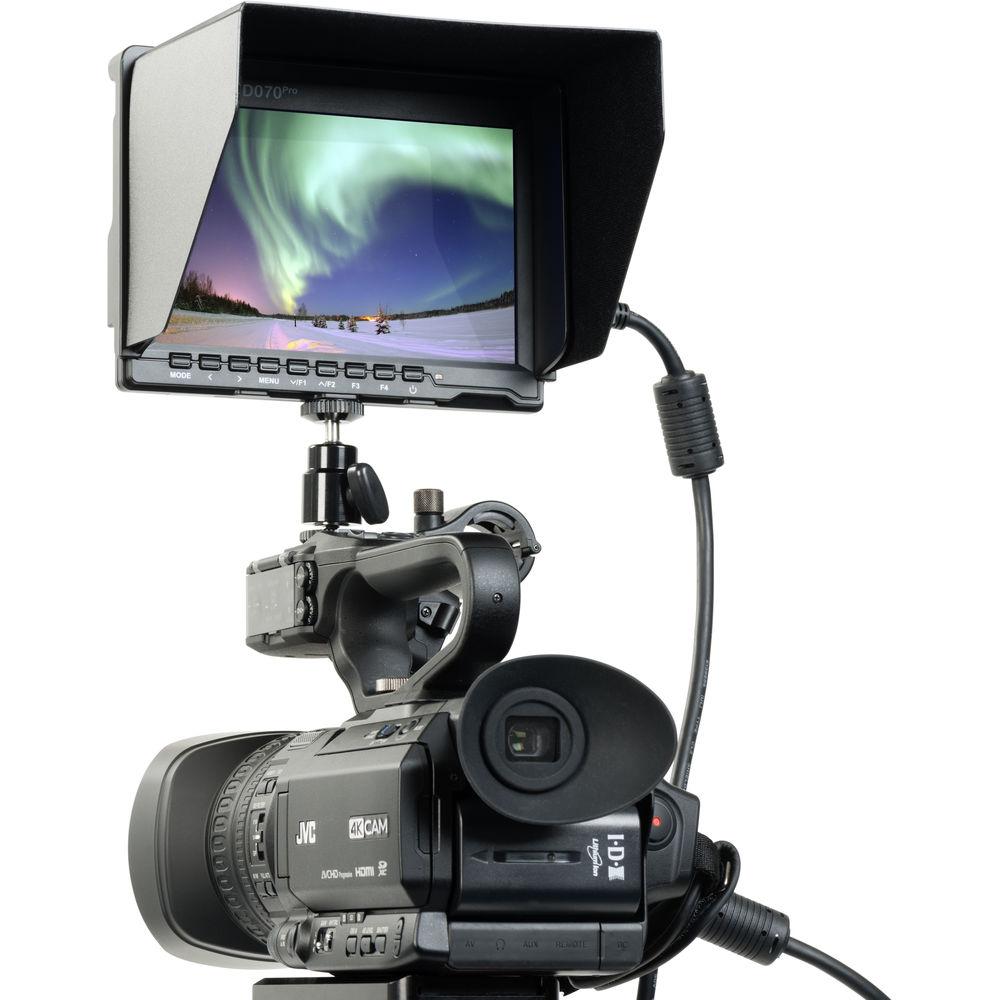

Product description The AVtec XHD070Pro 7" HDMI Monitor features an ultra-thin, lightweight design and a 1280 x 800 resolution IPS display. It offers HDMI and A/V camera inputs and supports up to 1080p resolution signals, and has a built-in speaker and headphone output for monitoring audio. It also has a store of monitoring functions, including histogram, false colors, exposure zebras, focus assist, and pixel-to-pixel mapping. These functions can be accessed via the menu or assigned among four function buttons on the front panel.
The XHD070Pro comes with a variety of accessories, including a sunhood, three different battery plates, and a camera-top ball head, providing for a more comprehensive workflow right out of the box. Note: A battery is not included. An NP-F, BP-U, or LP-E6 battery is required for battery-operated power. - Key Features
-
- Ultra-thin, lightweight design
- 1280 x 800 resolution IPS display
- HDMI and A/V camera inputs
- Supports up to 1080p resolution signals
- Built-in speaker
- Headphone output
- Four assignable function buttons
- Includes sunhood, ballhead, and three battery plates
- On-screen multilingual menu
- 16:9, 4:3, Panorama, and Automatic aspect ratios
- Monitoring Functions
-
- Histogram
- False Colors
- Exposure (Zebras)
- Focus Assist
- Center Marker
- Safe Frame
- Check Field
- Camera Mode
- Aspect Ratio
- Image Flip
- Pixel-to-Pixel
- Image Freeze

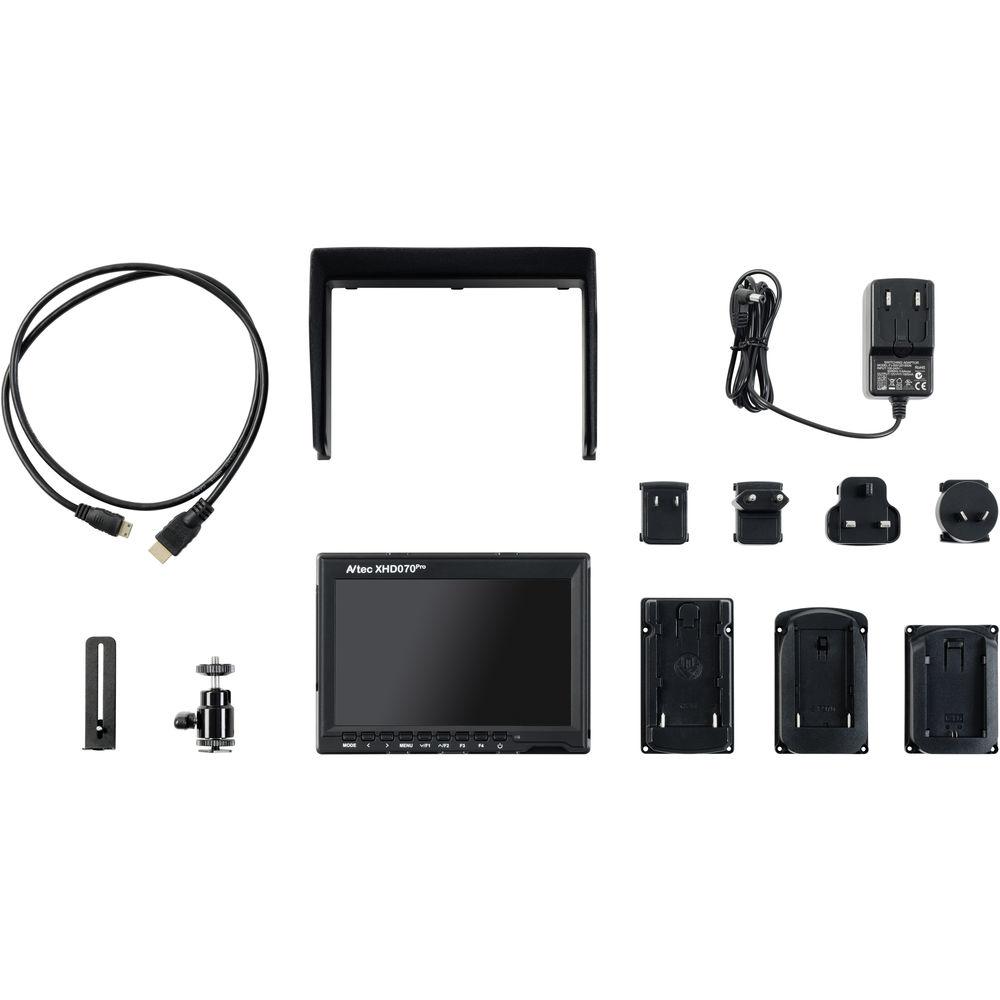

In the Box Avtec XHD070Pro 7" On-Camera HDMI IPS Monitor Battery Plate for Sony NP-F Batteries Battery Plate for Sony BP-U Batteries Battery Plate for Canon LP-E6 Batteries AC/DC Power Adapter with EU, US, UK, and AU Plug Adapters Sun Hood Shoe Mount Ball Head with 1/4"-20 Camera Screw HDMI to HDMI Mini Cable HDMI Cable Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Avtec XHD070Pro 7" On-Camera HDMI IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAvtec AVT-XHD070-PRO Specs | Display | LED-backlit IPS LCD 7" (18 cm) | | Resolution | 1280 x 800 | | Dot Pitch | 0.11775 (W) x 0.11775 (H) | | Aspect Ratio | 16:9 | | Brightness | 400 cd/m2 | | Contrast Ratio | 800:1 | | Response Time | 25 ms | | Viewing Angle | 178° - 89/89/89/89° (Left/Right/Up/Down) | | Input Signal | 1 x HDMI type A
1 x A/V | | Color System | NTSC 3.58 / PAL 4.43 | | Supported Resolutions | 1080p60/59.94/50/30/29.97/25/24/24/23.98/23.98 fps
1080i60/59.94/50
720p60/59.94/50/30/29/25/24/23.98
576p/i
480p/i | | Speaker | Built-in on the rear | | Headphone Output | Stereo 3.5 mm | | Input Voltage | 7.4 to 35 VDC | | Mount Type | 1/4"-20 threaded hole on the bottom | | Power Consumption | ≦ 5W | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Dimensions | 7 x 5 x 0.7" (17.5 x 13 x 1.7 cm)
7 x 5 x 1.7" (18 x 13 x 4.3 cm) (including sun hood) | | Weight | 0.64 lb (290 g) | | | | Package Weight | 2.465 lb | | Box Dimensions (LxWxH) | 8.7 x 7.6 x 3.35" |
