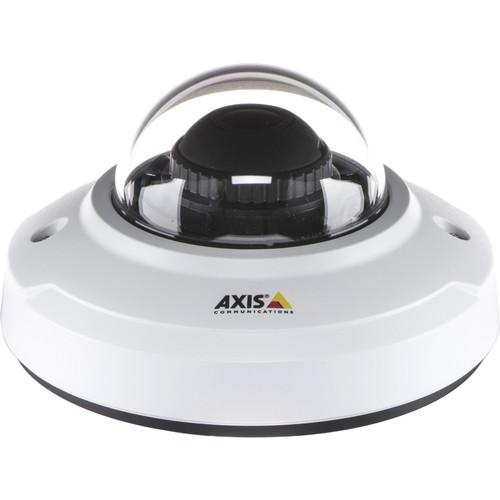

User Manual for Axis Communications 2MP Companion WV Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Axis Communications 2MP Companion WV Network
- Product category: Wired IP Cameras Axis Communications
- Brand: Axis Communications
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Axis Communications Wired IP Cameras
|
User manual for the Axis Communications 2MP Companion WV Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Axis Communications product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Axis Communications user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Axis Communications product will considerably shorten its lifespan!
|
Product description The 2MP Companion WV Network Dome Camera from Axis Communications has a 1/3" progressive scan RGB CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. The 2.8mm fixed lens delivers a 106° horizontal field of view. A 64GB Axis Companion microSDXC card is included for edge storage. This dual-band camera has an HDMI output for connection to monitors.
Axis Zipstream technology compresses video footage in H.264, reducing bandwidth usage and storage requirements. In addition, video can be streamed in multiple individual streams, and bandwidth and frame rates are controllable for further customization of your network. Once configured, your surveillance network is secured with a host of safety features, including password protection, network access control, digest authentication, Axis Secure Remote Access, SD card encryption, and Wi-Fi Protected Setup with push button configuration.
This camera is IP42-rated for water and dust protection. Additionally, it is also IK08-rated for vandal resistance. This camera is supported by the Axis Companion VMS and free app for iOS & Android mobile devices. - Wireless communication with support for IEEE 802.11a/b/g/n
- Connects over 802.11a/b/g/n WLAN or wired Ethernet
- 2.4 and 5 GHz Wi-Fi connectivity
- Wi-Fi Protected Setup (WPS) with push button configuration (PBC)
- H.264 and MJPEG compression
- Multiple, individually configurable streams in H.264 and MJPEG formatting
- Controllable frame rate and bandwidth (VBR/MBR H.264)
- Connectors include RJ45, micro-USB for DC power, and HDMI type D
- Camera pivots ±177° horizontally, and ±69° vertically
- Image settings include compression, color, brightness, sharpness, contrast, white balance, exposure control, WDR, text and image overlay, mirroring of images, and 0, 90, 180, 270° of rotation, including corridor format
- Supported by AXIS Companion VMS and free mobile app for iOS and Android devices
In the Box Axis Communications 2MP Companion WV Network Dome Camera Power Supply 64GB Axis Companion microSDXC Card Windows Decoder 1-User License Torx-L Key Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications 2MP Companion WV Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications Dome WV Specs | | | Sensor | 2 MP 1/3" CMOS | | Lens Mount | M12 | | Focal Length | 2.8mm | | Maximum Aperture | f/2 | | Lens Field of View | Horizontal: 106°
Vertical: 59° | | Minimum Illumination | Color: 0.25 Lux | | Shutter Speed | 1/32500 to 1/5 Seconds | | Camera Angle Adjustment | Horizontal: -177 to 177°
Vertical: -69 to 69° | | | | Streaming Resolution | 1920 x 1080 at 25/30/50/60 fps
1280 x 720 at 25/30/50/60 fps | | Supported Video Compression | H.264, MJPEG | | | | Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, RTCP, RTP, RTSP, SOCKS, SSL/TLS, TCP, UDP, UPnP | | | | Analytics | AXIS Video Motion Detection 3 | | Event Trigger | Yes | | Event Action | Recording, Alarm | | Built-In Installation Aids | Pixel counter | | | | Memory | 512 MB RAM / 256 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | AXIS Companion | | Supported Languages | English
French
German
Italian
Japanese
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese | | Internal Storage | None | | External Storage Options | None | | Power Source | DC 4.8-5.2 VDC | | Power Consumption | DC: 2.7 W | | Material of Construction | Polymer | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 15 to 85% | | IP Rating | IP42 | | IK Rating | IK08 | | Dimensions |
