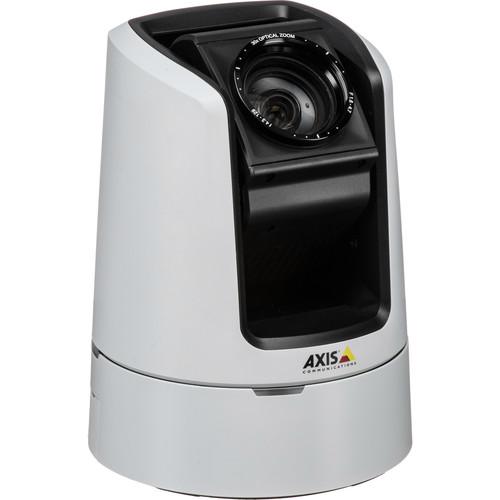

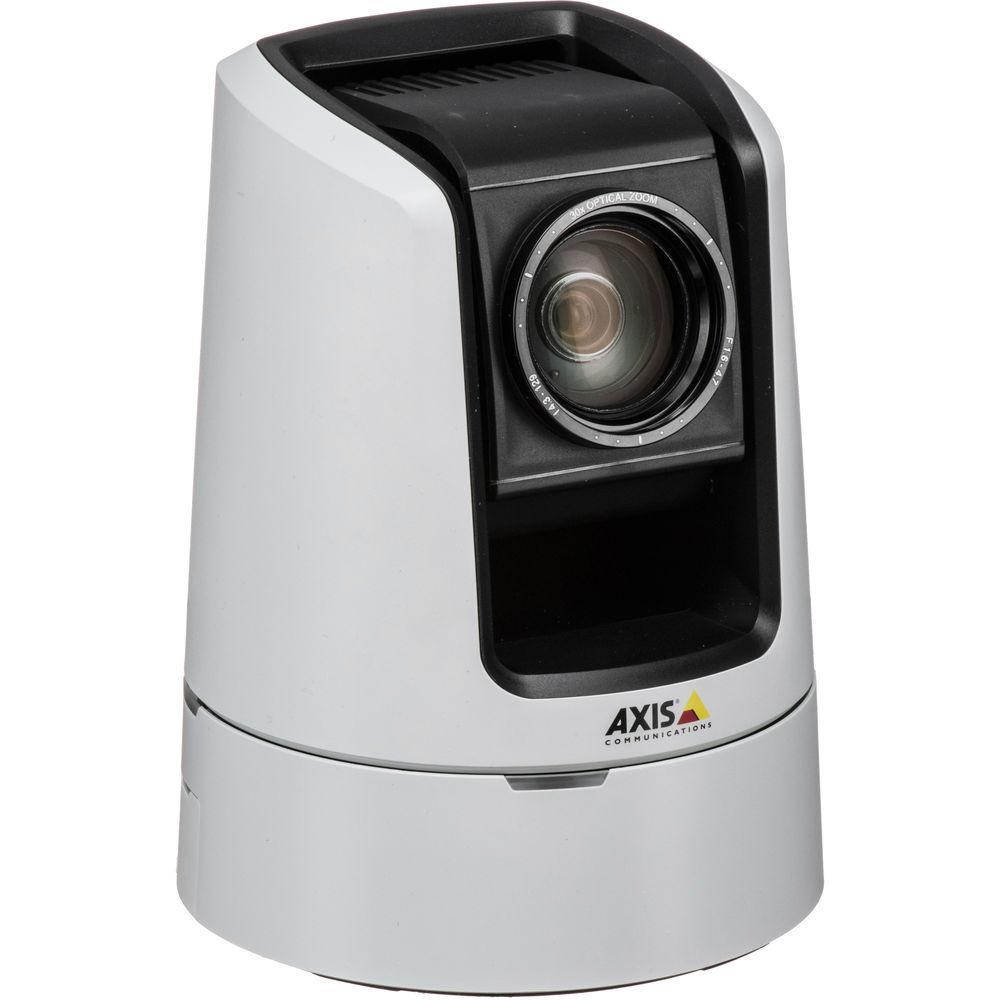

Product description Designed for use in a myriad of applications, the Axis V5914 PTZ Network Camera from Axis features 720p video resolution and can also stream audio. The 4.3 to 129mm lens creates a 58.3° horizontal angle of view for capturing a large area, while the 30x optical zoom allows you to hone in on a specific point. The pan and tilt adjustments can be monitored from the camera's web apps and are sensitive enough to allow the camera to be used for filming fast-moving scenarios like sporting events or live productions. The camera's audio connectors can be used to add microphone and speaker capabilities for recording speeches or for use as a webcam. SDI and HDMI connectors allow for easy hook ups to live production systems and monitors.
The camera's open API allows the camera to be integrated into an already existing system, and the SD card slot, which accepts cards up to 64GB in capacity, allows you to save your recordings. A Windows Decoder license is included for quick computer installation and start-up identification. In the Box Axis Communications Axis V5914 PTZ Network Camera (720p) Power Supply Wall/Ceiling Mount Terminal Connector for I/O Windows Decoder License Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Axis Communications Axis V5914 PTZ Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAxis Communications V5914 Specs | | | Image Sensor | 1/3" Progressive scan RGB CMOS | | Lens | 4.3 to 129 mm f/1.6 to 4.7 with autofocus and P-iris control | | Horizontal Angle of View | 58.3 to 2.1° | | Day & Night | Automatically removable infrared-cut filter | | Minimum Illumination | Color: 0.6 lux at 30 IRE f/1.6
B/W: 0.03 lux at 30 IRE f/1.6 | | Shutter Time | 1/10,000 to 1 sec | | Adjustments | Pan: ±170°, 0.2 to 100°/s
Tilt:-20 to 90°, 0.2 to 90°/s
Zoom: 30x optical, 12x digital, 360x total
256 presets positions, control queue, on-screen directional indicator, adjustable zoom speed | | | | Video Compression | H.264 High, Baseline and Main profile (MPEG-4 Part 10/AVC), Motion JPEG | | Resolutions | 1280 x 720 | | Frame Rate | Up to 50/60 fps | | Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth, VBR/MBR H.264, HDMI, 3G-SDI | | Image Settings | 120 dB WDR-Dynamic Capture, Compression, Color, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Defogging, Noise reduction, Electronic image stabilization, Text and image overlay (over ethernet)
Rotation: 0°, 180° | | | | Streaming | Two-way, Stereo | | Audio Compression | SDI: AES3 24 bit, 48 kHz
HDMI: LPCM
Network: AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, Configurable bit rate | | Power | XLR Balanced Mono Input: 48 V

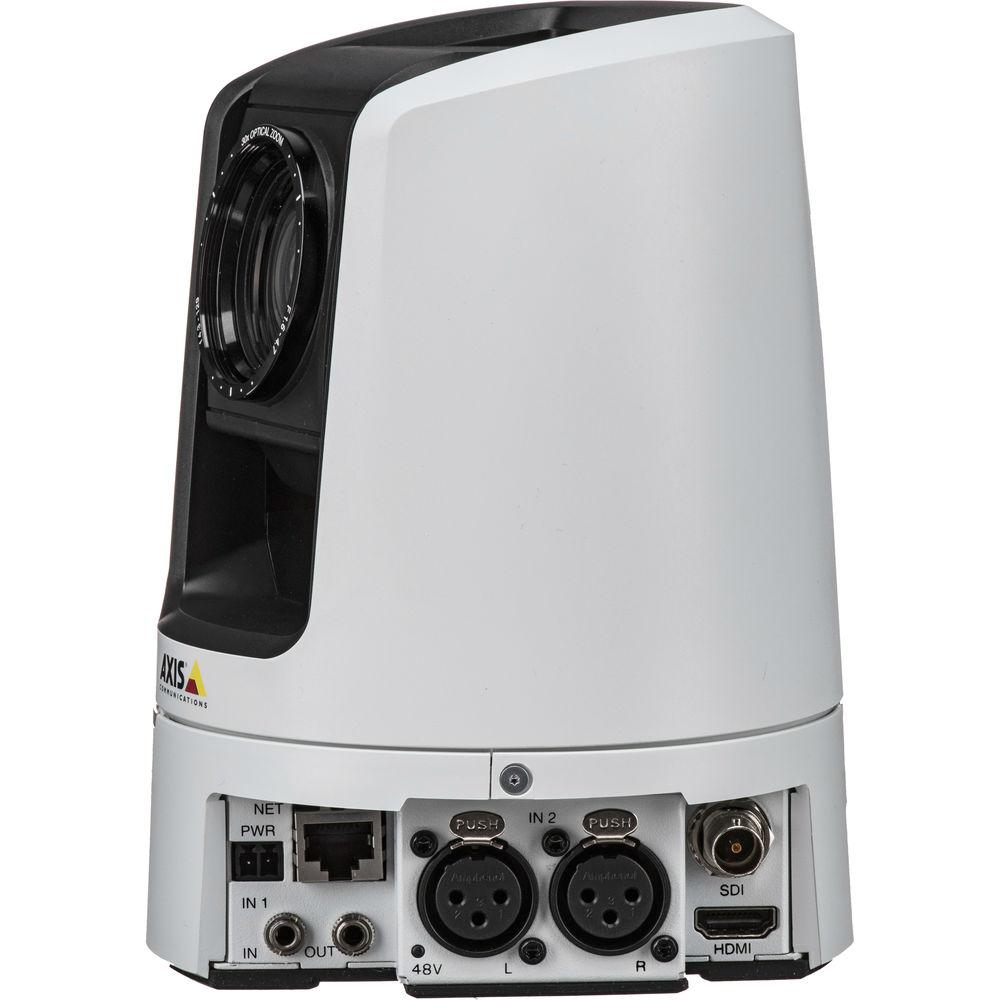

3.5mm Unbalanced Stereo Inputs: 5 V via 2.2 kOhm | | Connectors | RJ45 10 Base-T/100Base-TX
Terminal block for 2 configurable alarm input/output
3.5mm stereo mic/line in
3.5mm stereo line out
XLR-3 (L+R) mic/line in (with 48 V phantom power)
HDMI Type A
BNC for SDI
Terminal block for DC power | | Input Level | XLR Balanced Mono Inputs: 4.4 Vrms
3.5mm Unbalanced Stereo Inputs: 2.2 Vrms | | Bandwidth | 20 Hz to 20 kHz | | THD + Noise | <0.03% | | Signal to Noise Ratio (SNR) | XLR Balanced Mono Input: >85 dB @ 0 dB gain, >78 dB @ 30 dB gain
3.5mm Unbalanced Stereo Inputs: >87 dB @ 0 dB gain, >83 dB @ 30 dB gain
HDMI Outputs: >87 dB @ 0 dB gain, >83 dB @ 30 dB gain
3.5mm Unbalanced Stereo Outputs: >87 dB | | Output Impedance | <100 ohms | | | | Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management | | Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4, SDI | | Memory | 1 GB RAM, 512 MB Flash | | Power | 8 to 28 VDC, typical 12 W (max 21 W) | | Storage | SD/SDHC/SDXC slot supporting memory card up to 64 GB | | Operating Temperature & Humidity | 32 to 104°F / 0 to 40°C, 10 to 85% RH (non-condensing) | | Storage Temperature & Humidity | -4 to 140°F / -20 to 60°C, 10 to 85% RH (non-condensing) | | Dimensions | 7.1 x 5.4 x 5.4" / 18.0 x 13.7 x 13.7 cm | | Weight | 3.3 lb / 1.5 kg | | | | Package Weight | 6.065 lb | | Box Dimensions (LxWxH) | 14.95 x 8.85 x 8.05" |
